    Schaeffler INA

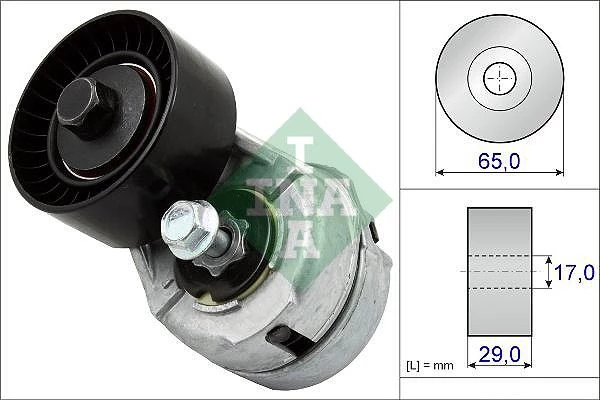

    Outer diameter (mm) 65
    Width (mm) 29
    Svhc no svhc present!
    Product number: 534 0109 20

    Ina Belt Tensioner V-ribbed Belt For Alfa Romeo Fiat Lancia 145 146 147 155 156

    Price excl. vat.
    £ 26,61

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

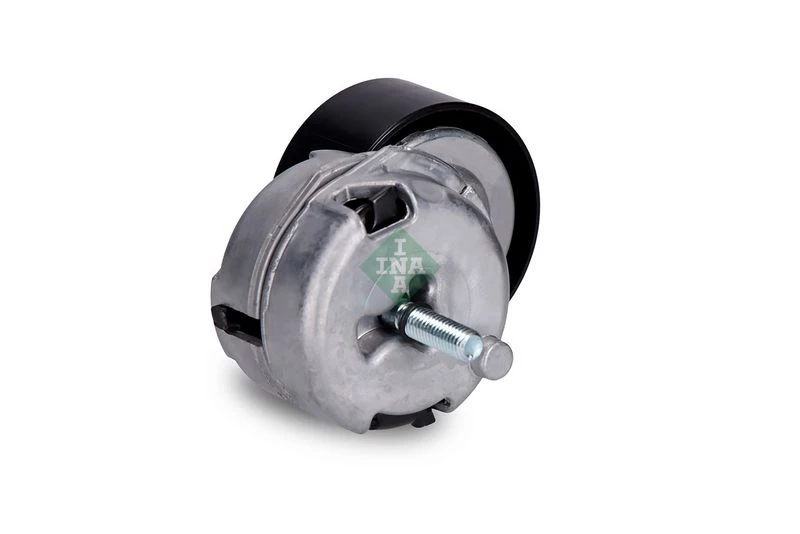

    INA V‑ribbed belt tensioner main view

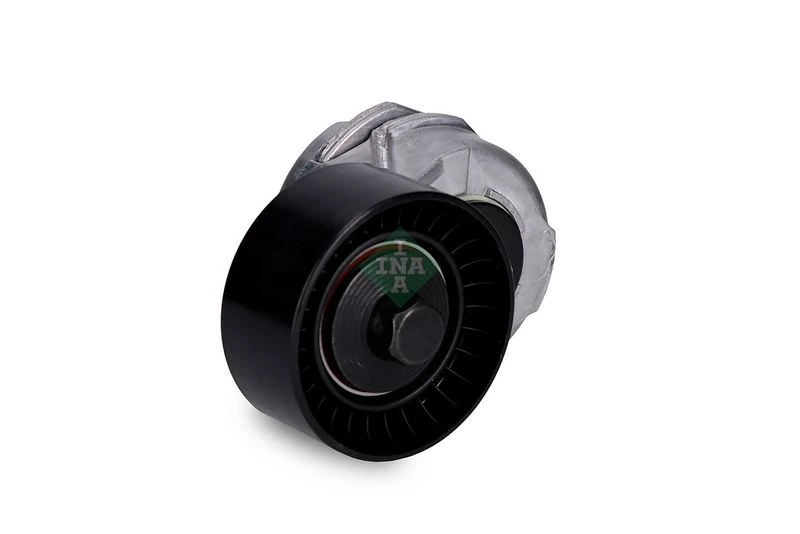

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Manufacturer Productnumber
    alfa romeo 46442999
    alfa romeo 46524692
    alfa romeo 60814110
    alfa romeo 779 8333 , 7798333
    alfa romeo 7798333
    fiat 46406204
    fiat 46442999
    fiat 46524692
    fiat 55184055
    fiat 60677108
    fiat 60811332
    fiat 60811874
    fiat 60814110
    fiat 779 8333 , 7798333
    fiat 7798333
    lancia 46442999
    lancia 46524692
    lancia 60814110
    lancia 779 8333 , 7798333
    lancia 7798333
    Usage numbers
    BREDA LORETT CR3267
    DAYCO APV1000
    DAYCO APV1080
    FEBI BILSTEIN 17541
    GATES 7808-21256
    GATES 7808-21263
    GATES 780821256
    GATES 780821263
    GATES T38356
    GATES T38363
    GMB GAT21240
    HUTCHINSON T0200
    IPD 10-0342
    IPD 100342
    QUINTON HAZELL QTA712
    RUVILLE 55863
    SCHAEFFLER GRUPPE 534 0109 20
    SCHAEFFLER GRUPPE 534010920
    Schaeffler INA F-123747
    Schaeffler INA F123747
    SKF VKM 32022
    SKF VKM32022
    SKF VKM32026
    SNR GA358.72
    SNR GA358.96
    SNR GA35872
    SNR GA35896
    TRIPLE FIVE 0211-07-05863P
    TRIPLE FIVE 02110705863P
    TRIPLE FIVE 300 5143
    TRIPLE FIVE 3005143
    TRIPLE FIVE 3531
    TRIPLE FIVE 999620
    TRIPLE FIVE MBI-25340
    TRIPLE FIVE MBI25340
    TRIPLE FIVE RKT1540
    TRIPLE FIVE TP21439
    TRIPLE FIVE Y1160
