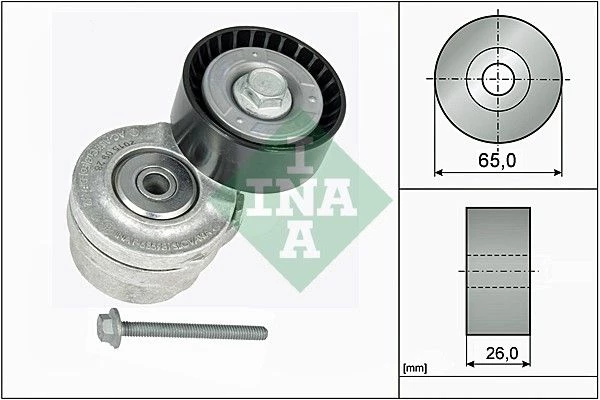

Outer diameter (mm)	65
Width (mm)	26
Svhc	no svhc present!

Product number: 534 0101 20

Ina Belt Tensioner V-ribbed Belt For Alfa Romeo Fiat Lancia 145 146 147 156 Brav

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 22,98

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

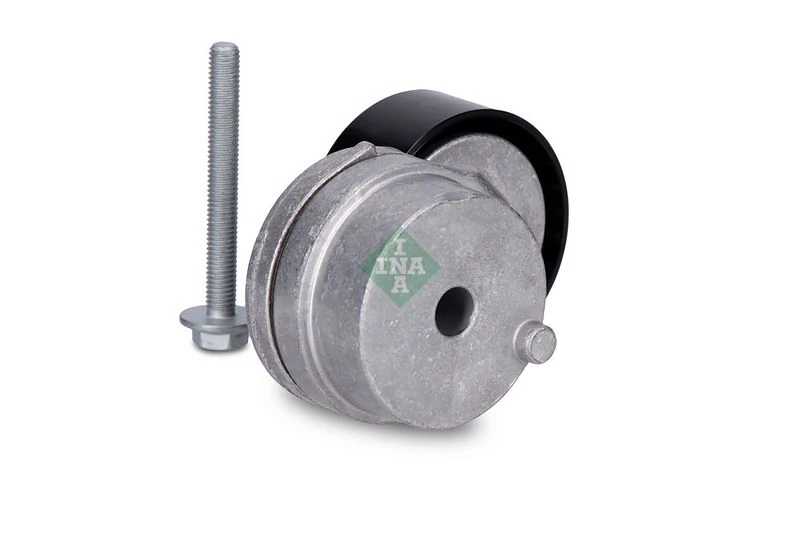

INA V‑ribbed belt tensioner 360 angle view

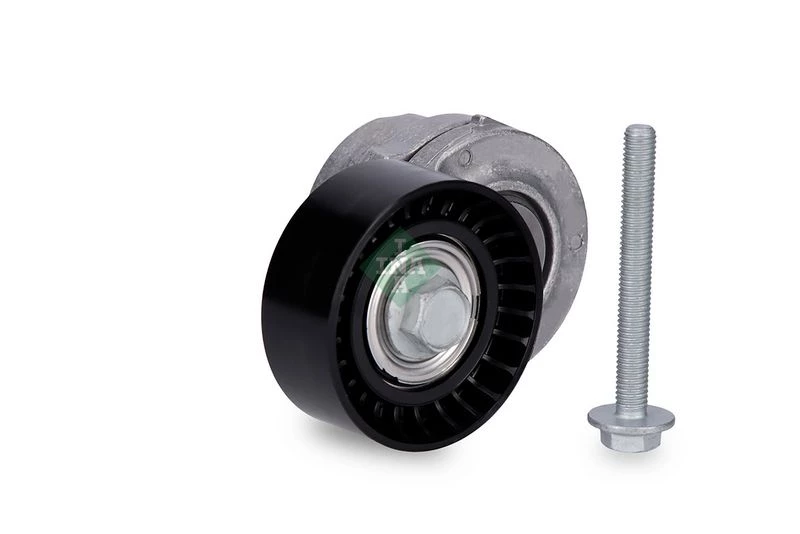

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
alfa romeo	46546374
alfa romeo	55180011
alfa romeo	60815188
alfa romeo	71747798
fiat	46546374
fiat	55180011
fiat	60815188
fiat	71747798
lancia	46546374
lancia	55180011
lancia	60815188
lancia	71747798

Usage numbers
BREDA LORETT CR3273
DAYCO APV1027
DAYCO APV1077
FEBI BILSTEIN 22392
GATES 7808-21264
GATES 780821264
GATES T38364
GMB GAT21220
GMB GTA0030
HK A365
IPD 10-0365
IPD 100365
OPTIMAL 0-N1487
OPTIMAL 0N1487
QUINTON HAZELL QTA1134
RUVILLE 55872
SCHAEFFLER GRUPPE 534 0101 20
SCHAEFFLER GRUPPE 534010120
Schaeffler INA F-236665
Schaeffler INA F-585981
Schaeffler INA F236665
Schaeffler INA F585981
SKF VKM 32027
SKF VKM32027
SNR GA358.85
SNR GA35885
SWAG 70 92 2392
SWAG 70922392
TRIPLE FIVE 0211-07-05872P
TRIPLE FIVE 02110705872P
TRIPLE FIVE 300 5002
TRIPLE FIVE 3005002
TRIPLE FIVE 380378
TRIPLE FIVE RKT2094
TRIPLE FIVE Y1519
VAICO V24-0142
VAICO V240142

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
