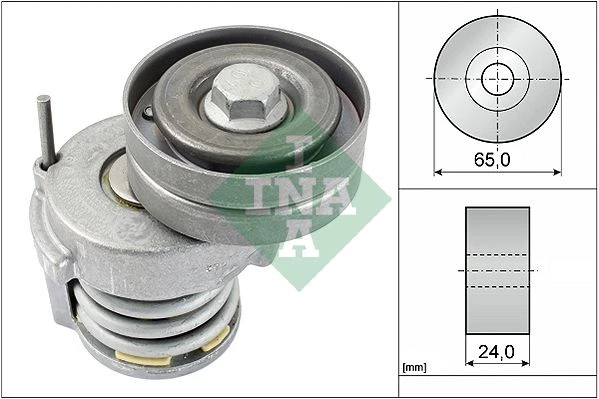

Outer diameter (mm)	65
Width (mm)	24
Svhc	no svhc present!

Product number: 534 0065 10

Ina Belt Tensioner V-ribbed Belt For Audi Seat Skoda Skoda (Svw) Vw Vw (Faw) Vw

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 35,08

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

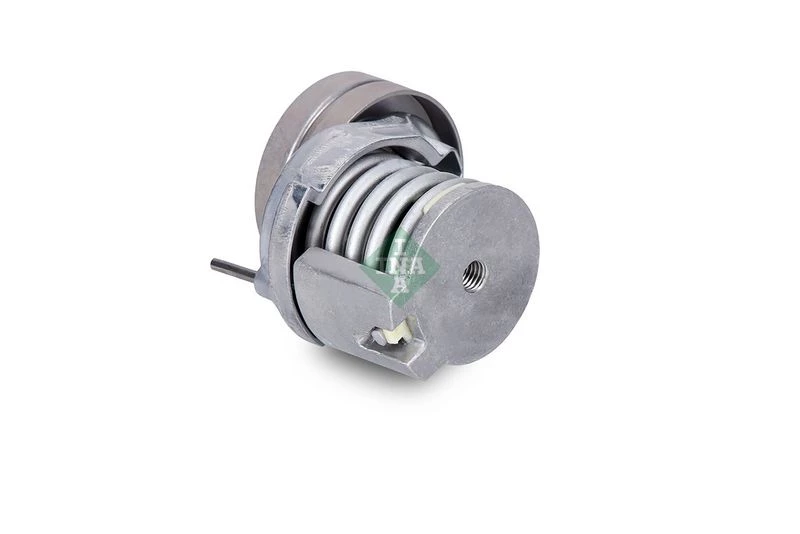

INA V‑ribbed belt tensioner 360 angle view

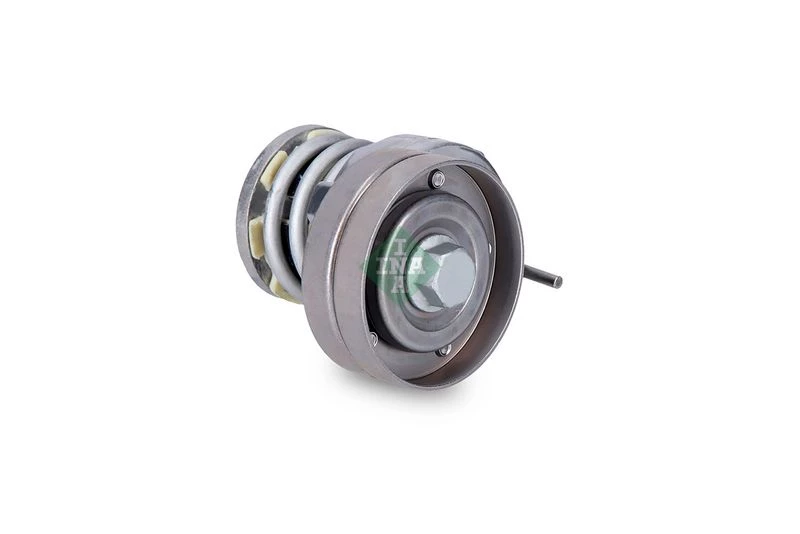

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
audi	03C 145 299 C , 03C145299C
audi	03C 145 299 Q , 03C145299Q
audi	03C145299C
audi	03C145299Q
audi	1J0 145 299 , 1J0145299
audi	1J0145299
seat	03C 145 299 C , 03C145299C
seat	03C 145 299 Q , 03C145299Q
seat	03C145299C
seat	03C145299Q
seat	1J0 145 299 , 1J0145299
seat	1J0145299
skoda	03C 145 299 C , 03C145299C
skoda	03C 145 299 Q , 03C145299Q
skoda	03C145299C
skoda	03C145299Q
skoda	1J0 145 299 , 1J0145299
skoda	1J0145299
vw	03C 145 299 C , 03C145299C
vw	03C 145 299 Q , 03C145299Q
vw	03C145299C
vw	03C145299Q
vw	1J0 145 299 , 1J0145299
vw	1J0145299

Usage numbers
AUTEX 654099
BREDA LORETT CR3713
BREDA LORETT TOA3713
CONTINENTAL CTAM V85580
DAYCO APV2474
FEBI BILSTEIN 27218
FEBI BILSTEIN 32629
GATES 7808-21339
GATES 780821339
GATES T38439
GK 654099
GMB GAT20970
GMB GAT21350
IPD 15-3094
IPD 153094
OPTIMAL 0-N1733S
OPTIMAL 0N1733S
RUVILLE 55778
SCHAEFFLER GRUPPE 534 0065 10
SCHAEFFLER GRUPPE 534006510
SKF VKM 31047
SKF VKM31047
SWAG 30 92 7218
SWAG 30 93 2629
SWAG 30927218
SWAG 30932629
TOPRAN 110 378
TOPRAN 110378
TRIPLE FIVE 950447
TRIPLE FIVE GA357.47
TRIPLE FIVE GA35747
VAICO V10-1814
VAICO V101814

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
audi
seat
skoda
vw
