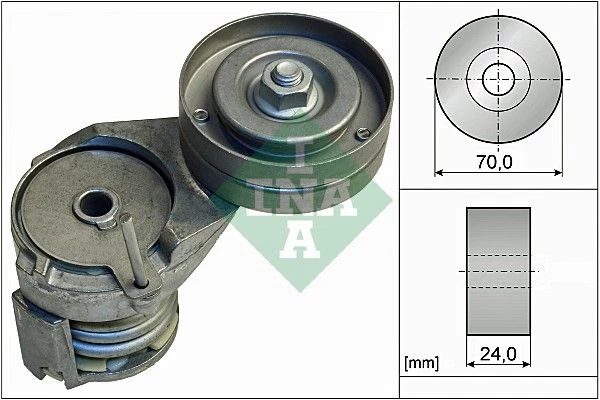

Outer diameter (mm)	70
Width (mm)	24
Svhc	no svhc present!

Product number: 534 0138 30

Ina Belt Tensioner V-ribbed Belt For Audi Seat Skoda Vw A3 Bora Golf Leon New Be

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 31,45

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

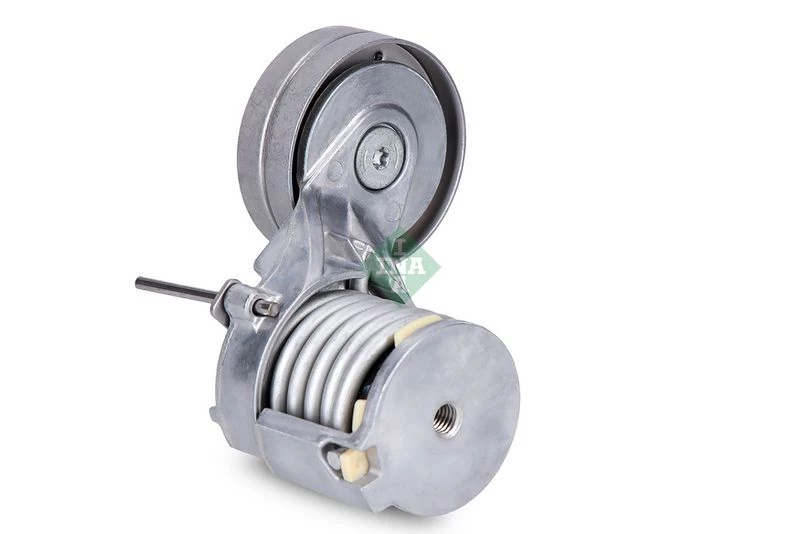

INA V‑ribbed belt tensioner 360 angle view

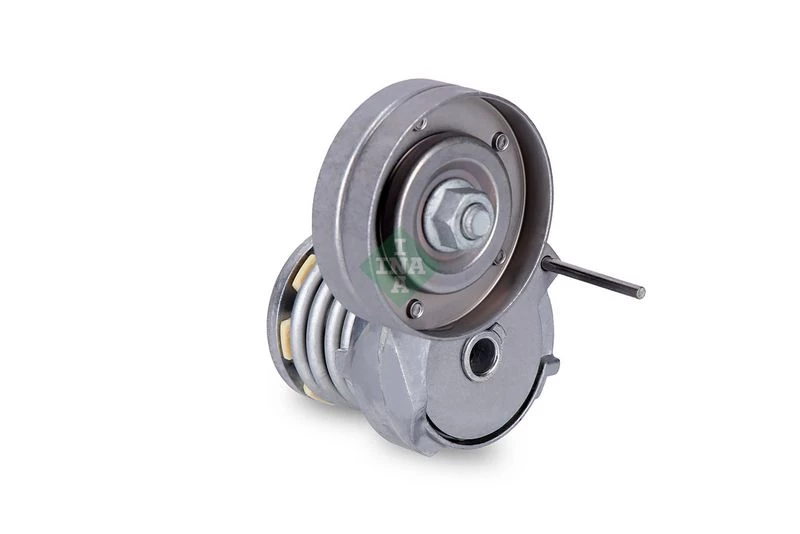

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
audi	032 145 299 A , 032145299A
audi	032145299A
seat	032 145 299 A , 032145299A
seat	032145299A
skoda	032 145 299 A , 032145299A
skoda	032145299A
vw	032 145 299 A , 032145299A
vw	032145299A

Usage numbers
AIC 54763
AUTEX 601859
BREDA LORETT TOA3449
CONTINENTAL CTAM V85562
DAYCO APV2320
DAYCO DYV613
FEBI BILSTEIN 23558
GATES 7808-21182
GATES 780821182
GATES T38282
GMB GAT20650
HK A854
HK A854-U
HK A854U
IPD 10-0854
IPD 100854
OPTIMAL 0-N1539S
OPTIMAL 0N1539S
RUVILLE 55738
SCHAEFFLER GRUPPE 534 0138 30
SCHAEFFLER GRUPPE 534013830
Schaeffler INA F-551837
Schaeffler INA F551837
SKF VKM 31016
SKF VKM 4817
SKF VKM31016
SKF VKM4817
SWAG 32 92 3558
SWAG 32923558
TOPRAN 108 222
TOPRAN 108222
TRIPLE FIVE 322 5301
TRIPLE FIVE 3225301
TRIPLE FIVE 950426
TRIPLE FIVE GA357.40
TRIPLE FIVE GA35740
TRIPLE FIVE R4126
TRIPLE FIVE Y1400
VAICO V10-0749
VAICO V100749

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
seat
skoda
vw
