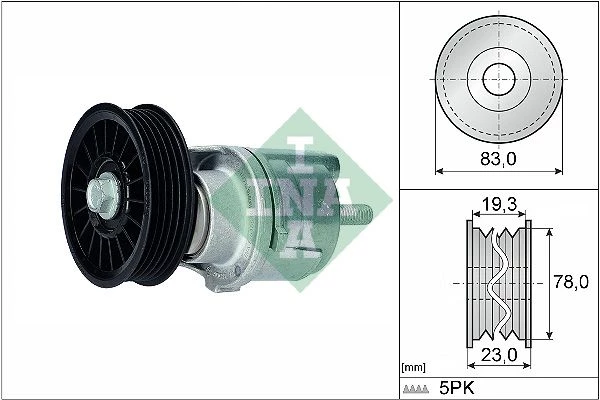

Outer diameter (mm)	80
Width (mm)	20
Number of grooves	5
Svhc	no svhc present!

Product number: 534 0185 10

Ina Belt Tensioner V-ribbed Belt For Audi Vw A4 A6 Passat

In stock

Shipping method	Delivery time	Stock
Shipping	14-8-2025	3

Price excl. vat.

£ 44,76

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

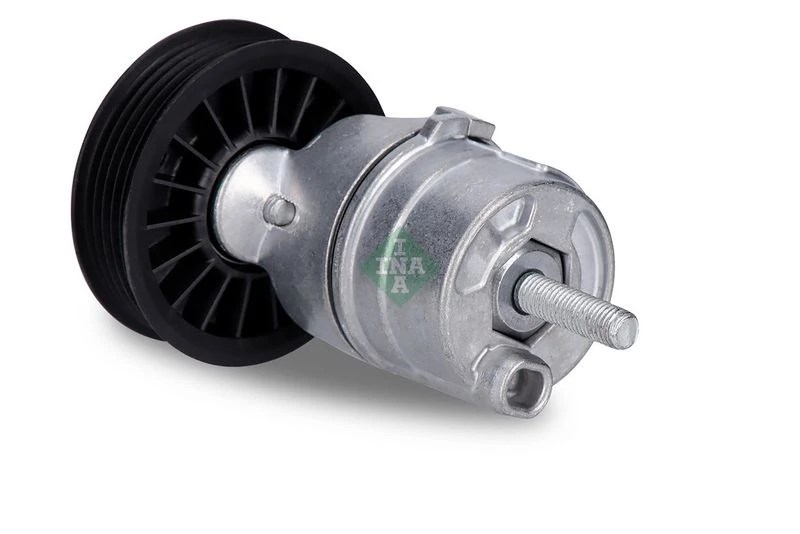

INA V‑ribbed belt tensioner 360 angle view

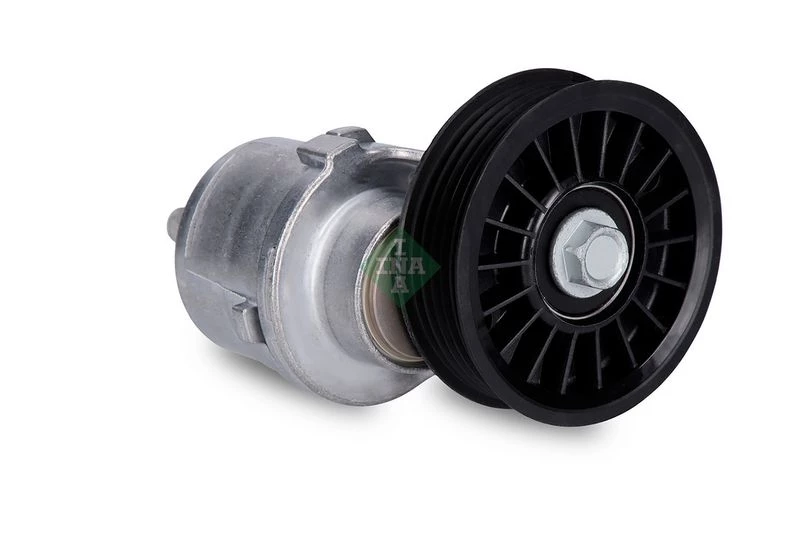

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
audi	028 903 315 M , 028903315M
audi	028903315M
seat	028 903 315 M , 028903315M
seat	028903315M
skoda	028 903 315 M , 028903315M
skoda	028903315M
vw	028 903 315 M , 028903315M
vw	028903315M

Usage numbers
AIC 51444
AUTOMEGA 160064410
BREDA LORETT CR3717
BREDA LORETT TOA3717
CONTINENTAL CTAM V85571
DAYCO APV2640
FEBI BILSTEIN 23758
GATES 7808-21275
GATES 780821275
GATES T38375
GMB GAT21160
IPD 15-3000
IPD 153000
MAPCO 24879
Metalcaucho 04945
RUVILLE 56305
SCHAEFFLER GRUPPE 534 0185 10
SCHAEFFLER GRUPPE 534018510
SCHAEFFLER GRUPPE F-618540
SCHAEFFLER GRUPPE F618540
SKF VKM31034
SNR GA357.15
SNR GA35715
SWAG 32 92 3758
SWAG 32923758
TOPRAN 108 495
TOPRAN 108495
TRIPLE FIVE 100915
TRUCKTEC AUTOMOTIVE 07.19.132
TRUCKTEC AUTOMOTIVE 0719132
VAICO V10-0563
VAICO V100563
WILMINK GROUP WG1429543

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
audi
vw

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
