    Schaeffler INA
    Outer diameter (mm) 60
    Width (mm) 25
    Svhc no svhc present!
    Product number: 534 0179 10

    Ina Belt Tensioner V-ribbed Belt For Citroën Citroën (Df-psa) Fiat Peugeot Peuge

    Price excl. vat.
    £ 39,92

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

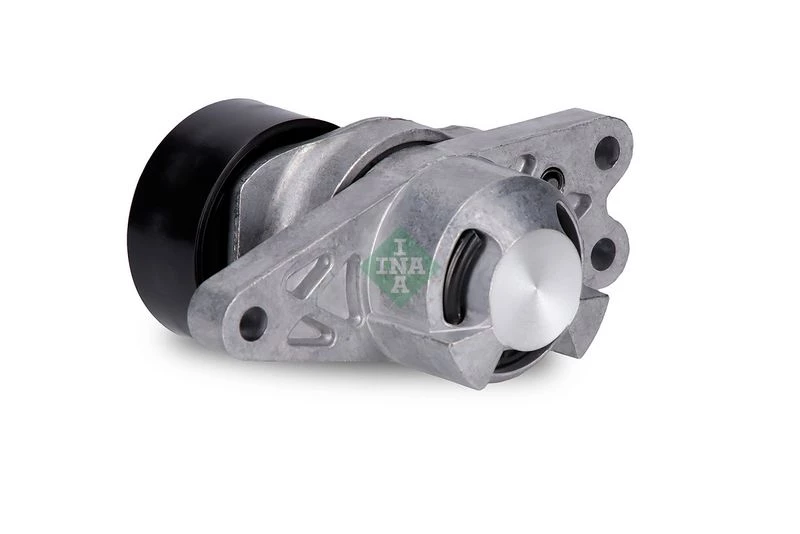

    INA V‑ribbed belt tensioner main view

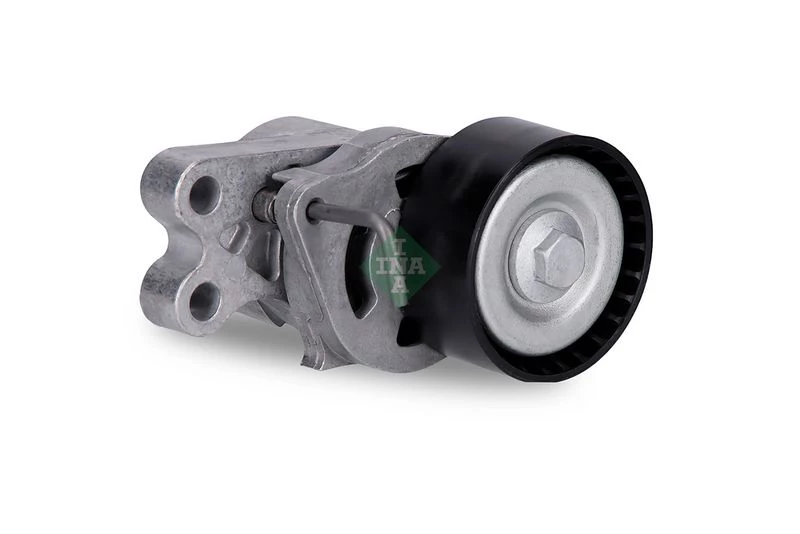

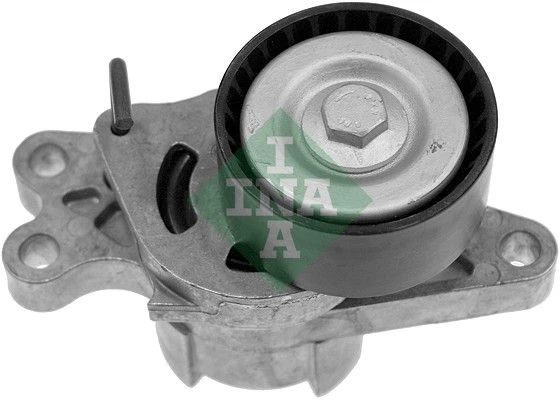

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Manufacturer Productnumber
    citroËn 16 114 245 80 , 1611424580
    citroËn 1611424580
    citroËn 5751.97 , 575197
    citroËn 5751.A2 , 5751A2
    citroËn 5751.C8 , 5751C8
    citroËn 575197
    citroËn 5751A2
    citroËn 5751C8
    citroËn 96 496 758 80 , 9649675880
    citroËn 96 520 466 80 , 9652046680
    citroËn 9649675880
    citroËn 9652046680
    fiat 1611424580
    fiat 9652046680
    peugeot 16 114 245 80 , 1611424580
    peugeot 1611424580
    peugeot 5751.97 , 575197
    peugeot 5751.A2 , 5751A2
    peugeot 5751.C8 , 5751C8
    peugeot 575197
    peugeot 5751A2
    peugeot 5751C8
    peugeot 96 496 758 80 , 9649675880
    peugeot 96 520 466 80 , 9652046680
    peugeot 9649675880
    peugeot 9652046680
    citroËn (df-psa) 5751 C8 , 5751C8
    citroËn (df-psa) 5751C8
    peugeot (df-psa) 5751 C8 , 5751C8
    peugeot (df-psa) 5751C8
    Usage numbers
    AUTEX 654082
    BREDA LORETT CR3672
    BREDA LORETT TOA3672
    CONTINENTAL CTAM V85601
    DAYCO APV2547
    FEBI BILSTEIN 31075
    FEBI BILSTEIN 40466
    GATES 7808-21346
    GATES 7808-21455
    GATES 780821346
    GATES 780821455
    GATES T38446
    GATES T39055
    GMB GAT20070
    GMB GTA0360
    HUTCHINSON T0049
    IPD 15-3077
    IPD 153077
    MAPCO 24366
    Metalcaucho 05421
    MEYLE 11-14 903 1003
    MEYLE 11149031003
    OPTIMAL 0-N1620
    OPTIMAL 0-N1620S
    OPTIMAL 0N1620
    OPTIMAL 0N1620S
    QUINTON HAZELL QTA1168
    QUINTON HAZELL QTA1390
    RUVILLE 55989
    SCHAEFFLER GRUPPE 534 0179 10
    SCHAEFFLER GRUPPE 534017910
    SKF VKM 33101
    SKF VKM 33300
    SKF VKM33101
    SKF VKM33300
    SNR GA359.14
    SNR GA35914
    SWAG 62 93 1075
    SWAG 62931075
    TOPRAN 722 416
    TOPRAN 722416
    TRIPLE FIVE 03.80817
    TRIPLE FIVE 0380817
    TRIPLE FIVE 101923
    TRIPLE FIVE 101924-E
    TRIPLE FIVE 101924E
    VAICO V42-0206
    VAICO V420206
    WILMINK GROUP WG1431202
