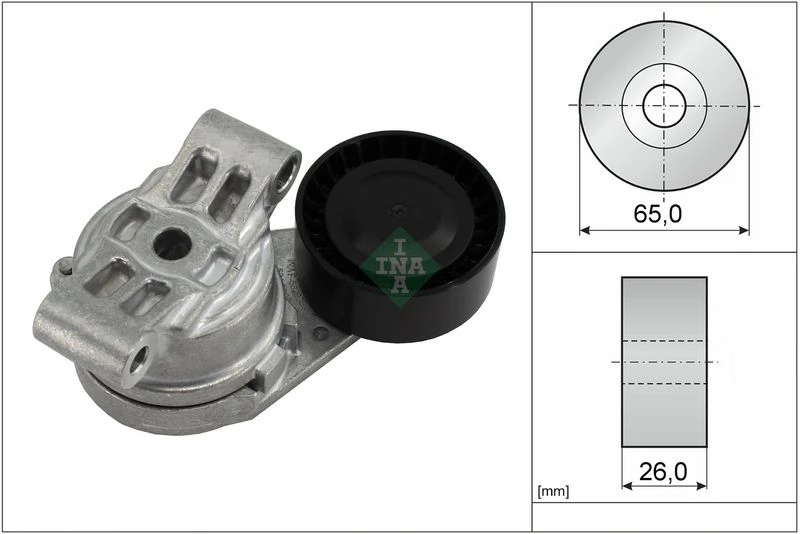

Outer diameter (mm)	65
Width (mm)	26
Svhc	no svhc present!

Product number: 534 0308 10

Ina Belt Tensioner V-ribbed Belt For Citroën Fiat Ford Ford (Jmc) Ford Australia

In stock

Shipping method	Delivery time	Stock
Shipping	13-8-2025	3

Price excl. vat.

£ 39,92

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

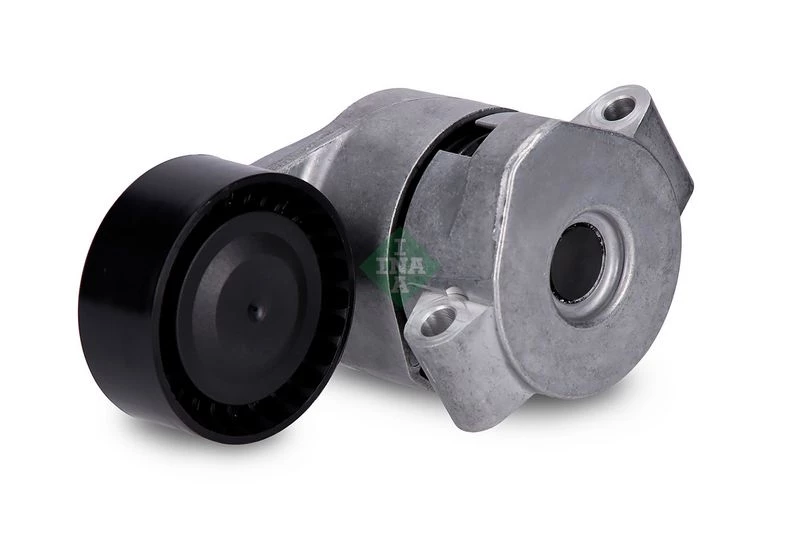

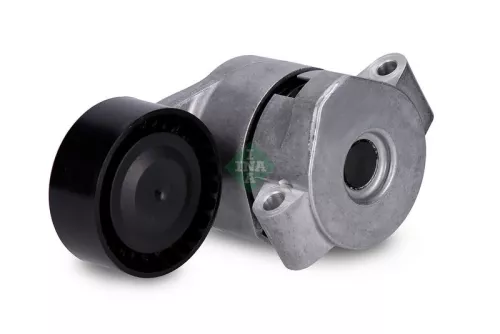

INA V‑ribbed belt tensioner 360 angle view

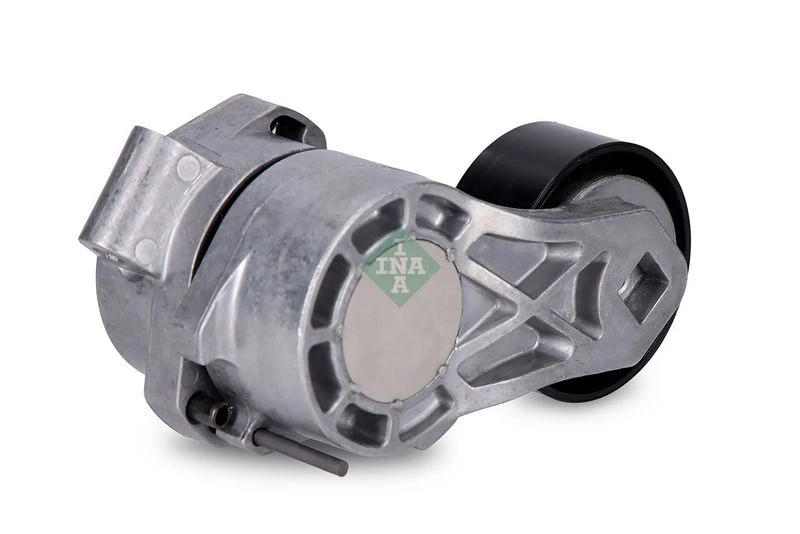

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
citroËn	5751.F2 , 5751F2
citroËn	5751F2
fiat	9658142780
ford	1420513
ford	6C1Q-6A228-AB , 6C1Q6A228AB
ford	6C1Q6A228AB
peugeot	5751.F2 , 5751F2
peugeot	5751F2

Usage numbers
AUTEX 654727
BREDA LORETT CR3671
BREDA LORETT TOA3671
CONTINENTAL CTAM V85917
DAYCO APV2677
FEBI BILSTEIN 37254
GATES 7808-21507
GATES 780821507
GATES T39107
HEPU 15-3722
HEPU 153722
HUTCHINSON T0079
IPD 15-3722
IPD 153722
LUCAS ELECTRICAL LA0524
OPTIBELT 3150SR
OPTIMAL 0-N2014
OPTIMAL 0-N2014S
OPTIMAL 0N2014
OPTIMAL 0N2014S
QUINTON HAZELL QTA1577
RUVILLE 55292
SCHAEFFLER GRUPPE 534 0308 10
SCHAEFFLER GRUPPE 534030810
SCHAEFFLER GRUPPE F-682935.02
SCHAEFFLER GRUPPE F68293502
SKF VKM 34700
SKF VKM34700
SNR GA358.12
SNR GA35812
SWAG 50 93 7254
SWAG 50937254
TRIPLE FIVE 03.81084
TRIPLE FIVE 0381084
TRIPLE FIVE 530443-E
TRIPLE FIVE 530443E
TRIPLE FIVE 530673-E
TRIPLE FIVE 530673E
TRISCAN 8641 163017
TRISCAN 8641163017
WILMINK GROUP WG1253482
WILMINK GROUP WG1430415
WILMINK GROUP WG2004757

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
fiat
ford
peugeot
