Outer diameter (mm)	72.5
Width (mm)	25.5
Number of grooves	6
Svhc	no svhc present!

Product number: 534 0032 10

Ina Belt Tensioner V-ribbed Belt For Ford Courier Focus

In stock

Shipping method	Delivery time	Stock
Shipping	13-8-2025	3

Price excl. vat.

£ 42,34

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

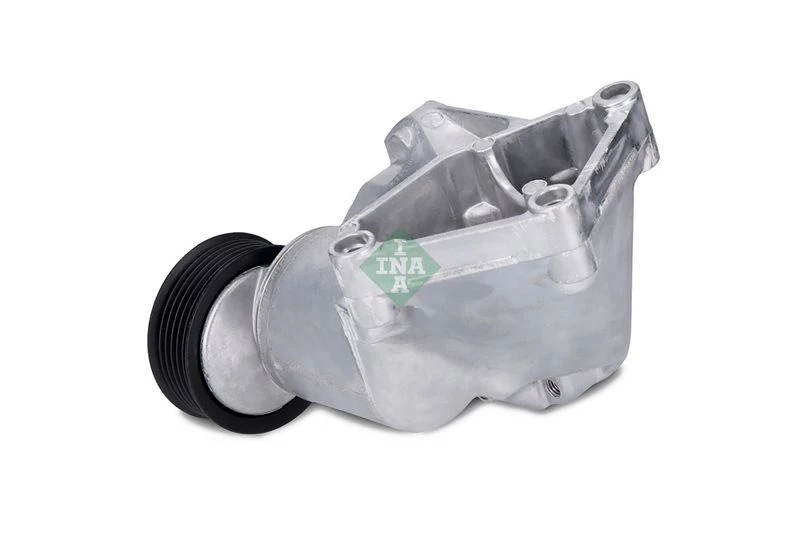

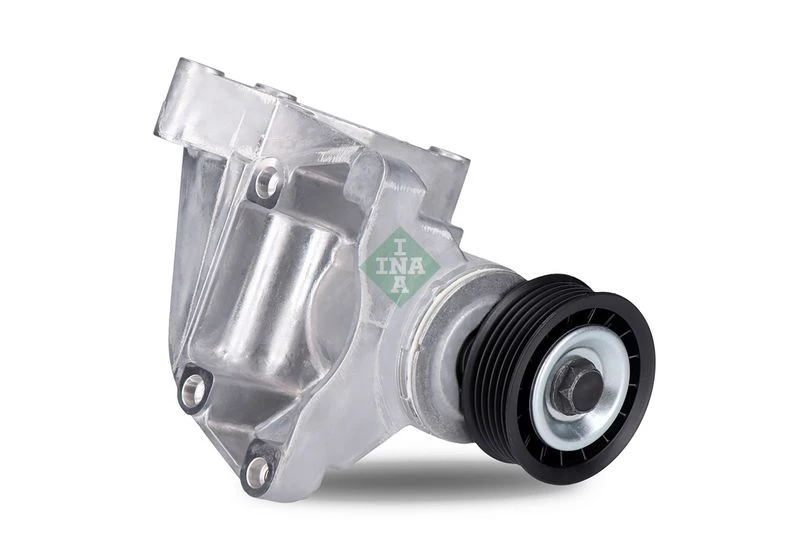

INA V‑ribbed belt tensioner 360 angle view

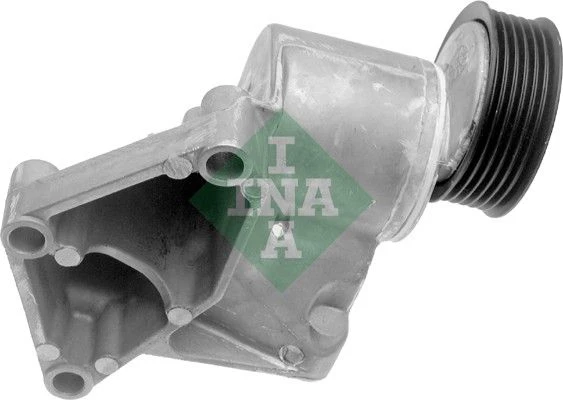

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
ford	1075546
ford	1100693
ford	1114044
ford	1152890
ford	98MF-3C631-CD , 98MF3C631CD
ford	98MF-3C631-CE , 98MF3C631CE
ford	98MF-3C631-CF , 98MF3C631CF
ford	98MF-3C631-CG , 98MF3C631CG
ford	98MF-3C631-DF , 98MF3C631DF
ford	98MF3C631CD
ford	98MF3C631CE
ford	98MF3C631CF
ford	98MF3C631CG
ford	98MF3C631DF

Usage numbers
BREDA LORETT CR3535
DAYCO APV2268
FEBI BILSTEIN 21779
GATES 7720-43831-G2
GATES 772043831G2
GATES 7808-21216
GATES 780821216
GATES T38316
GMB GAT33270
HK A873
HUTCHINSON T0317
IPD 10-0873
IPD 100873
Metalcaucho 05355
OPTIBELT 0-N1433S
OPTIBELT 0N1433S
RUVILLE 55254
SCHAEFFLER GRUPPE 534 0032 10
SCHAEFFLER GRUPPE 534003210
Schaeffler INA F-125057
Schaeffler INA F125057
SKF VKM 34018
SKF VKM34018
SNR GA352.56
SNR GA35256
TRIPLE FIVE 401 8593
TRIPLE FIVE 4018593
TRIPLE FIVE Y1650
VAICO V25-9696
VAICO V259696

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
ford
