    Schaeffler INA

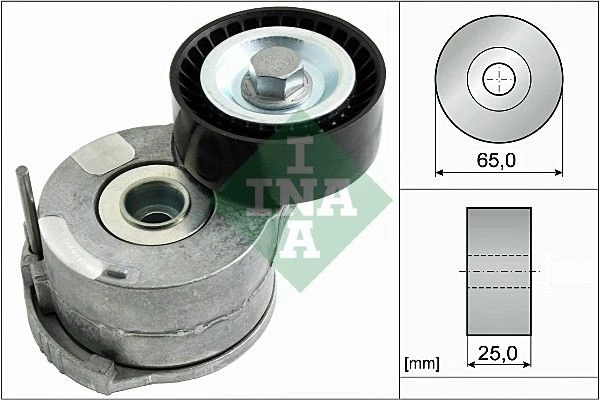

    Outer diameter (mm) 65
    Width (mm) 25
    Svhc no svhc present!
    Product number: 534 0403 10

    Ina Belt Tensioner V-ribbed Belt For Ford Ford Australia C-max Focus Galaxy Gran

    Price excl. vat.
    £ 35,08

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

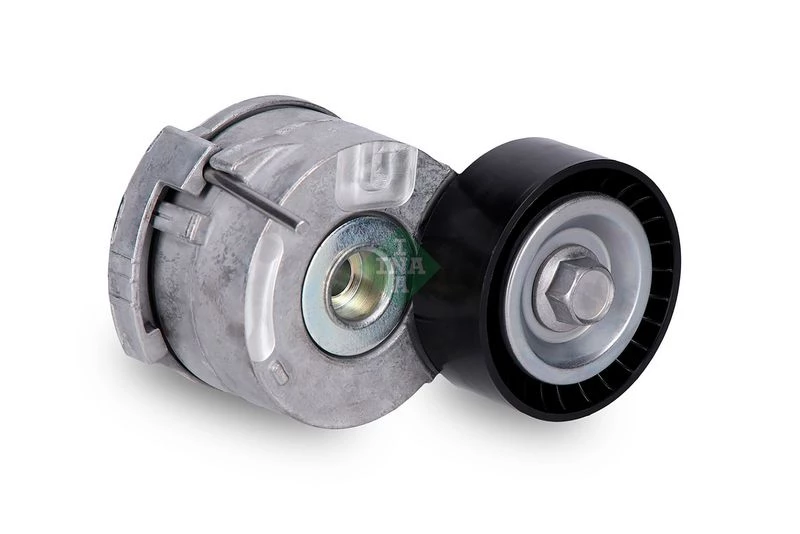

    INA V‑ribbed belt tensioner main view

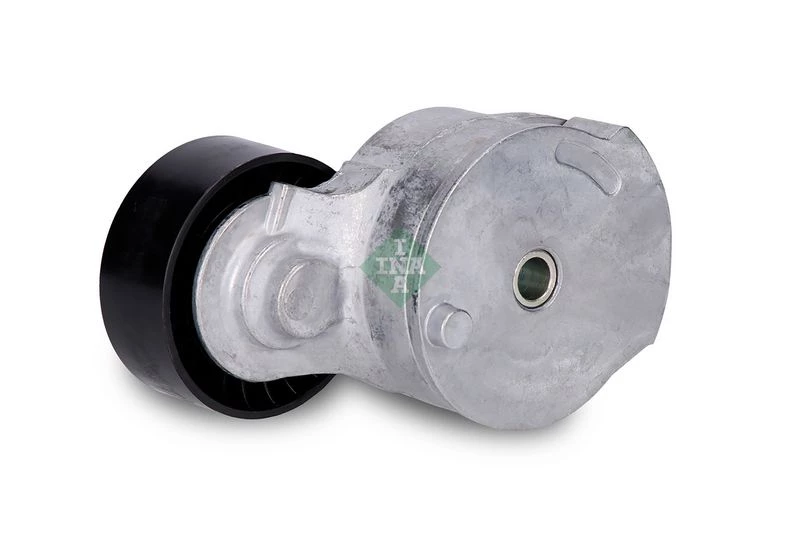

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Manufacturer Productnumber
    ford 1682004
    ford 1683646
    ford 1768088
    ford 9M5Q-6A228-BA , 9M5Q6A228BA
    ford 9M5Q-6A228-BB , 9M5Q6A228BB
    ford 9M5Q6A228BA
    ford 9M5Q6A228BB
    Usage numbers
    AUTEX 655038
    BREDA LORETT TOA5576
    CONTINENTAL CTAM V85915
    DAYCO APV3753
    FEBI BILSTEIN 39390
    GATES 7808-21588
    GATES 780821588
    GATES T39188
    IPD 15-4033
    IPD 154033
    LUCAS ELECTRICAL LA0669
    Metalcaucho 57474
    OPTIMAL 0-N2396
    OPTIMAL 0-N2396S
    OPTIMAL 0N2396
    OPTIMAL 0N2396S
    RUVILLE 57106
    SCHAEFFLER GRUPPE 534 0403 10
    SCHAEFFLER GRUPPE 534040310
    SKF VKM 33205
    SKF VKM33205
    SNR GA352.78
    SNR GA35278
    SWAG 62 93 9390
    SWAG 62939390
    TRIPLE FIVE 03.81769
    TRIPLE FIVE 0381769
    TRIPLE FIVE RKT3485
    TRISCAN 8641 161014
    TRISCAN 8641161014
    WILMINK GROUP WG1431348
    WILMINK GROUP WG1710160
    WILMINK GROUP WG2005138
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
