    Schaeffler INA
    Outer diameter (mm) 65
    Width (mm) 22
    Svhc no svhc present!
    Product number: 534 0550 10

    Ina Belt Tensioner V-ribbed Belt For Hyundai Kia Accent Carens Cee'd Cerato Cret

    Price excl. vat.
    £ 24,19

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

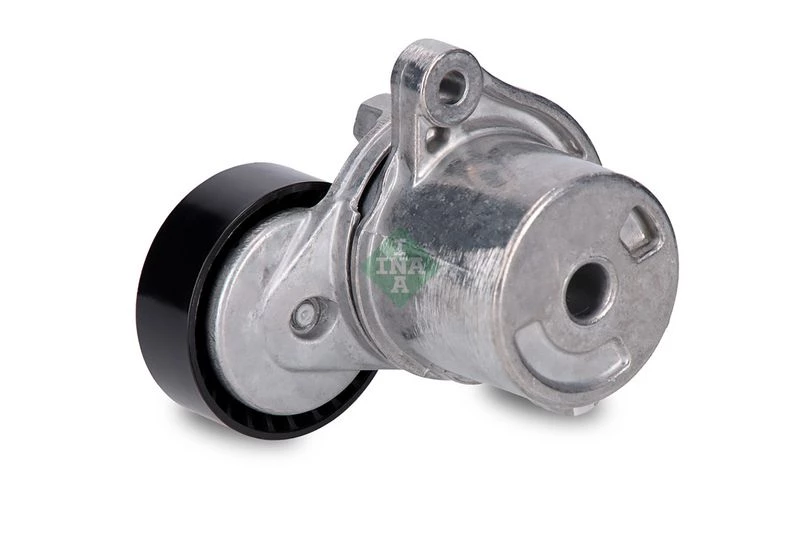

    INA V‑ribbed belt tensioner main view

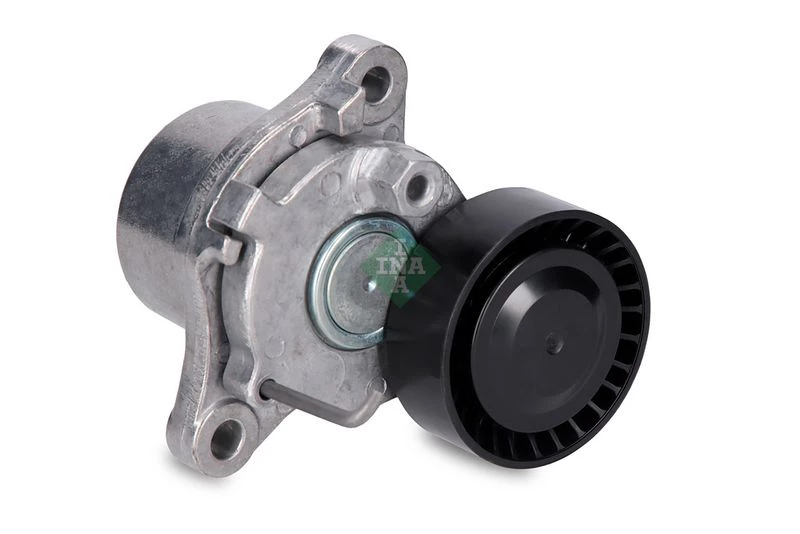

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Usage numbers
    BLUE PRINT ADG096511
    BREDA LORETT CR5460
    BREDA LORETT TOA5590
    DAYCO APV2764
    DAYCO APV2837
    FEBI BILSTEIN 170232
    GATES 7808-21523
    GATES 7808-21693
    GATES 780821523
    GATES 780821693
    GATES T39123
    GATES T39293
    GMB GAT10070
    HUTCHINSON T0059
    IPD 15-3837
    IPD 153837
    JAPANPARTS TS-H00
    JAPANPARTS TSH00
    KAVO PARTS DTP-3017
    KAVO PARTS DTP3017
    OPTIMAL 0-N2214
    OPTIMAL 0-N2214S
    OPTIMAL 0N2214
    OPTIMAL 0N2214S
    RUVILLE 58440
    RUVILLE 58458
    SCHAEFFLER GRUPPE 534 0550 10
    SCHAEFFLER GRUPPE 534055010
    Schaeffler INA F-582024.03
    Schaeffler INA F-582024.04
    Schaeffler INA F-582024.08
    Schaeffler INA F-605991
    Schaeffler INA F-605991.01
    Schaeffler INA F-605991.02
    Schaeffler INA F58202403
    Schaeffler INA F58202404
    Schaeffler INA F58202408
    Schaeffler INA F605991
    Schaeffler INA F60599101
    Schaeffler INA F60599102
    SKF VKM64010
    SNR GA384.02
    SNR GA38402
    TRIPLE FIVE 03.81728
    TRIPLE FIVE 0381728
    TRIPLE FIVE 531153-F-E
    TRIPLE FIVE 531153FE
    TRIPLE FIVE 531182-E
    TRIPLE FIVE 531182E
    TRIPLE FIVE GA384.21
    TRIPLE FIVE GA38421
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    hyundai hyundai
    kia kia

    FAQ


    You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.


    Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.


    Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.


    Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.


    Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
    Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.


    The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
