Outer diameter (mm)	65
Width (mm)	30
Svhc	no svhc present!
Tensioner pulley actuation	hydraulic

Product number: 534 0041 10

Ina Belt Tensioner V-ribbed Belt For Mercedes-benz C-class E-class

In stock

Shipping method	Delivery time	Stock
Shipping	14-8-2025	3

Price excl. vat.

£ 75,01

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

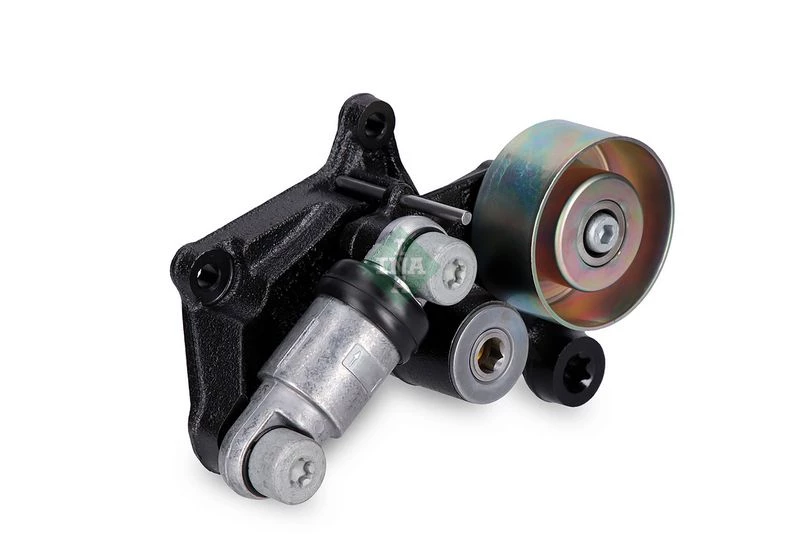

INA V‑ribbed belt tensioner 360 angle view

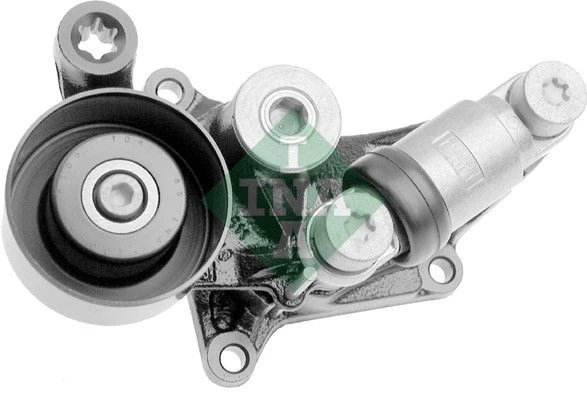

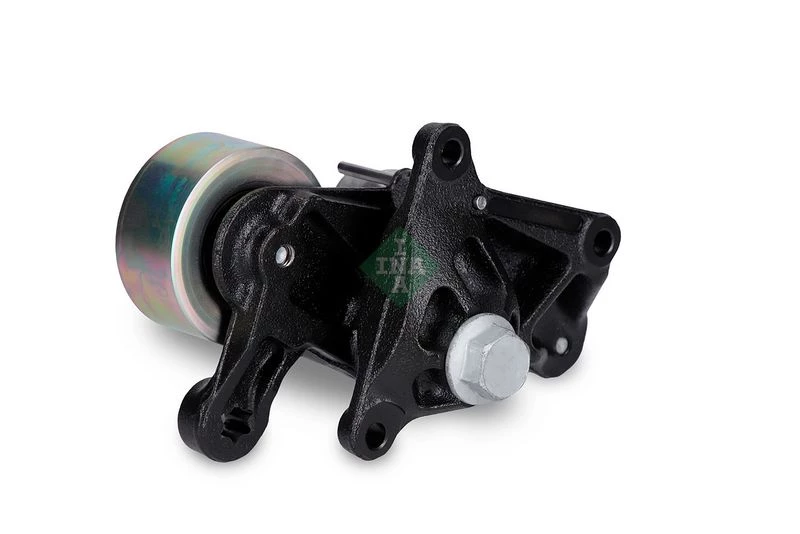

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
mercedes-benz	611 200 06 70 , 6112000670
mercedes-benz	6112000670
mercedes-benz	646 200 00 70 , 6462000070
mercedes-benz	6462000070
mercedes-benz	A 611 200 06 70 , A6112000670
mercedes-benz	A 646 200 00 70 , A6462000070
mercedes-benz	A6112000670
mercedes-benz	A6462000070

Usage numbers
AUTEX 602051
BREDA LORETT TOA3657
DAYCO APV2275
FEBI BILSTEIN 23501
GATES 7808-21205
GATES 780821205
GATES T38305
GMB GHAT-230
GMB GHAT230
HK A1046
IPD 10-1046
IPD 101046
LEMFÖRDER 2700701
RUVILLE 55163
SCHAEFFLER GRUPPE 534 0041 10
SCHAEFFLER GRUPPE 534004110
Schaeffler INA F-233488.09
Schaeffler INA F-233488.9
Schaeffler INA F-550123
Schaeffler INA F23348809
Schaeffler INA F2334889
Schaeffler INA F550123
SKF VKM 38023
SKF VKM38023
SNR GA351.15
SNR GA35115
SWAG 10 92 3501
SWAG 10923501
TOPRAN 401 406
TOPRAN 401406
TRIPLE FIVE Y1704
TRUCKTEC AUTOMOTIVE 02.19.184
TRUCKTEC AUTOMOTIVE 02.19.250
TRUCKTEC AUTOMOTIVE 0219184
TRUCKTEC AUTOMOTIVE 0219250
VAICO V30-0001
VAICO V300001

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
mercedes-benz
