    Schaeffler INA

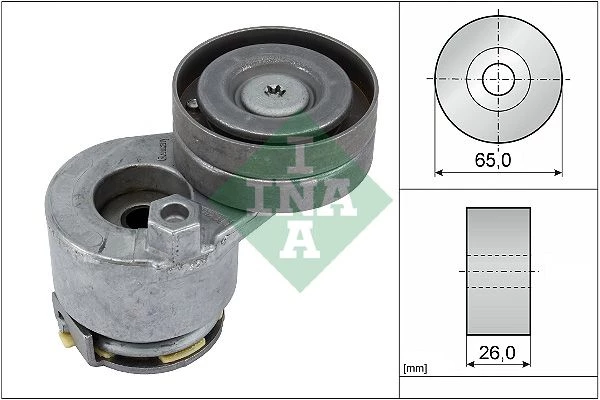

    Outer diameter (mm) 65
    Width (mm) 26
    Svhc no svhc present!
    Product number: 534 0240 10

    Ina Belt Tensioner V-ribbed Belt For Mitsubishi Nissan Opel Renault Vauxhall Vol

    Price excl. vat.
    £ 41,13

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

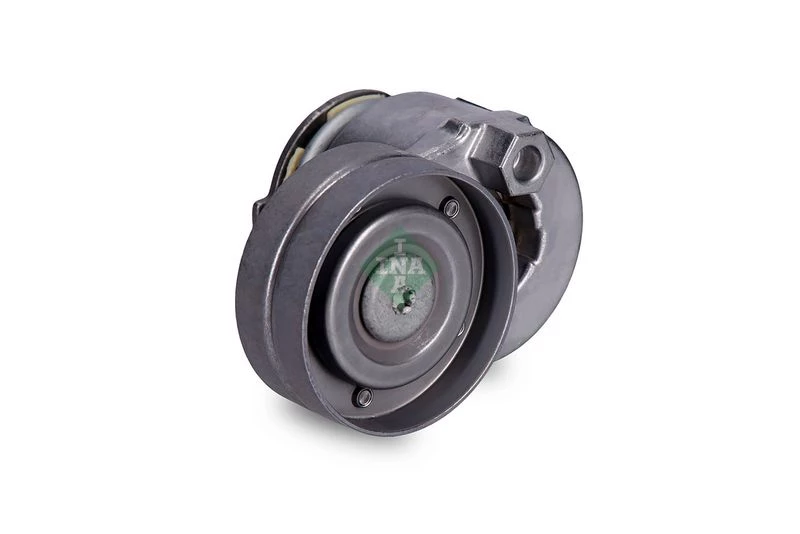

    INA V‑ribbed belt tensioner main view

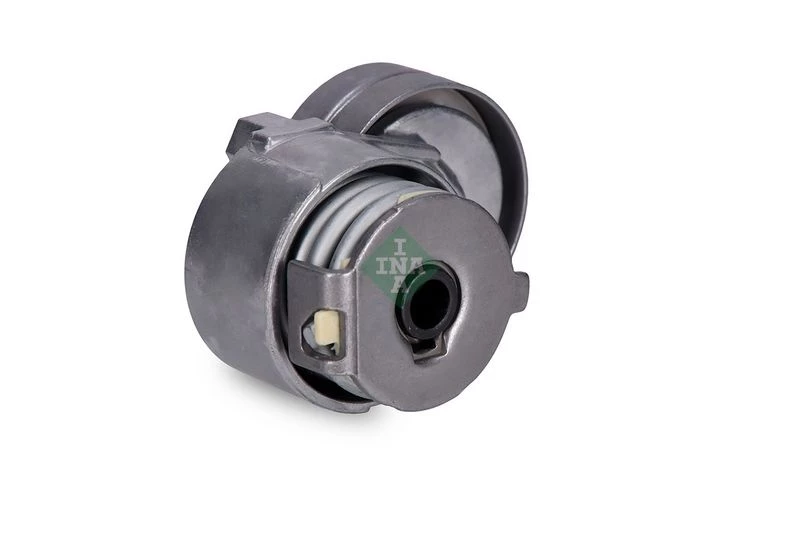

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Manufacturer Productnumber
    dacia 11 75 065 67R , 117506567R
    dacia 117506567R
    dacia 77 00 110 947 , 7700110947
    dacia 7700110947
    dacia 82 00 190 571 , 8200190571
    dacia 82 00 673 092 , 8200673092
    dacia 82 00 840 824 , 8200840824
    dacia 8200190571
    dacia 8200673092
    dacia 8200840824
    dacia 86 71 019 891 , 8671019891
    dacia 8671019891
    mitsubishi MW 3062 0661 , MW30620661
    mitsubishi MW30620661
    nissan 11750-00Q0A , 1175000Q0A
    nissan 11750-00Q0K , 1175000Q0K
    nissan 11750-00Q1B , 1175000Q1B
    nissan 11750-00QAA , 1175000QAA
    nissan 11750-00QAE , 1175000QAE
    nissan 1175000Q0A
    nissan 1175000Q0K
    nissan 1175000Q1B
    nissan 1175000QAA
    nissan 1175000QAE
    opel 44 01 567 , 4401567
    opel 44 09 587 , 4409587
    opel 44 33 452 , 4433452
    opel 44 49 671 , 4449671
    opel 44 51 679 , 4451679
    opel 4401567
    opel 4409587
    opel 4433452
    opel 4449671
    opel 4451679
    opel 9109567
    opel 93160004
    opel 93198089
    opel 93198659
    opel 93198732
    renault 11 75 065 67R , 117506567R
    renault 117506567R
    renault 77 00 110 947 , 7700110947
    renault 7700110947
    renault 82 00 190 571 , 8200190571
    renault 82 00 673 092 , 8200673092
    renault 82 00 840 824 , 8200840824
    renault 8200190571
    renault 8200673092
    renault 8200840824
    renault 86 71 019 891 , 8671019891
    renault 8671019891
    vauxhall 44 01 567 , 4401567
    vauxhall 44 09 587 , 4409587
    vauxhall 44 33 452 , 4433452
    vauxhall 44 49 671 , 4449671
    vauxhall 44 51 679 , 4451679
    vauxhall 4401567
    vauxhall 4409587
    vauxhall 4433452
    vauxhall 4449671
    vauxhall 4451679
    vauxhall 9109567
    vauxhall 93160004
    vauxhall 93198089
    vauxhall 93198659
    vauxhall 93198732
    volvo 30620661
    volvo 30638573
    volvo 31216269
    general motors 93198089
    general motors 93198659
    general motors 93198732
    Usage numbers
    AUTEX 654488
    BGA DC9508
    BLUE PRINT ADBP960006
    BREDA LORETT TOA3795
    CONTINENTAL CTAM V85589
    DAYCO APV2990
    FEBI BILSTEIN 32581
    GATES 7808-21368
    GATES 780821368
    GATES T38468
    GMB GAT32570
    HERTH+BUSS JAKOPARTS J1145039
    HUTCHINSON T0475
    IPD 15-3483
    IPD 153483
    QUINTON HAZELL QTA1218
    RUVILLE 55586
    SCHAEFFLER GRUPPE 534 0240 10
    SCHAEFFLER GRUPPE 534024010
    SKF VKM 36069
    SKF VKM36069
    SNR GA355.19
    SNR GA35519
    SWAG 60 93 2581
    SWAG 60932581
    TRIPLE FIVE 03.81295
    TRIPLE FIVE 0381295
    TRIPLE FIVE 86 71 019 891
    TRIPLE FIVE 8671019891
    TRIPLE FIVE 950622
    TRIPLE FIVE 950622R
    TRISCAN 8641 103027
    TRISCAN 8641103027
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    mitsubishi mitsubishi
    nissan nissan
    opel opel
    renault renault
    volvo volvo

    FAQ


    You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.


    Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.


    Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.


    Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.


    Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
    Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.


    The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
