Outer diameter (mm)	70
Width (mm)	24
Svhc	no svhc present!

Product number: 534 0047 10

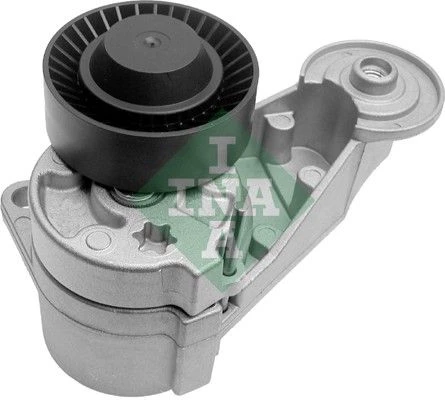

Ina Belt Tensioner V-ribbed Belt For Volvo S60 S80 V70 Xc70 Xc90

In stock

Shipping method	Delivery time	Stock
Shipping	18-8-2025	3

Price excl. vat.

£ 37,50

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

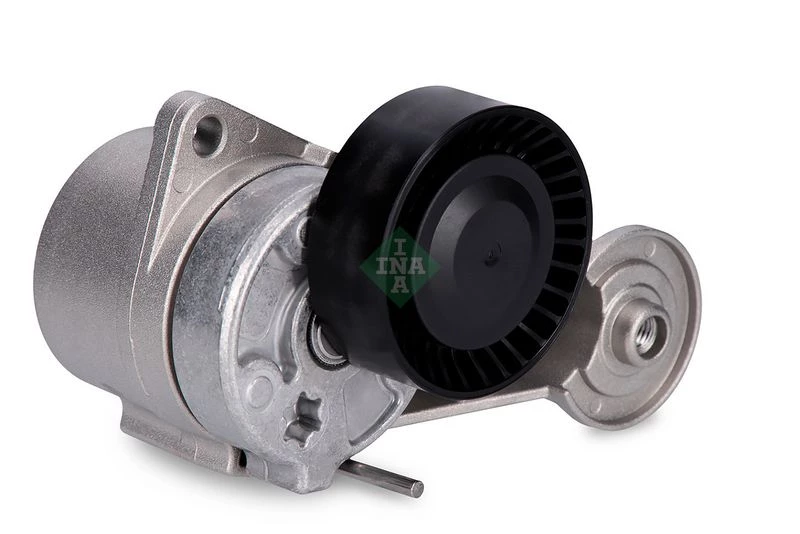

INA V‑ribbed belt tensioner 360 angle view

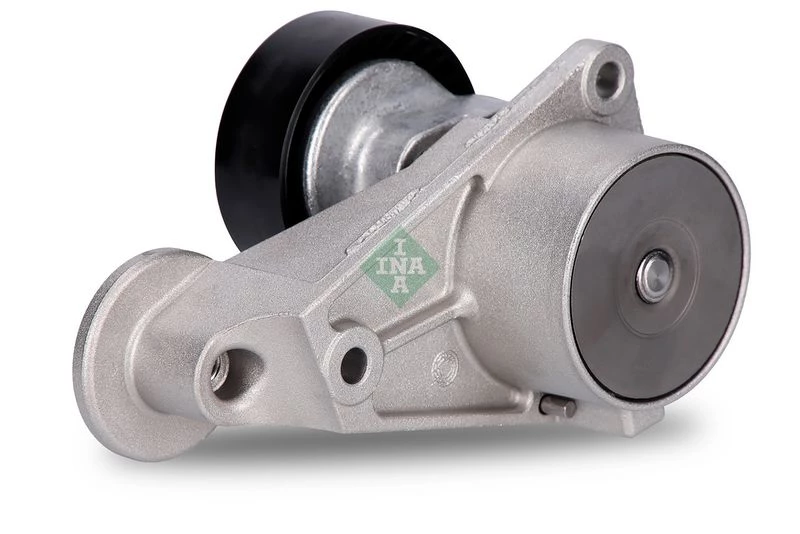

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
volvo	30637070
volvo	30637961
volvo	30757056
volvo	31251252
volvo	8653137

Usage numbers
BREDA LORETT TOA3567
CONTINENTAL CTAM V86804
DAYCO APV2277
FEBI BILSTEIN 26949
GATES 7808-21425
GATES 780821425
GATES T39025
GMB GAT20090
HK A890
HUTCHINSON T0382
IPD 10-0890
IPD 100890
QUINTON HAZELL QTA1263
RUVILLE 56534
SCHAEFFLER GRUPPE 534 0047 10
SCHAEFFLER GRUPPE 534004710
Schaeffler INA F-235076.04
Schaeffler INA F-235076.07
Schaeffler INA F-235076.4
Schaeffler INA F-238478
Schaeffler INA F23507604
Schaeffler INA F23507607
Schaeffler INA F2350764
Schaeffler INA F238478
SKF VKM 36220
SKF VKM36220
SNR GA365.36
SNR GA36536
TRIPLE FIVE Y1572

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
