    Schaeffler INA
    Svhc no svhc present!
    Product number: 534 0172 10

    Ina Belt Tensioner V-ribbed Belt For Vw Transporter

    Price excl. vat.
    £ 54,44

    Description


    INA Belt Drive Components

    V‑Ribbed Belt Tensioner

    For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

    OE‑grade quality Low noise Long service life

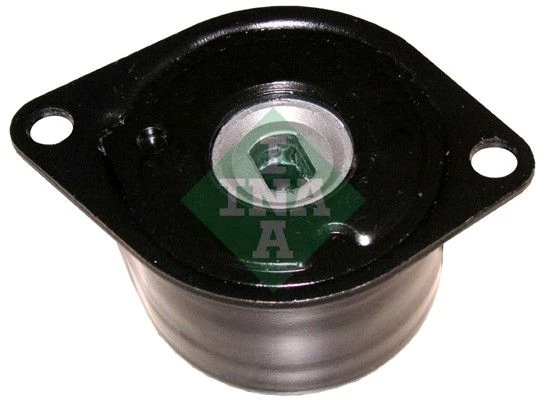

    INA V‑ribbed belt tensioner main view

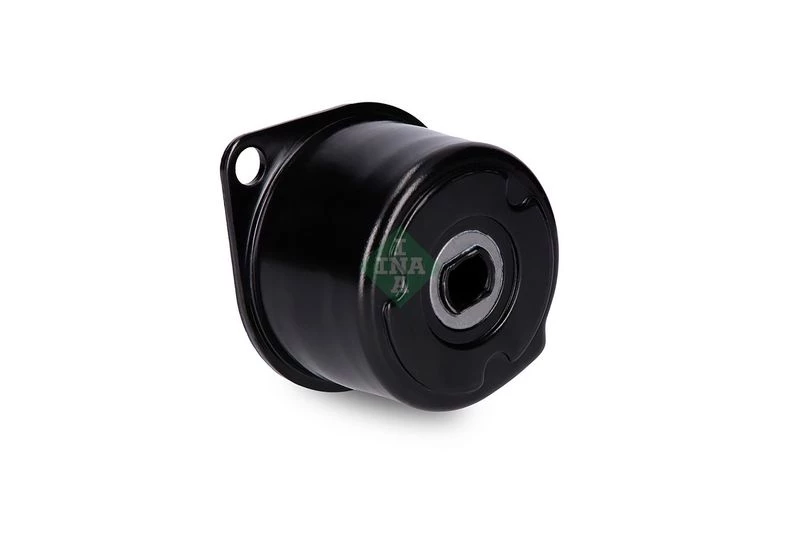

    INA V‑ribbed belt tensioner side view INA V‑ribbed belt tensioner 360 angle view INA V‑ribbed belt tensioner additional view

    When to Change

    • Noise: chirping/squeal at start‑up or with A/C load.
    • Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
    • Arm movement: tensioner arm flutters or sits off‑center.
    • Bearing condition: pulley feels rough or has play when spun by hand (engine off).
    • Contamination: oil/coolant on belt or pulley surfaces.
    Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

    How to Fit (Universal Guide)

    1. Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
    2. Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
    3. Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
    4. Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
    5. Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
    6. Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

    Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

    Usage numbers
    BREDA LORETT TOA3774
    DAYCO APV3186
    FEBI BILSTEIN 27814
    GATES 7808-21595
    GATES 780821595
    GATES T39195
    GMB GAT21830
    IPD 15-3091
    IPD 153091
    MEYLE 100 903 1130
    MEYLE 1009031130
    OPTIMAL 0-N1891
    OPTIMAL 0N1891
    RUVILLE 56300
    SCHAEFFLER GRUPPE 534 0172 10
    SCHAEFFLER GRUPPE 534017210
    SKF VKM 31005
    SKF VKM31005
    SWAG 30 92 7814
    SWAG 30927814
    TOPRAN 109 800
    TOPRAN 109800
    TRIPLE FIVE 03.80415
    TRIPLE FIVE 0380415
    TRIPLE FIVE 100918
    VAICO V10-2100
    VAICO V102100
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    vw vw
