Ø (mm)	90
Width (mm)	24.5
Svhc	no svhc present!
Width	9 cm
Length	9 cm

Product number: 532 0369 20

Ina Deflection Idler Guide Pulley V-ribbed Belt For Alfa Romeo Fiat Lancia 145 146 147

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 20,56

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

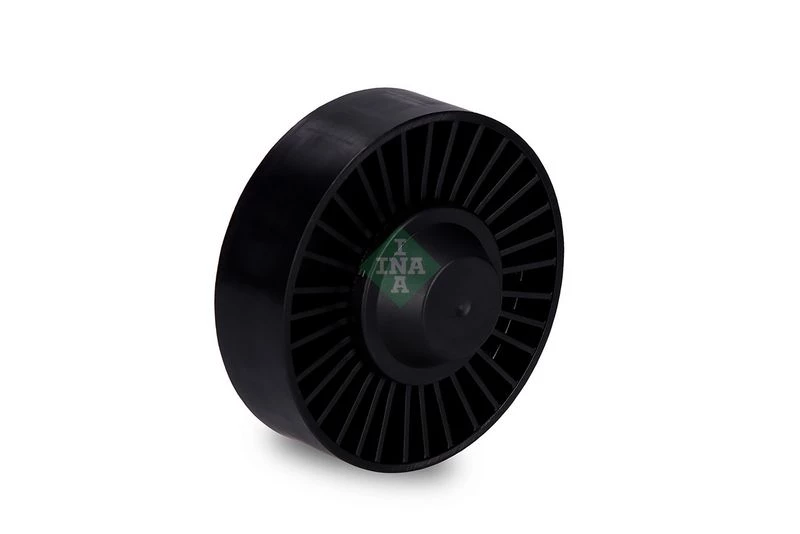

INA Deflection Guide Pulley alternative view 1

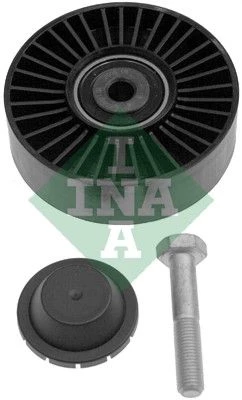

INA Deflection Guide Pulley alternative view 2

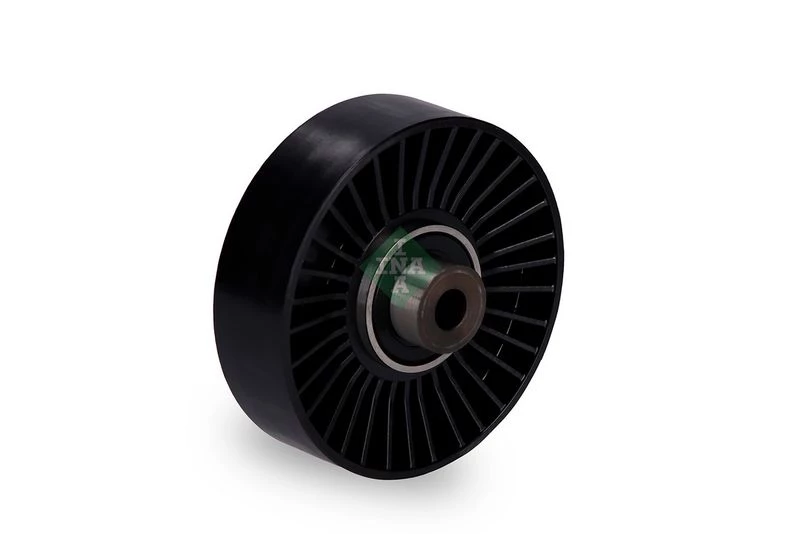

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
alfa romeo	60610908
alfa romeo	60812515
alfa romeo	73501924
fiat	60610908
fiat	73501924

Usage numbers
DAYCO APV2191
FEBI BILSTEIN 17600
GATES 7803-21101
GATES 780321101
GATES T36001
HK U947
HK U947-U
HK U947U
IPD 15-0947
IPD 150947
QUINTON HAZELL QTA716
QUINTON HAZELL QTT716
RUVILLE 55849
SCHAEFFLER GRUPPE 532 0369 20
SCHAEFFLER GRUPPE 532036920
Schaeffler INA F-556661.02
Schaeffler INA F-566661.02
Schaeffler INA F55666102
Schaeffler INA F56666102
SKF VKM 32001
SKF VKM 32001 C
SKF VKM32001
SKF VKM32001C
SNR GA358.92
SNR GA35892
SPIDAN 0.066849
SPIDAN 0066849
SWAG 70 03 0039
SWAG 70030039
TRIPLE FIVE 03.270
TRIPLE FIVE 03270
TRIPLE FIVE 300 4216
TRIPLE FIVE 3004216
TRIPLE FIVE 461.33.94
TRIPLE FIVE 4613394
VAICO V24-0132
VAICO V240132

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
