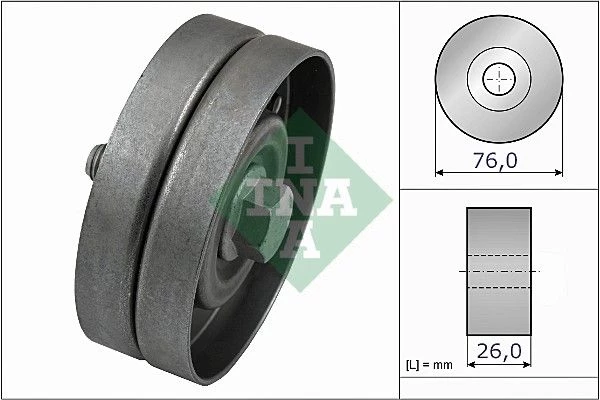

Ø (mm)	76
Width (mm)	26
Svhc	no svhc present!
Width	7.6 cm
Length	7.6 cm

Product number: 532 0326 30

Ina Deflection Idler Guide Pulley V-ribbed Belt For Audi Hyundai Kia Seat Vw A3 Bora E

In stock

Shipping method	Delivery time	Stock
Shipping	15-8-2025	3

Price excl. vat.

£ 24,19

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

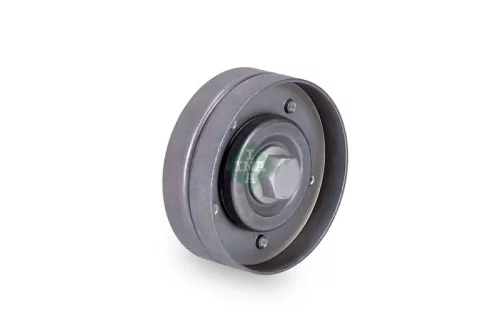

INA Deflection Guide Pulley alternative view 1

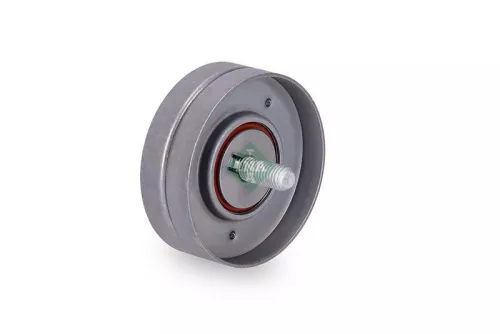

INA Deflection Guide Pulley alternative view 2

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	032 145 276 , 032145276
audi	032145276
seat	032 145 276 , 032145276
seat	032145276
skoda	032 145 276 , 032145276
skoda	032145276
vw	032 145 276 , 032145276
vw	032145276

Usage numbers
AIC 54770
AUTEX 651146
BREDA LORETT TOA3483
BREDA LORETT TOA43483
CONTINENTAL CTAM V85511
DAYCO APV2177
DAYCO DYV607
FEBI BILSTEIN 21918
GATES 7803-21183
GATES 780321183
GATES T36083
GMB GTC2910
GMB GTC2910-SCH
GMB GTC2910SCH
GMB GTD1254
HK U141
HK U141-U
HK U141U
IPD 15-0141
IPD 150141
MEYLE 100 009 0013
MEYLE 1000090013
OPTIMAL 0-N1310
OPTIMAL 0N1310
RUVILLE 55429
SCHAEFFLER GRUPPE 532 0326 30
SCHAEFFLER GRUPPE 532032630
SKF VKM 31207
SKF VKM 4790
SKF VKM31207
SKF VKM4790
SNR GA357.13
SNR GA35713
SPIDAN 0.066429
SPIDAN 0066429
SWAG 30 92 1918
SWAG 30921918
TOPRAN 108 172
TOPRAN 108172
TRIPLE FIVE 322 5466
TRIPLE FIVE 3225466
TRIPLE FIVE 950450
TRIPLE FIVE 951450
TRIPLE FIVE F-565354
TRIPLE FIVE F565354
TRIPLE FIVE R4113
VAICO V10-2099
VAICO V102099

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
seat
vw
