Ø (mm)	76
Width (mm)	26
Svhc	no svhc present!
Width	7.6 cm
Length	7.6 cm

Product number: 532 0346 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Audi Seat Skoda Skoda (Svw) Vw Vw

In stock

Shipping method	Delivery time	Stock
Shipping	14-8-2025	3

Price excl. vat.

£ 16,93

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

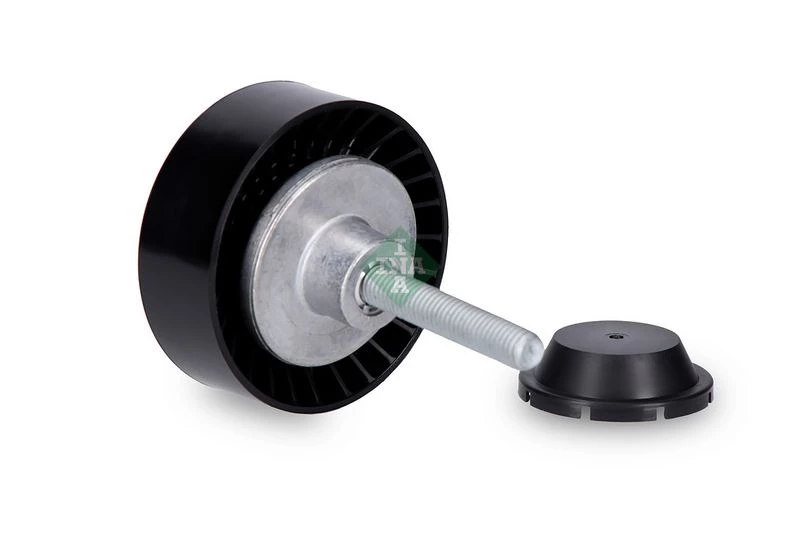

INA Deflection Guide Pulley alternative view 1

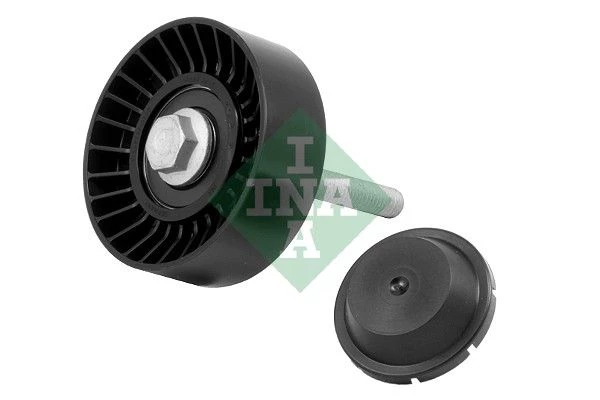

INA Deflection Guide Pulley alternative view 2

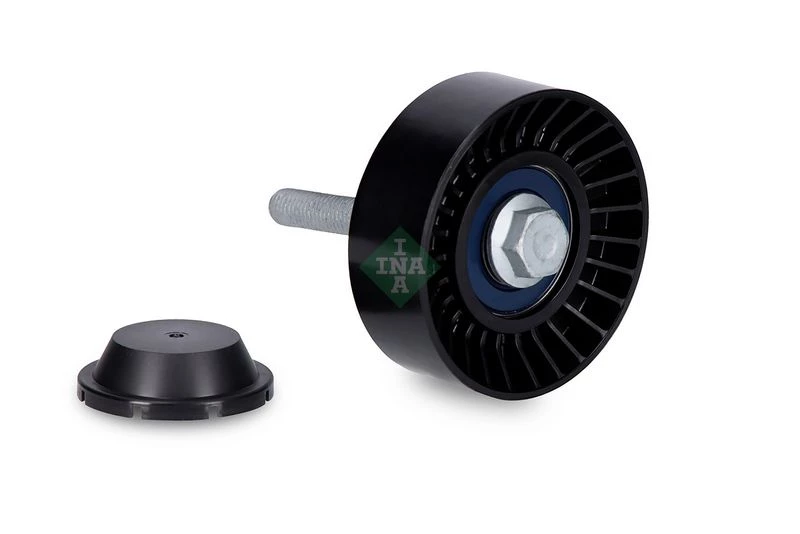

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	1J0 145 276 , 1J0145276
audi	1J0 145 276 B , 1J0145276B
audi	1J0145276
audi	1J0145276B
audi	6QD 145 276 , 6QD145276
audi	6QD145276
seat	1J0 145 276 , 1J0145276
seat	1J0 145 276 B , 1J0145276B
seat	1J0145276
seat	1J0145276B
seat	6QD 145 276 , 6QD145276
seat	6QD145276
skoda	1J0 145 276 , 1J0145276
skoda	1J0 145 276 B , 1J0145276B
skoda	1J0145276
skoda	1J0145276B
skoda	6QD 145 276 , 6QD145276
skoda	6QD145276
vw	1J0 145 276 , 1J0145276
vw	1J0 145 276 B , 1J0145276B
vw	1J0145276
vw	1J0145276B
vw	6QD 145 276 , 6QD145276
vw	6QD145276
vw (faw)	6QD 145 276 , 6QD145276
vw (faw)	6QD 145 276 B , 6QD145276B
vw (faw)	6QD145276
vw (faw)	6QD145276B
skoda (svw)	6QD 145 276 , 6QD145276
skoda (svw)	6QD145276
vw (svw)	6QD 145 276 , 6QD145276
vw (svw)	6QD145276

Usage numbers
AUTEX 652074
BREDA LORETT CR3649
BREDA LORETT TOA3649
CONTINENTAL CTAM V85531
DAYCO APV2523
FEBI BILSTEIN 30859
GATES 7803-21054
GATES 780321054
GATES T38054
GMB GTA0330
IPD 15-1069
IPD 151069
MEYLE 100 009 0019
MEYLE 1000090019
OPTIMAL 0-N1454
OPTIMAL 0N1454
QUINTON HAZELL QTA1311
RUVILLE 55779
SCHAEFFLER GRUPPE 532 0346 10
SCHAEFFLER GRUPPE 532034610
Schaeffler INA F-568238.01
Schaeffler INA F56823801
SKF VKM 31044
SKF VKM31044
SNR GA357.25
SNR GA35725
SWAG 30 93 0859
SWAG 30930859
TOPRAN 110 377
TOPRAN 110377
TRIPLE FIVE 03.80782
TRIPLE FIVE 0380782
VAICO V10-1813
VAICO V101813
