Ø (mm)	70
Width (mm)	26
Svhc	no svhc present!
Width	7 cm
Length	7 cm

Product number: 532 0224 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Bmw 3 Z3

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 18,14

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

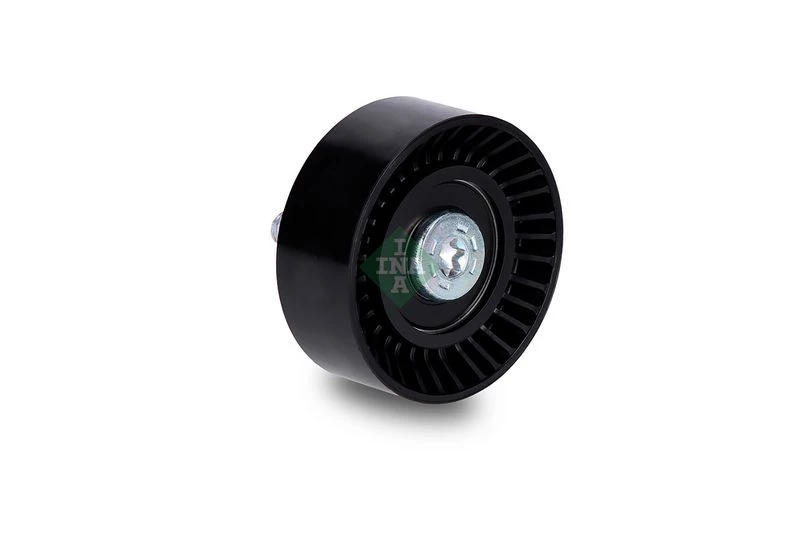

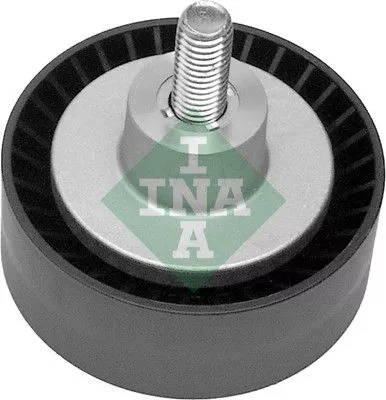

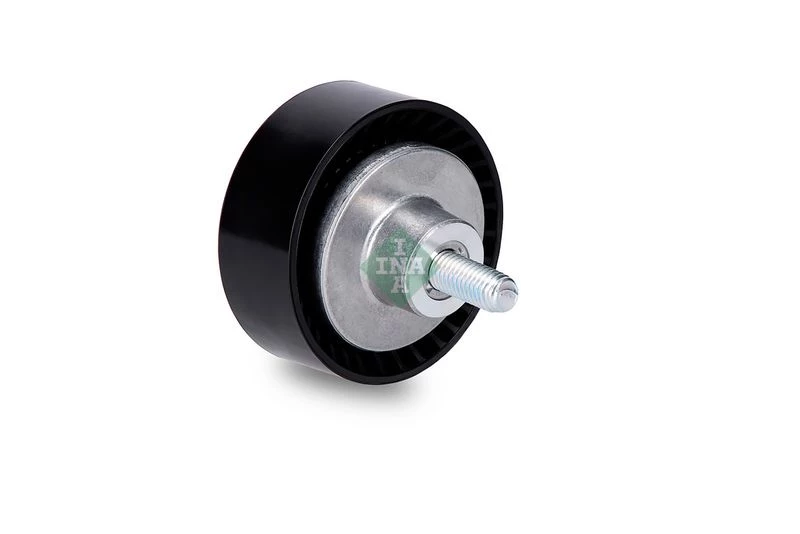

INA Deflection Guide Pulley alternative view 1

INA Deflection Guide Pulley alternative view 2

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
bmw	1 435 594 , 1435594
bmw	11 28 1 435 594 , 11281435594
bmw	11281435594
bmw	1435594
mini	1 435 594 , 1435594
mini	11 28 1 435 594 , 11281435594
mini	11281435594
mini	1435594

Usage numbers
AUTEX 641479
BREDA LORETT CR3028
BREDA LORETT TOA3028
DAYCO APV2151
FEBI BILSTEIN 11334
GATES 7803-21263
GATES 780321263
GATES T36163
HK S474
HUTCHINSON T0407
IPD 14-0474
IPD 140474
LEMFÖRDER 2471201
MEYLE 314 009 0009
MEYLE 3140090009
OPTIMAL 0-N1292
OPTIMAL 0N1292
QUINTON HAZELL QTA1056
RUVILLE 55020
SCHAEFFLER GRUPPE 532 0224 10
SCHAEFFLER GRUPPE 532022410
Schaeffler INA F-228269
Schaeffler INA F228269
SKF VKM 38226
SKF VKM38226
SNR GA350.50
SNR GA35050
SPIDAN 0.066020
SPIDAN 0066020
SWAG 20030037
TRIPLE FIVE 0211-06-05020P
TRIPLE FIVE 02110605020P
TRIPLE FIVE 03.80113
TRIPLE FIVE 0380113
TRIPLE FIVE 443 7648
TRIPLE FIVE 4437648
TRIPLE FIVE MBI-27360
TRIPLE FIVE MBI27360
TRIPLE FIVE RKT1829
TRIPLE FIVE Y1346
TRUCKTEC AUTOMOTIVE 08.19.105
TRUCKTEC AUTOMOTIVE 0819105
VAICO V20-0042
VAICO V200042
WILMINK GROUP WG1252816

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
bmw

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
