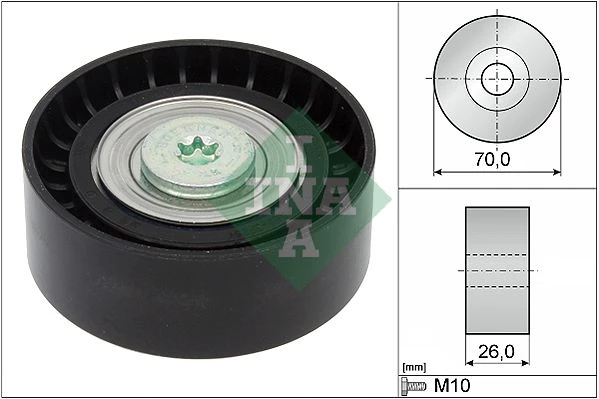

Ø (mm)	70
Width (mm)	26
Svhc	no svhc present!
Width	7 cm
Length	7 cm

Product number: 532 0434 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Citroën Fiat Lancia Peugeot 406 60

In stock

Shipping method	Delivery time	Stock
Shipping	14-8-2025	3

Price excl. vat.

£ 16,93

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

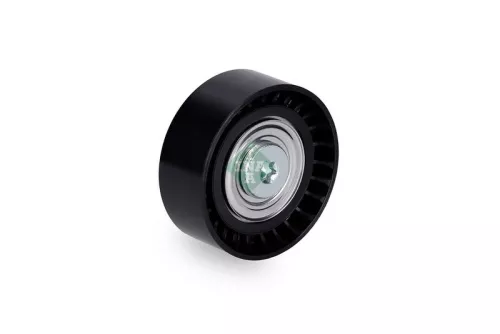

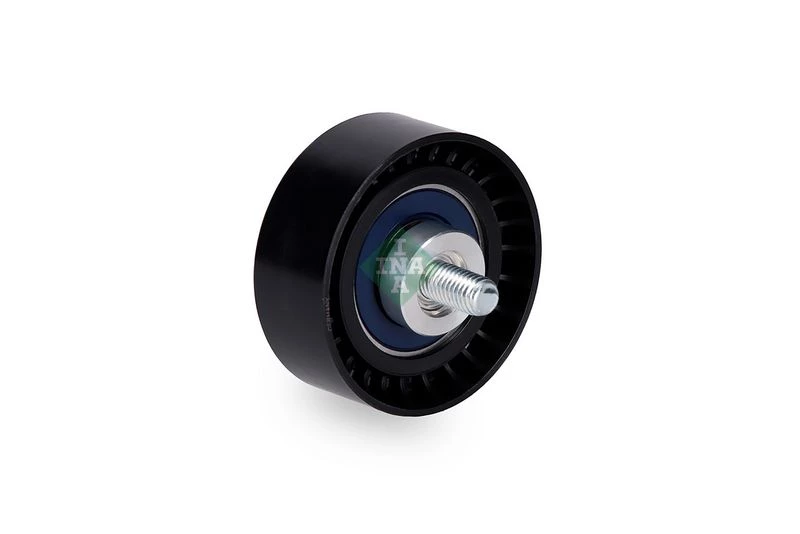

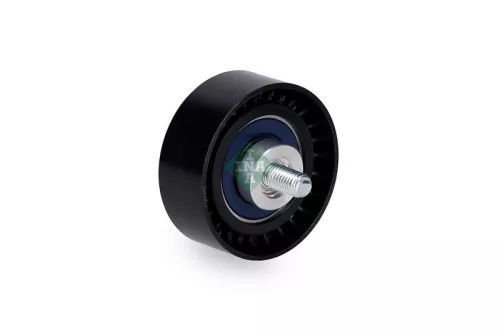

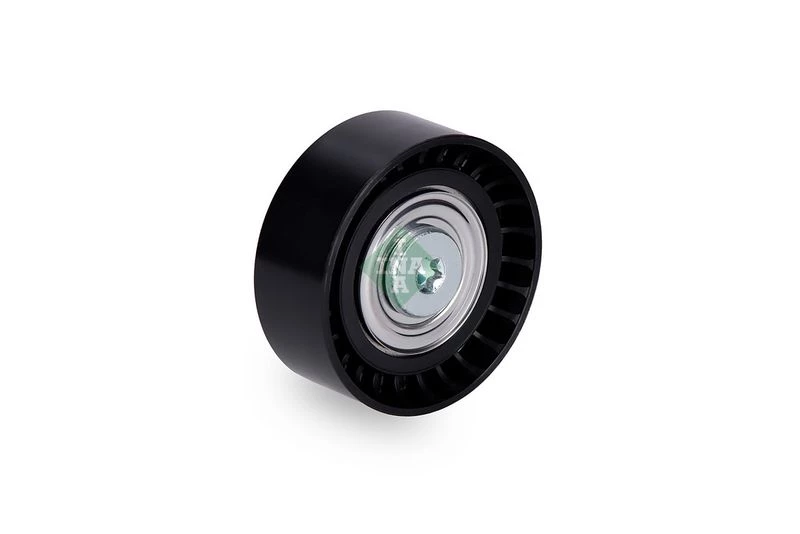

INA Deflection Guide Pulley alternative view 1

INA Deflection Guide Pulley alternative view 2

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	16 138 376 80 , 1613837680
citroËn	1613837680
citroËn	5751.76 , 575176
citroËn	575176
citroËn	96 318 474 , 96318474
citroËn	96318474
fiat	9631847480
peugeot	16 138 376 80 , 1613837680
peugeot	1613837680
peugeot	5751.76 , 575176
peugeot	575176
peugeot	96 318 474 , 96318474
peugeot	96318474

Usage numbers
AJUSA 5751.76
AJUSA 575176
AJUSA 96318474
BREDA LORETT CR3305
CONTINENTAL CTAM V85711
DAYCO APV1024
FEBI BILSTEIN 22351
GATES 7803-21112
GATES 780321112
GATES T36012
HK U372
HUTCHINSON T0294
IPD 15-0372
IPD 150372
OPTIMAL 0-N1413
OPTIMAL 0N1413
QUINTON HAZELL QTA1132
RUVILLE 55939
SCHAEFFLER GRUPPE 532 0434 10
SCHAEFFLER GRUPPE 532043410
Schaeffler INA F-236662
Schaeffler INA F-571057
Schaeffler INA F236662
Schaeffler INA F571057
SKF VKM 33045
SKF VKM33045
SNR GA359.84
SNR GA35984
SWAG 62 92 2351
SWAG 62922351
TRIPLE FIVE 0211-06-05939P
TRIPLE FIVE 02110605939P
TRIPLE FIVE 340 6711
TRIPLE FIVE 3406711
TRIPLE FIVE 380334
TRIPLE FIVE RKT2050
TRIPLE FIVE Y1506
TRISCAN 8641 102006
TRISCAN 8641102006

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
fiat
lancia
peugeot
