Ø (mm)	50
Width (mm)	26
Svhc	no svhc present!
Width	5 cm
Length	5 cm

Product number: 532 0335 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Citroën Fiat Peugeot Boxer Ducato

In stock

Shipping method	Delivery time	Stock
Shipping	18-8-2025	2

Price excl. vat.

£ 48,39

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

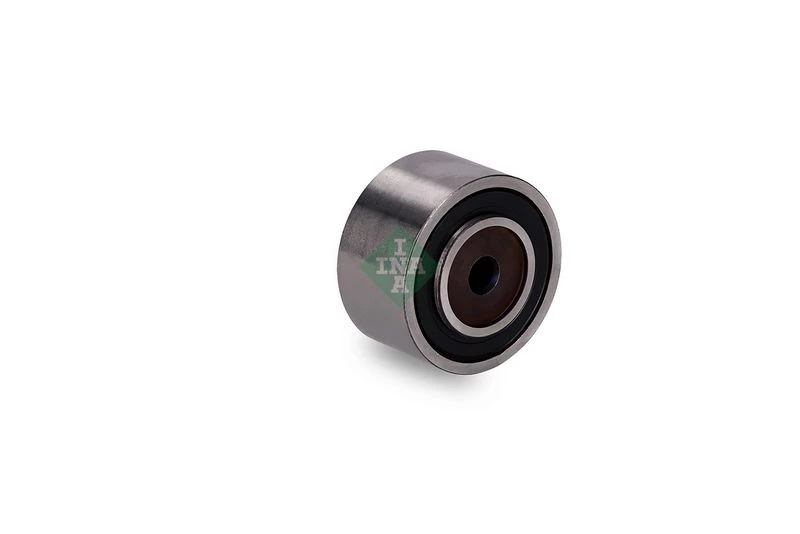

INA Deflection Guide Pulley alternative view 1

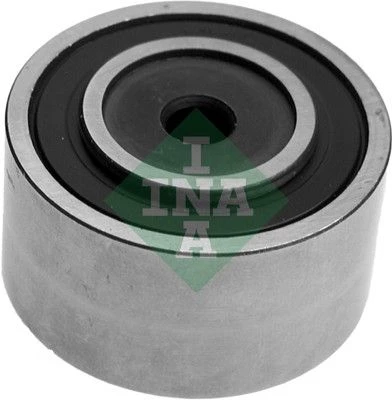

INA Deflection Guide Pulley alternative view 2

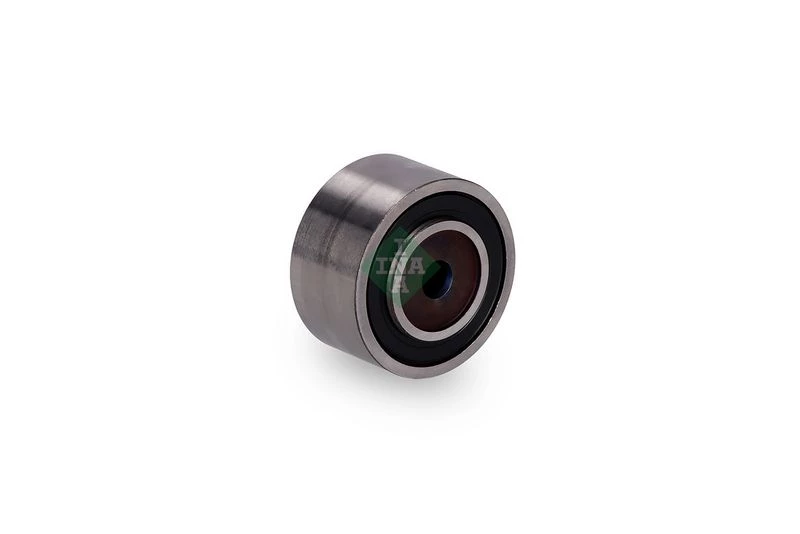

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	16 138 386 80 , 1613838680
citroËn	1613838680
citroËn	5751.92 , 575192
citroËn	5751.95 , 575195
citroËn	575192
citroËn	575195
citroËn	96 447 595 , 96447595
citroËn	96 447 885 , 96447885
citroËn	96447595
citroËn	96447885
fiat	1613838680
fiat	9644759580
fiat	9644788580
peugeot	16 138 386 80 , 1613838680
peugeot	1613838680
peugeot	5751.92 , 575192
peugeot	5751.95 , 575195
peugeot	575192
peugeot	575195
peugeot	96 447 595 , 96447595
peugeot	96 447 885 , 96447885
peugeot	96447595
peugeot	96447885

Usage numbers
AJUSA 5751.92
AJUSA 5751.95
AJUSA 575192
AJUSA 575195
AJUSA 96447595
AJUSA 96447885
BREDA LORETT TOA3512
DAYCO APV2183
FEBI BILSTEIN 19391
GATES 7803-21291
GATES 780321291
GATES T36191
HK U843
IPD 15-0843
IPD 150843
OPTIMAL 0-N1421
OPTIMAL 0N1421
QUINTON HAZELL QTA1175
RUVILLE 55955
SCHAEFFLER GRUPPE 532 0335 10
SCHAEFFLER GRUPPE 532033510
Schaeffler INA F-124115.02
Schaeffler INA F-124115.03
Schaeffler INA F12411502
Schaeffler INA F12411503
SKF VKM 33314
SKF VKM33314
SNR GA359.05
SNR GA35905
SWAG 62919391
TRIPLE FIVE 03.80711
TRIPLE FIVE 0380711
TRIPLE FIVE 300 2603
TRIPLE FIVE 3002603
TRIPLE FIVE Y3634
TRISCAN 8641 102015
TRISCAN 8641102015
VAICO V24-0144
VAICO V240144

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
