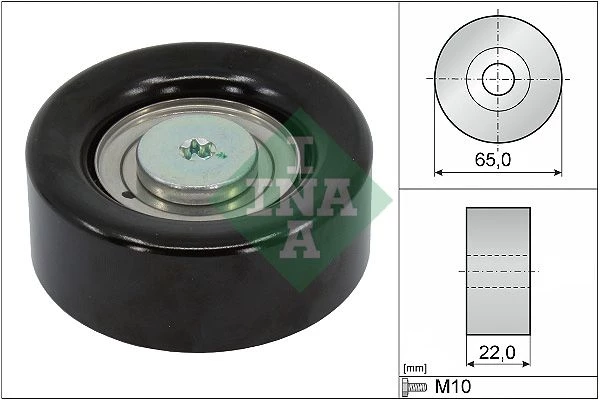

Ø (mm)	65
Width (mm)	22
Svhc	no svhc present!
Width	6.5 cm
Length	6.5 cm

Product number: 532 0639 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Hyundai Kia Accent Carens Cee'd Ce

In stock

Shipping method	Delivery time	Stock
Shipping	13-8-2025	3

Price excl. vat.

£ 18,14

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

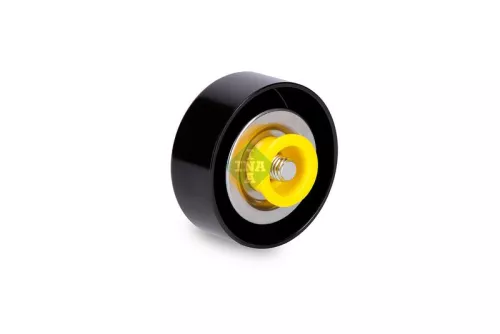

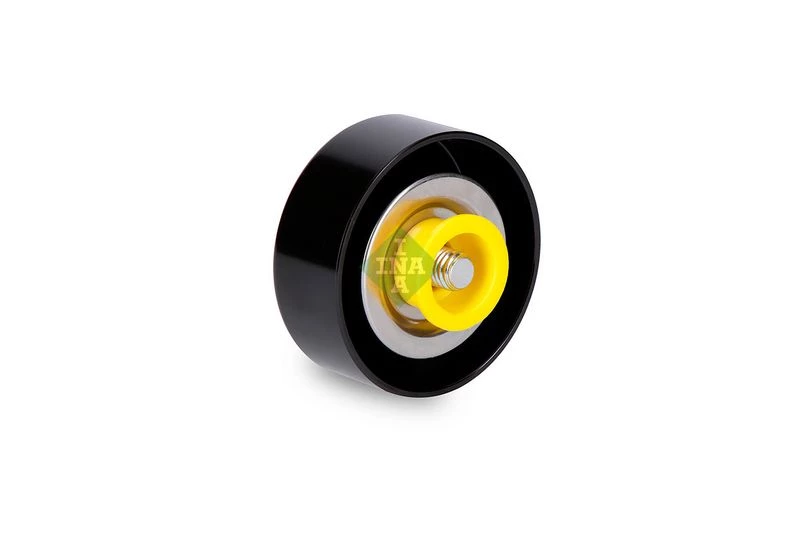

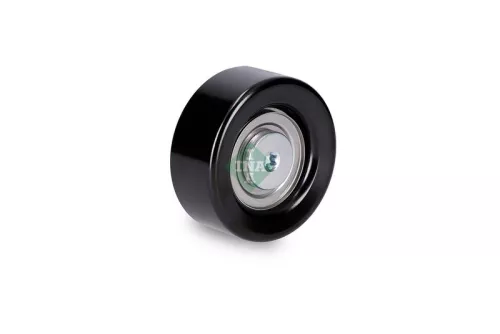

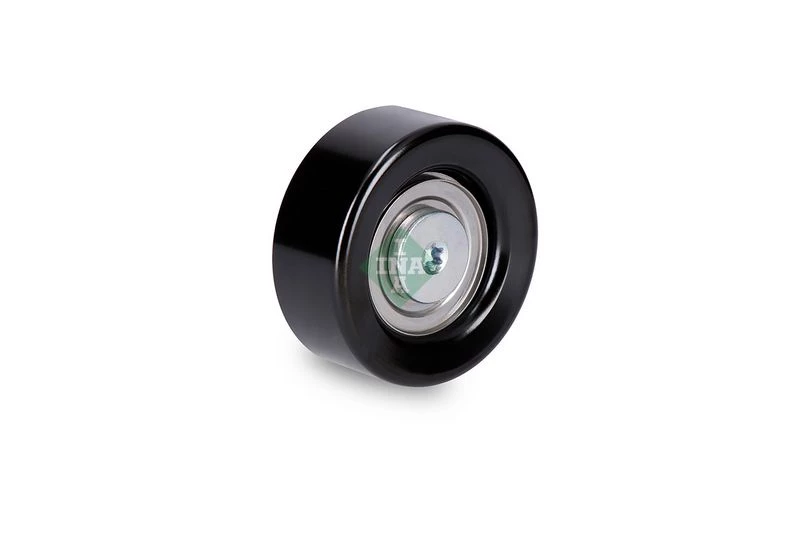

INA Deflection Guide Pulley alternative view 1

INA Deflection Guide Pulley alternative view 2

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
hyundai	25287-2A010 , 252872A010
hyundai	25287-2A110 , 252872A110
hyundai	252872A010
hyundai	252872A110
hyundai	25288-2A600 , 252882A600
hyundai	25288-2A800 , 252882A800
hyundai	25288-2A810 , 252882A810
hyundai	25288-2A820 , 252882A820
hyundai	25288-2A830 , 252882A830
hyundai	252882A600
hyundai	252882A800
hyundai	252882A810
hyundai	252882A820
hyundai	252882A830
hyundai	28288-2A600 , 282882A600
hyundai	282882A600
kia	25287-2A010 , 252872A010
kia	25287-2A110 , 252872A110
kia	252872A010
kia	252872A110
kia	25288-2A600 , 252882A600
kia	25288-2A800 , 252882A800
kia	25288-2A810 , 252882A810
kia	25288-2A820 , 252882A820
kia	25288-2A830 , 252882A830
kia	252882A600
kia	252882A800
kia	252882A810
kia	252882A820
kia	252882A830
kia	28288-2A600 , 282882A600
kia	282882A600

Usage numbers
BLUE PRINT ADG096517
BREDA LORETT CR5373
DAYCO APV3217
GATES 7803-21558
GATES 780321558
GATES T36458
HERTH+BUSS JAKOPARTS J1140349
HUTCHINSON G9003
IPD 15-3895
IPD 153895
JAPANPARTS RP-H06
JAPANPARTS RPH06
OPTIMAL 0-N2429
OPTIMAL 0N2429
RUVILLE 58438
SCHAEFFLER GRUPPE 532 0639 10
SCHAEFFLER GRUPPE 532063910
Schaeffler INA F-582028
Schaeffler INA F-582028.02
Schaeffler INA F-623718
Schaeffler INA F-623718.BSRA-CO3#N
Schaeffler INA F582028
Schaeffler INA F58202802
Schaeffler INA F623718
Schaeffler INA F623718BSRACO3N
SKF VKM64041
SNR GA384.13
SNR GA38413
TRIPLE FIVE 03.81142
TRIPLE FIVE 0381142
TRISCAN 8641 432010
TRISCAN 8641432010

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
hyundai
kia
