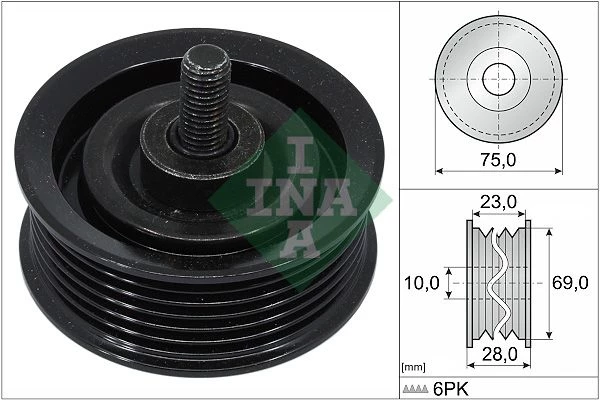

Material	metal
Ø (mm)	75
Width (mm)	28
Number of ribs	6
Svhc	no svhc present!
Width	7.5 cm
Length	7.5 cm

Product number: 532 0744 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Hyundai Kia Grand Santa Fé Ix35 Sa

In stock

Shipping method	Delivery time	Stock
Shipping	18-8-2025	3

Price excl. vat.

£ 26,61

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

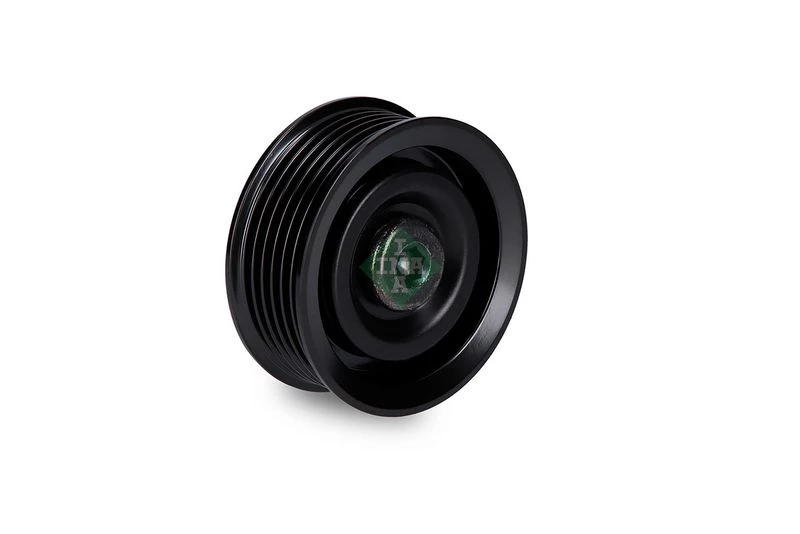

INA Deflection Guide Pulley alternative view 1

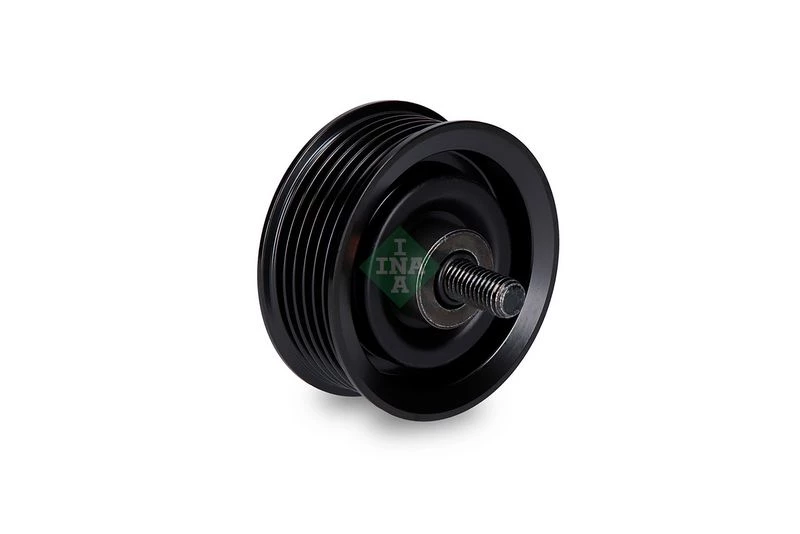

INA Deflection Guide Pulley alternative view 2

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
hyundai	25287-27060 , 2528727060
hyundai	2528727060
kia	25287-27060 , 2528727060
kia	2528727060

Usage numbers
BREDA LORETT TOA4596
FEBI BILSTEIN 100350
GATES 7803-21510
GATES 780321510
GATES T36410
GMB GTC1900
GMB GTC1900-SCH
GMB GTC1900SCH
GMB GTD1455
HERTH+BUSS JAKOPARTS J1140543
HUTCHINSON T0506
IPD 15-4003
IPD 154003
OPTIMAL 0-N2377
OPTIMAL 0N2377
RUVILLE 58451
SCHAEFFLER GRUPPE 532 0744 10
SCHAEFFLER GRUPPE 532074410
SKF VKM 65078
SKF VKM65078
SWAG 91 10 0350
SWAG 91100350

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
hyundai
kia
