Ø (mm)	60
Width (mm)	26
Svhc	no svhc present!
Width	6 cm
Length	6 cm

Product number: 532 0554 10

Ina Deflection Idler Guide Pulley V-ribbed Belt For Suzuki Grand Vitara

In stock

Shipping method	Delivery time	Stock
Shipping	18-8-2025	3

Price excl. vat.

£ 27,82

Add to cart

Description

INA Belt Drive Components

Deflection / Guide Pulley – V-ribbed Belt

The INA Deflection Guide Pulley maintains the correct routing and tension of the V-ribbed belt in the front end accessory drive (FEAD) system. Built to OE standards, it ensures smooth belt tracking, reduces wear, and prolongs the life of the entire belt drive system.

OE-grade bearings Precision fit Long service life

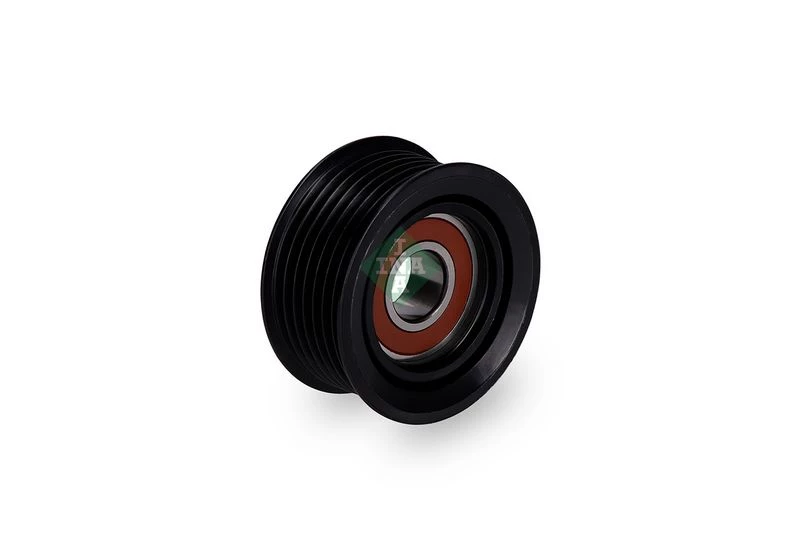

INA Deflection Guide Pulley alternative view 1

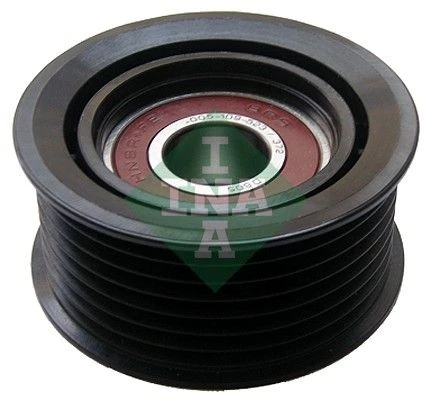

INA Deflection Guide Pulley alternative view 2

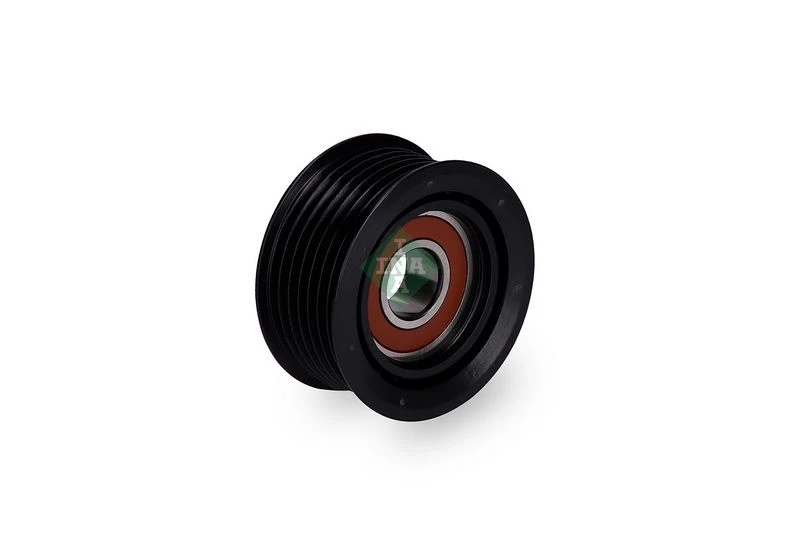

INA Deflection Guide Pulley alternative view 3

Key Features

High-quality bearings: Sealed for long-lasting performance and protection from contaminants.
Precision machining: Ensures perfect belt tracking and reduced NVH (Noise, Vibration, Harshness).
Durable materials: Resistant to heat, wear, and corrosion in harsh engine environments.

When to Replace

Belt squeal, chirp, or tracking issues.
Visible pulley damage, cracks, or excessive wear.
Bearing noise or roughness when spun by hand.
Belt tensioner replacement — best practice to replace idlers and guide pulleys at the same time.

Tip: Replace pulleys whenever you change the belt or tensioner to ensure maximum belt drive reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Note belt routing.
Remove belt: Release tensioner and slip belt off pulley.
Remove old pulley: Unbolt pulley, noting any washers/spacers.
Inspect: Check mounting surface and bolt for wear or damage.
Install new INA pulley: Torque to manufacturer’s specifications.
Refit belt: Ensure correct routing and rib seating.
Test run: Start engine, listen for noise, and observe belt tracking.

Always use the correct torque settings and follow your vehicle’s workshop manual.

Manufacturer	Productnumber
suzuki	95131-67J00 , 9513167J00
suzuki	95131-76K00 , 9513176K00
suzuki	9513167J00
suzuki	9513176K00

Usage numbers
BREDA LORETT TOA5292
FEBI BILSTEIN 30260
GATES 7803-21539
GATES 780321539
GATES T36439
IPD 15-3542
IPD 153542
OPTIMAL 0-N1965
OPTIMAL 0N1965
RUVILLE 57707
SCHAEFFLER GRUPPE 532 0554 10
SCHAEFFLER GRUPPE 532055410
Schaeffler INA F-554327
Schaeffler INA F554327
SKF VKM 66022
SKF VKM66022
SWAG 84 93 0260
SWAG 84930260
TRISCAN 8641 692002
TRISCAN 8641692002

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
suzuki
