Supplementary article/info 2	requires special tools for mounting

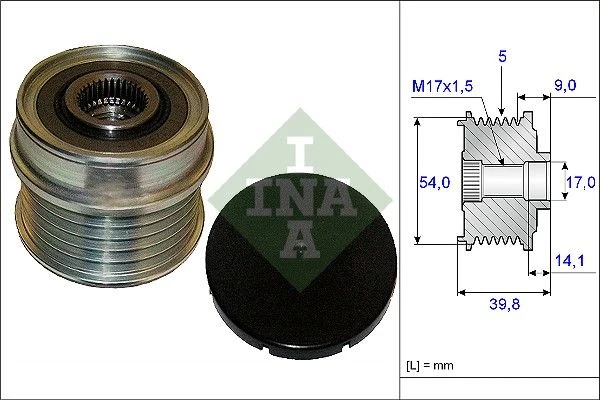

Width (mm)	39.8
Ø1/ Ø2 (mm)	54,0/17,0
For manufacturer number	f-558432.xx
Number of grooves	5
Svhc	no svhc present!
Distance to first groove (mm)	9

Product number: 535 0171 10

Ina Overrunning Alternator Clutch Pulley For Abarth Alfa Romeo Chrysler Fiat Jeep Lancia

Out of stock

Price incl. vat.

£ 21,72

Notify me when back in stock

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

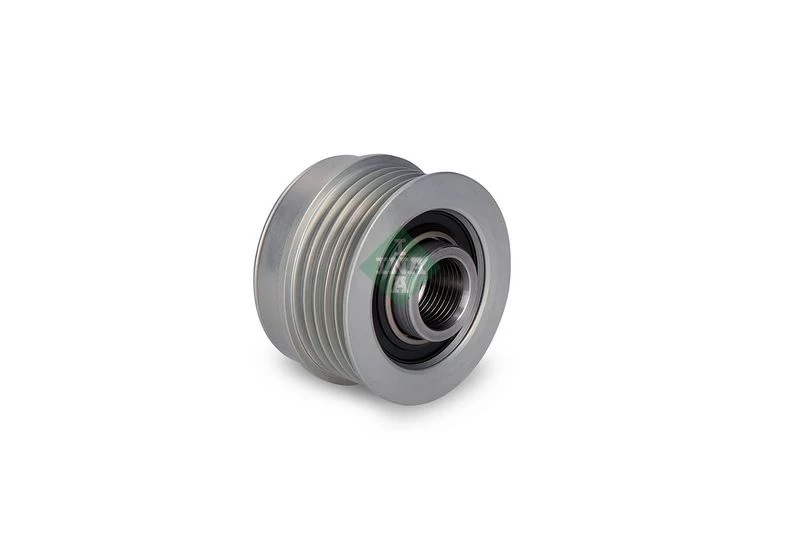

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
alfa romeo	77364616
fiat	51788658
fiat	51837747
fiat	51854903
fiat	51874104
fiat	51874105
fiat	51929094
fiat	51929095
fiat	52003527
fiat	77364616
fiat	MS1210411440
jeep	51874105
jeep	77364616
lancia	77364616
opel	12 02 289 , 1202289
opel	1202289
vauxhall	12 02 289 , 1202289
vauxhall	1202289
general motors	95512948

Usage numbers
AS-PL AFP6025
BREDA LORETT CR 3863
BREDA LORETT CR3863
CONTINENTAL CTAM AP9094
DAYCO ALP2440
DENSO 101210-1080
DENSO 101210-1081
DENSO 101210-1670
DENSO 1012101080
DENSO 1012101081
DENSO 1012101670
DENSO MS121041-1440
DENSO MS1210411440
FEBI BILSTEIN 10175
GATES 7789-10107
GATES 778910107
GATES OAP7132
LUCAS ELECTRICAL LOPA0135
RUVILLE 56029
SCHAEFFLER GRUPPE 535 0171 10
SCHAEFFLER GRUPPE 535017110
Schaeffler INA F-558432.02
Schaeffler INA F55843202
SKF VKM 03209
SKF VKM03209
TRIPLE FIVE 3 5373 1
TRIPLE FIVE 333069
TRIPLE FIVE 353730
TRIPLE FIVE 353731
TRIPLE FIVE GA758.06
TRIPLE FIVE GA75806
ZEN 5654

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
abarth
alfa romeo
fiat
jeep
lancia
opel
