Supplementary article/info 2	requires special tools for mounting
For manufacturer number	f-238822.xx
Number of grooves	6
Svhc	no svhc present!

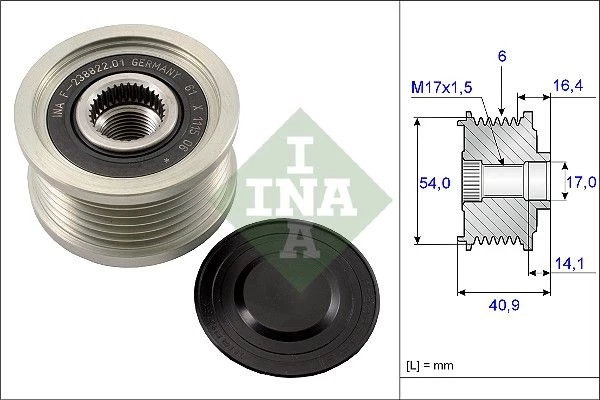

Distance to first groove (mm)	16.4

Product number: 535 0112 10

Ina Overrunning Alternator Clutch Pulley For Alfa Romeo Fiat Lancia Opel Saab Vauxhall 15

In stock

Shipping method	Delivery time	Stock
Shipping	18-8-2025	3

Price excl. vat.

£ 24,19

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

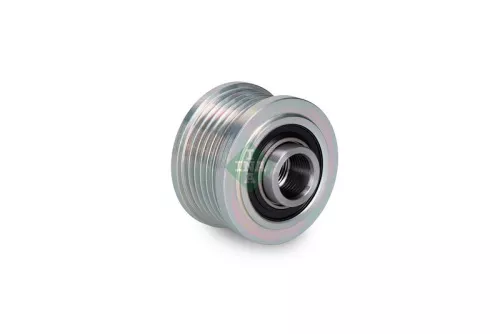

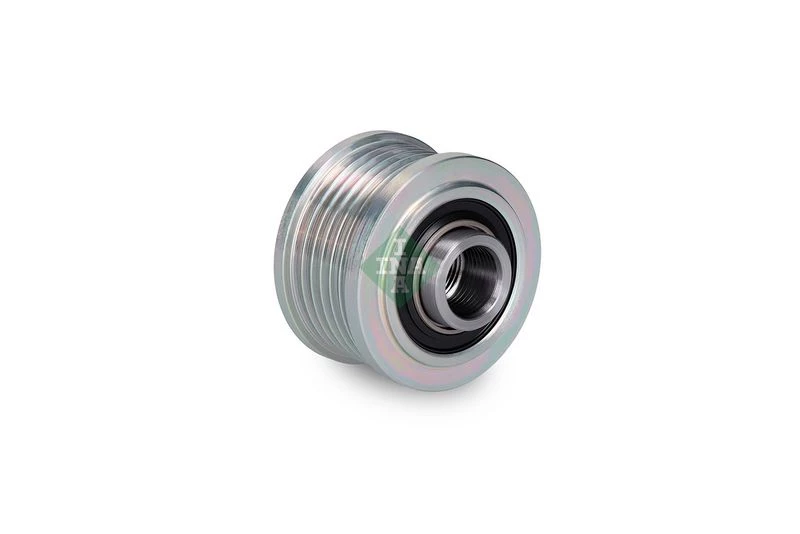

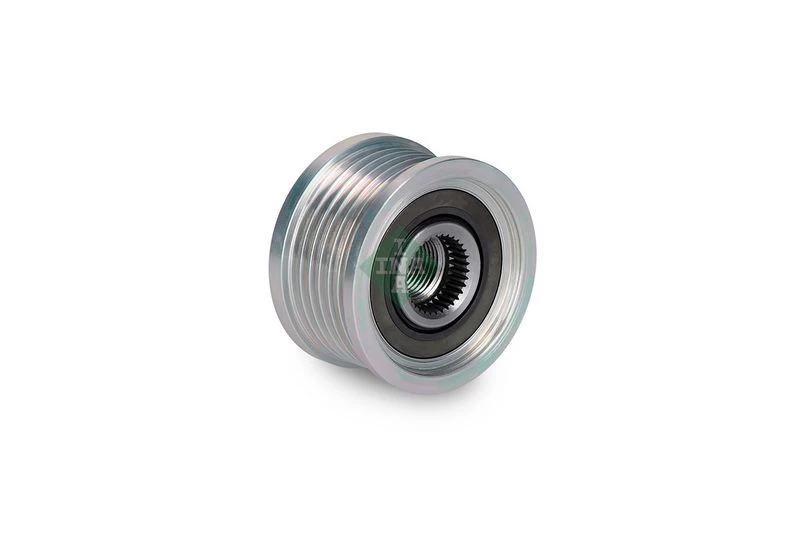

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
alfa romeo	77364725
fiat	51727338
fiat	51727339
fiat	51764265
fiat	51793678
fiat	51854901
fiat	51854902
fiat	51859058
fiat	51944891
fiat	52003506
fiat	52003507
fiat	71794570
fiat	71797184
fiat	77363948
fiat	77364725
lancia	77363948
lancia	77364725
opel	12 02 272 , 1202272
opel	12 02 274 , 1202274
opel	12 05 029 , 1205029
opel	1202272
opel	1202274
opel	1205029
saab	12 759 595 , 12759595
saab	12 759 596 , 12759596
saab	12759595
saab	12759596
saab	93 169 260 , 93169260
saab	93169260
vauxhall	12 02 272 , 1202272
vauxhall	12 02 274 , 1202274
vauxhall	12 05 029 , 1205029
vauxhall	1202272
vauxhall	1202274
vauxhall	1205029
general motors	95511968
general motors	95512068
general motors	95520426

Usage numbers
AS-PL AFP6013
BREDA LORETT CR 3838
BREDA LORETT CR3838
CONTINENTAL CTAM AP9054
DAYCO ALP2463
DENSO 101210-0160
DENSO 101210-0162
DENSO 101210-0870
DENSO 101210-0871
DENSO 101210-1090
DENSO 101210-1091
DENSO 101210-1101
DENSO 1012100160
DENSO 1012100162
DENSO 1012100870
DENSO 1012100871
DENSO 1012101090
DENSO 1012101091
DENSO 1012101101
DENSO 121041-1140
DENSO 1210411140
FEBI BILSTEIN 31541
FLENNOR FGF0025
GATES 7789-10051
GATES 778910051
GATES OAP7052
HUTCHINSON DB0278
IPD 15-3361
IPD 153361
LUCAS ELECTRICAL LOPA0095
RUVILLE 56032
SCHAEFFLER GRUPPE 535 0112 10
SCHAEFFLER GRUPPE 535011210
Schaeffler INA F-238822
Schaeffler INA F-238822.01
Schaeffler INA F-238822.02
Schaeffler INA F238822
Schaeffler INA F23882201
Schaeffler INA F23882202
SKF VKM 03204
SKF VKM03204
SNR GA758.04
SNR GA75804
SWAG 70 93 1541
SWAG 70931541
TRIPLE FIVE 3 5357 1
TRIPLE FIVE 330287
TRIPLE FIVE 353570
TRIPLE FIVE 353571
VALEO 588045
ZEN 5528
