Supplementary article/info 2	requires special tools for mounting

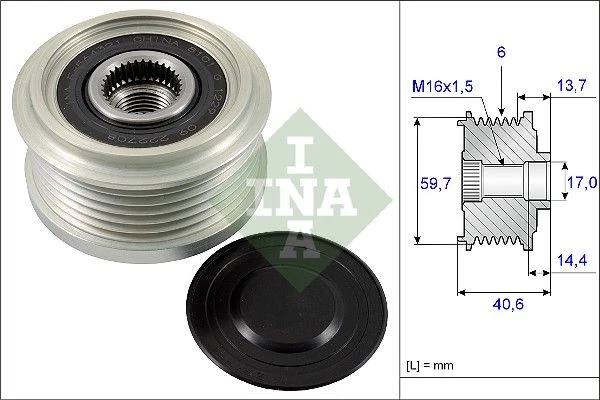

Width (mm)	40.6
Ø1/ Ø2 (mm)	59,7/17,0
For manufacturer number	f-564321.xx
Number of grooves	6
Svhc	no svhc present!
Distance to first groove (mm)	13.7

Product number: 535 0228 10

Ina Overrunning Alternator Clutch Pulley For Chevrolet Opel Vauxhall Astra Astra J Cruze

In stock

Shipping method	Delivery time	Stock
Shipping	19-8-2025	3

Price excl. vat.

£ 25,35

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

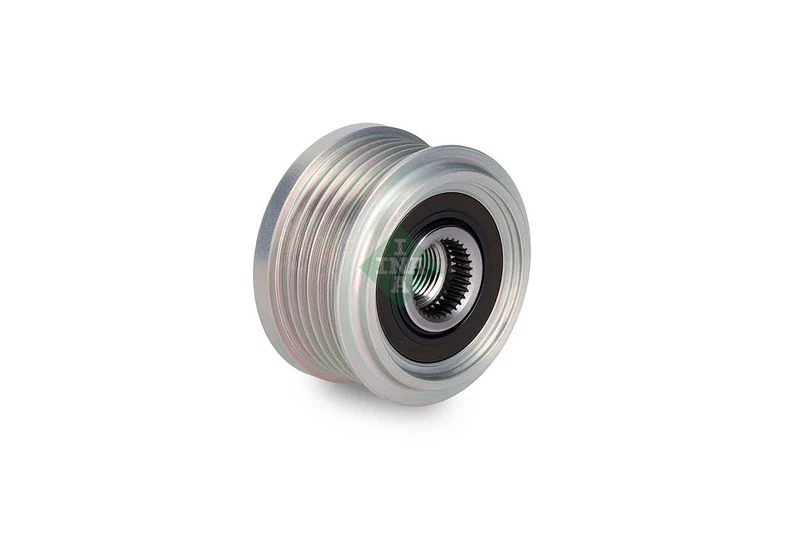

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
chevrolet	13500187
chevrolet	13579626
chevrolet	13579675
chevrolet	55566587
opel	12 02 118 , 1202118
opel	12 02 264 , 1202264
opel	12 04 188 , 1204188
opel	1202118
opel	1202264
opel	1204188
vauxhall	12 02 118 , 1202118
vauxhall	12 02 264 , 1202264
vauxhall	12 04 188 , 1204188
vauxhall	1202118
vauxhall	1202264
vauxhall	1204188
general motors	13500187
general motors	13579626
general motors	55566587

Usage numbers
AS-PL AFP1003
BREDA LORETT CR 4548
BREDA LORETT CR4548
DAYCO ALP2464
DELPHI 222708
FEBI BILSTEIN 38261
GATES 7789-10162
GATES 778910162
GATES OAP7162
IPD 15-3788
IPD 153788
RUVILLE 59993
SCHAEFFLER GRUPPE 535 0228 10
SCHAEFFLER GRUPPE 535022810
Schaeffler INA F-564321
Schaeffler INA F-564321.01
Schaeffler INA F564321
Schaeffler INA F56432101
SKF VKM 03517
SKF VKM03517
SWAG 40 93 8261
SWAG 40938261
TRIPLE FIVE 3 5481 0
TRIPLE FIVE 3 5481 1
TRIPLE FIVE 333699
TRIPLE FIVE 354810
TRIPLE FIVE 354811
ZEN 5626
