Supplementary article/info 2	requires special tools for mounting

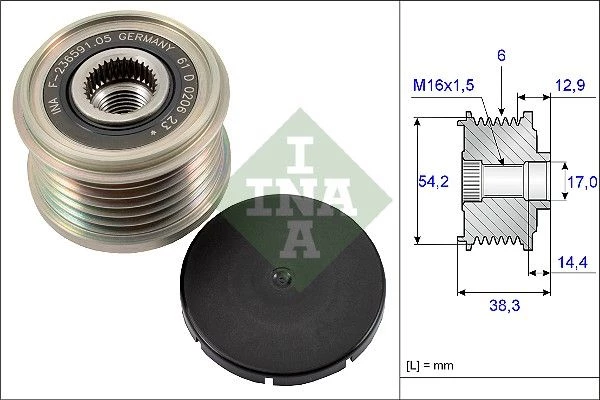

For manufacturer number	f-236591.05/.07
Number of grooves	6
Svhc	no svhc present!
Distance to first groove (mm)	12.9

Product number: 535 0194 10

Ina Overrunning Alternator Clutch Pulley For Citroën Ds Fiat Ford Ford Asia & Oceania Jee

In stock

Shipping method	Delivery time	Stock
Shipping	13-8-2025	3

Price excl. vat.

£ 25,40

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

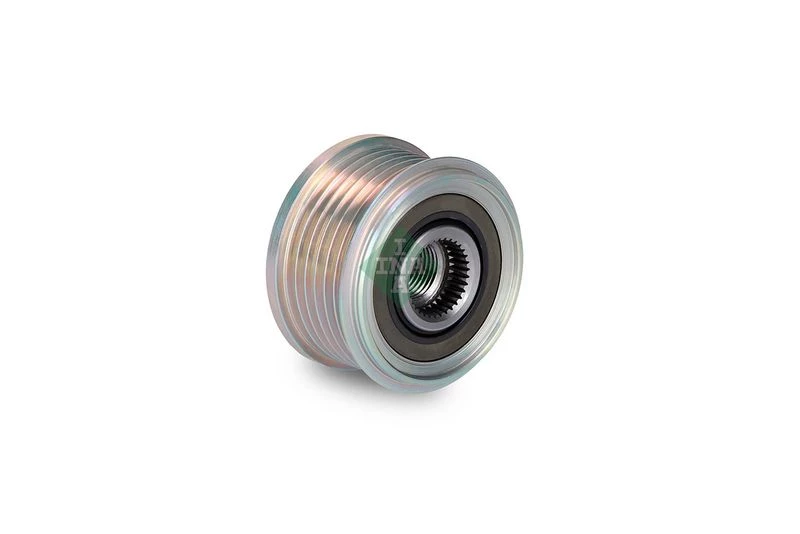

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
citroËn	16 068 569 80 , 1606856980
citroËn	16 068 591 80 , 1606859180
citroËn	16 080 645 80 , 1608064580
citroËn	16 090 160 80 , 1609016080
citroËn	16 099 572 80 , 1609957280
citroËn	16 196 079 80 , 1619607980
citroËn	16 242 304 80 , 1624230480
citroËn	16 373 027 80 , 1637302780
citroËn	16 373 028 80 , 1637302880
citroËn	16 482 321 80 , 1648232180
citroËn	16 754 601 80 , 1675460180
citroËn	1606856980
citroËn	1606859180
citroËn	1608064580
citroËn	1609016080
citroËn	1609957280
citroËn	1619607980
citroËn	1624230480
citroËn	1637302780
citroËn	1637302880
citroËn	1648232180
citroËn	1675460180
citroËn	212000972
citroËn	26 107 11B , 2610711B
citroËn	2610711B
citroËn	5702 H0 , 5702H0
citroËn	5702 H7 , 5702H7
citroËn	5702 J4 , 5702J4
citroËn	5702 J9 , 5702J9
citroËn	5702 K8 , 5702K8
citroËn	5702 K9 , 5702K9
citroËn	5702H0
citroËn	5702H7
citroËn	5702J4
citroËn	5702J9
citroËn	5702K8
citroËn	5702K9
citroËn	5705 AS , 5705AS
citroËn	5705 CS , 5705CS
citroËn	5705 CT , 5705CT
citroËn	5705 EE , 5705EE
citroËn	5705 EY , 5705EY
citroËn	5705 J4 , 5705J4
citroËn	5705 KC , 5705KC
citroËn	5705 KR , 5705KR
citroËn	5705 KV , 5705KV
citroËn	5705AS
citroËn	5705CS
citroËn	5705CT
citroËn	5705EE
citroËn	5705EY
citroËn	5705J4
citroËn	5705KC
citroËn	5705KR
citroËn	5705KV
citroËn	96 552 960 80 , 9655296080
citroËn	96 557 337 80 , 9655733780
citroËn	96 640 742 80 , 9664074280
citroËn	96 655 806 80 , 9665580680
citroËn	96 656 177 80 , 9665617780
citroËn	96 708 995 80 , 9670899580
citroËn	96 780 488 80 , 9678048880
citroËn	96 780 494 80 , 9678049480
citroËn	96 880 853 80 , 9688085380
citroËn	9655296080
citroËn	9655733780
citroËn	9664074280
citroËn	9665580680
citroËn	9665617780
citroËn	9670899580
citroËn	9678048880
citroËn	9678049480
citroËn	9688085380
citroËn	98 030 499 80 , 9803049980
citroËn	98 037 509 80 , 9803750980
citroËn	98 093 918 80 , 9809391880
citroËn	98 109 718 80 , 9810971880
citroËn	98 186 779 80 , 9818677980
citroËn	98 265 734 80 , 9826573480
citroËn	98 265 740 80 , 9826574080
citroËn	98 356 894 80 , 9835689480
citroËn	9803049980
citroËn	9803750980
citroËn	9809391880
citroËn	9810971880
citroËn	9818677980
citroËn	9826573480
citroËn	9826574080
citroËn	9835689480
dacia	96 65 617 780 , 9665617780
dacia	9665617780
ds	16 754 601 80 , 1675460180
ds	1675460180
ds	98 356 894 80 , 9835689480
ds	9835689480
fiat	71733552
fiat	71748885
fiat	71749232
fiat	77363468
fiat	9646065488
fiat	9646321780
fiat	9655296080
fiat	9655733780
fiat	9661544880
fiat	9665580680
fiat	9678048880
fiat	9803750980
fiat	9826573480
fiat	9835689480
ford	8V21-10300-AB , 8V2110300AB
ford	8V21-10300-BB , 8V2110300BB
ford	8V2110300AB
ford	8V2110300BB
ford	9G9N-10300-CA , 9G9N10300CA
ford	9G9N10300CA
jeep	9835689480
lancia	77363468
lexus	27060-YV030 , 27060YV030
lexus	27060YV030
lexus	SU001-A2548 , SU001A2548
lexus	SU001-A2672 , SU001A2672
lexus	SU001A2548
lexus	SU001A2672
mazda	Y405-18-300 , Y40518300
mazda	Y40518300
mazda	Y406-18-300 , Y40618300
mazda	Y40618300
mitsubishi	1340A131
mitsubishi	1800A350
mitsubishi	MN982557
opel	1606859180
opel	1624230480
opel	3556513
opel	3556520
opel	3558191
opel	3640165
opel	3641482
opel	3648696
opel	95526016
opel	95526495
opel	95528548
opel	9678048880
opel	9688085380
opel	9809391880
opel	9826573480
opel	9826574080
peugeot	16 068 569 80 , 1606856980
peugeot	16 068 591 80 , 1606859180
peugeot	16 080 645 80 , 1608064580
peugeot	16 090 160 80 , 1609016080
peugeot	16 099 572 80 , 1609957280
peugeot	16 196 079 80 , 1619607980
peugeot	16 242 304 80 , 1624230480
peugeot	16 373 027 80 , 1637302780
peugeot	16 373 028 80 , 1637302880
peugeot	16 482 321 80 , 1648232180
peugeot	16 754 601 80 , 1675460180
peugeot	1606856980
peugeot	1606859180
peugeot	1608064580
peugeot	1609016080
peugeot	1609957280
peugeot	1619607980
peugeot	1624230480
peugeot	1637302780
peugeot	1637302880
peugeot	1648232180
peugeot	1675460180
peugeot	212000972
peugeot	26 107 11B , 2610711B
peugeot	2610711B
peugeot	5702 H0 , 5702H0
peugeot	5702 H7 , 5702H7
peugeot	5702 J4 , 5702J4
peugeot	5702 J9 , 5702J9
peugeot	5702 K8 , 5702K8
peugeot	5702 K9 , 5702K9
peugeot	5702H0
peugeot	5702H7
peugeot	5702J4
peugeot	5702J9
peugeot	5702K8
peugeot	5702K9
peugeot	5705 AS , 5705AS
peugeot	5705 CS , 5705CS
peugeot	5705 CT , 5705CT
peugeot	5705 EE , 5705EE
peugeot	5705 EY , 5705EY
peugeot	5705 J4 , 5705J4
peugeot	5705 KC , 5705KC
peugeot	5705 KR , 5705KR
peugeot	5705 KV , 5705KV
peugeot	5705AS
peugeot	5705CS
peugeot	5705CT
peugeot	5705EE
peugeot	5705EY
peugeot	5705J4
peugeot	5705KC
peugeot	5705KR
peugeot	5705KV
peugeot	96 552 960 80 , 9655296080
peugeot	96 557 337 80 , 9655733780
peugeot	96 640 742 80 , 9664074280
peugeot	96 655 806 80 , 9665580680
peugeot	96 656 177 80 , 9665617780
peugeot	96 708 995 80 , 9670899580
peugeot	96 780 488 80 , 9678048880
peugeot	96 780 494 80 , 9678049480
peugeot	96 880 853 80 , 9688085380
peugeot	9655296080
peugeot	9655733780
peugeot	9664074280
peugeot	9665580680
peugeot	9665617780
peugeot	9670899580
peugeot	9678048880
peugeot	9678049480
peugeot	9688085380
peugeot	98 030 499 80 , 9803049980
peugeot	98 037 509 80 , 9803750980
peugeot	98 093 918 80 , 9809391880
peugeot	98 109 718 80 , 9810971880
peugeot	98 186 779 80 , 9818677980
peugeot	98 265 734 80 , 9826573480
peugeot	98 265 740 80 , 9826574080
peugeot	98 356 894 80 , 9835689480
peugeot	9803049980
peugeot	9803750980
peugeot	9809391880
peugeot	9810971880
peugeot	9818677980
peugeot	9826573480
peugeot	9826574080
peugeot	9835689480
renault	96 65 617 780 , 9665617780
renault	9665617780
suzuki	31400-69K00-000 , 3140069K00000
suzuki	3140069K00000
toyota	27060-YV030 , 27060YV030
toyota	27060YV030
toyota	SU001-A2548 , SU001A2548
toyota	SU001-A2672 , SU001A2672
toyota	SU001A2548
toyota	SU001A2672
vauxhall	1606859180
vauxhall	1624230480
vauxhall	3556513
vauxhall	3556520
vauxhall	3558191
vauxhall	3640165
vauxhall	3641482
vauxhall	3648696
vauxhall	95526016
vauxhall	95526495
vauxhall	95528548
vauxhall	9678048880
vauxhall	9688085380
vauxhall	9809391880
vauxhall	9826573480
vauxhall	9826574080
volvo	31285818

Usage numbers
BOSCH 1 987 945 405
BOSCH 1987945405
BREDA LORETT CR 4026
BREDA LORETT CR4026
CONTINENTAL CTAM AP9019
FEBI BILSTEIN 37047
IPD 15-3689
IPD 153689
QUINTON HAZELL 1010154
RUVILLE 59956
SCHAEFFLER GRUPPE 535 0194 10
SCHAEFFLER GRUPPE 535019410
Schaeffler INA F-236591.05
Schaeffler INA F-236591.07
Schaeffler INA F-236591.08
Schaeffler INA F23659105
Schaeffler INA F23659107
Schaeffler INA F23659108
SKF VKM03308
TRIPLE FIVE 3 5435 1
TRIPLE FIVE 354350
TRIPLE FIVE 354351
TRIPLE FIVE GA758.08
TRIPLE FIVE GA75808
VALEO 2542693A
VALEO 2542928A
VALEO 2542938A
VALEO 2543428A
VALEO 2543457A
VALEO 2603530
VALEO 2618013C
VALEO 31285808
VALEO 409000941
VALEO 437471
VALEO 440199
VALEO 588002
VALEO 9655296080
VALEO FG12T145
VALEO FG12T163
VALEO FG15T092
VALEO FG15T151
VALEO FG18S017
VALEO FG18S027
VALEO FG18S048
VALEO FG18S095
VALEO FG18T112
VALEO NRG12S010
VALEO SG10B048
VALEO TG10B013
VALEO TG10B024
VALEO TG12C038
VALEO TG12C106
VALEO TG12C228
VALEO TG12C261
VALEO TG15C020
VALEO TG15C028
VALEO TG15C053
VALEO TG15C103
VALEO TG15C118
VALEO TG15C127
VALEO TG15C134
VALEO TG15C135
VALEO TG15C152
VALEO TG15C189
VALEO TG15C194
VALEO TG15S205
VALEO TG9B026
VALEO TG9B044
VALEO TG9B049
VALEO TG9B066
VALEO TG9B068
ZEN 5629

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
ds
fiat
ford
jeep
lancia
mazda
mitsubishi
opel
peugeot
suzuki
toyota
vauxhall
volvo

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
