Supplementary article/info 2	requires special tools for mounting

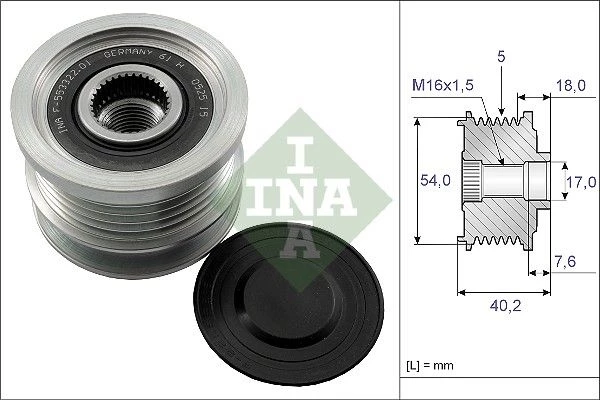

Width (mm)	40.2
Ø1/ Ø2 (mm)	54,0/17,0
For manufacturer number	f-553322.xx
Number of grooves	5
Svhc	no svhc present!
Distance to first groove (mm)	18

Product number: 535 0143 10

Ina Overrunning Alternator Clutch Pulley For Holden Opel Vauxhall Astra Astra H Classic C

In stock

Shipping method	Delivery time	Stock
Shipping	19-8-2025	3

Price excl. vat.

£ 39,87

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

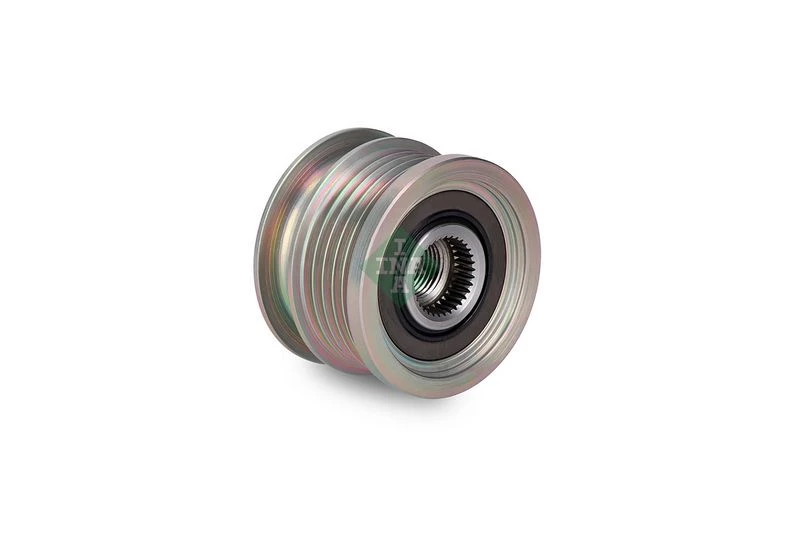

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
opel	12 04 484 , 1204484
opel	1204484
opel	62 04 218 , 6204218
opel	6204218
vauxhall	12 04 484 , 1204484
vauxhall	1204484
vauxhall	62 04 218 , 6204218
vauxhall	6204218
general motors	13222933
general motors	55560294
general motors	93188158

Usage numbers
AS-PL AFP0066
BOSCH 0 124 425 060
BOSCH 0 986 080 100
BOSCH 0124425060
BOSCH 0986080100
BOSCH F 00M 147 880
BOSCH F00M147880
BOSCH F00M991251
BREDA LORETT CR 3840
BREDA LORETT CR3840
DAYCO ALP2431
FEBI BILSTEIN 32312
GATES 7789-10058
GATES 778910058
GATES OAP7074
IPD 15-3438
IPD 153438
LUCAS ELECTRICAL LOPA0115
RUVILLE 55379
SCHAEFFLER GRUPPE 535 0143 10
SCHAEFFLER GRUPPE 535014310
Schaeffler INA F-553322
Schaeffler INA F-553322.01
Schaeffler INA F-553322.02
Schaeffler INA F-553322.03
Schaeffler INA F-553322.04
Schaeffler INA F553322
Schaeffler INA F55332201
Schaeffler INA F55332202
Schaeffler INA F55332203
Schaeffler INA F55332204
SKF VKM 03500
SKF VKM03500
SNR GA753.06
SNR GA75306
TRIPLE FIVE 3 5381 1
TRIPLE FIVE 333075
TRIPLE FIVE 353810
TRIPLE FIVE 353811
ZEN 5641
