| Supplementary article/info 2 | requires special tools for mounting |

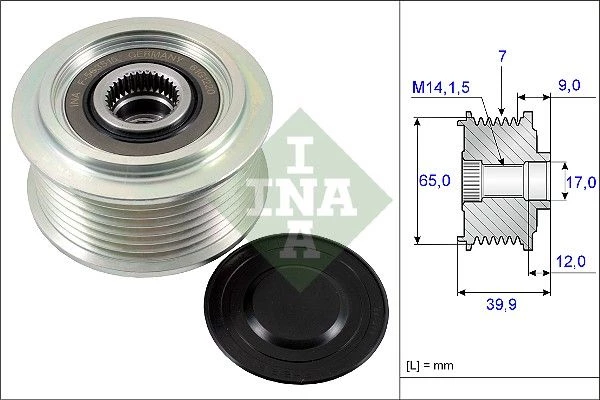

| Width (mm) | 39.9 |
| Ø1/ Ø2 (mm) | 65,0/17,0 |
| For manufacturer number | f-563515.xx |
| Number of grooves | 7 |
| Svhc | no svhc present! |
| Distance to first groove (mm) | 9 |

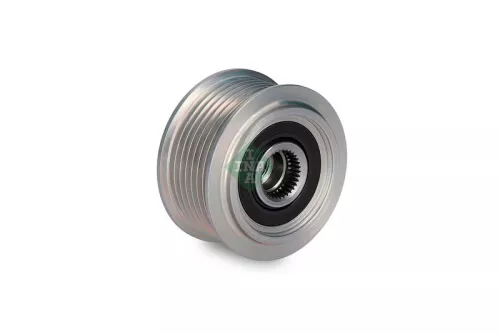

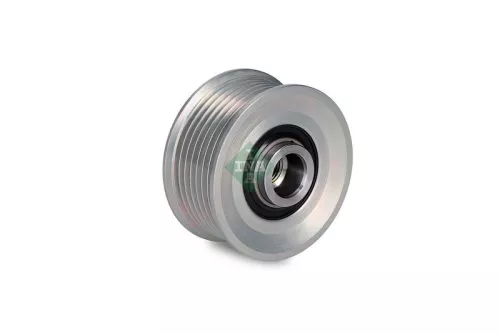

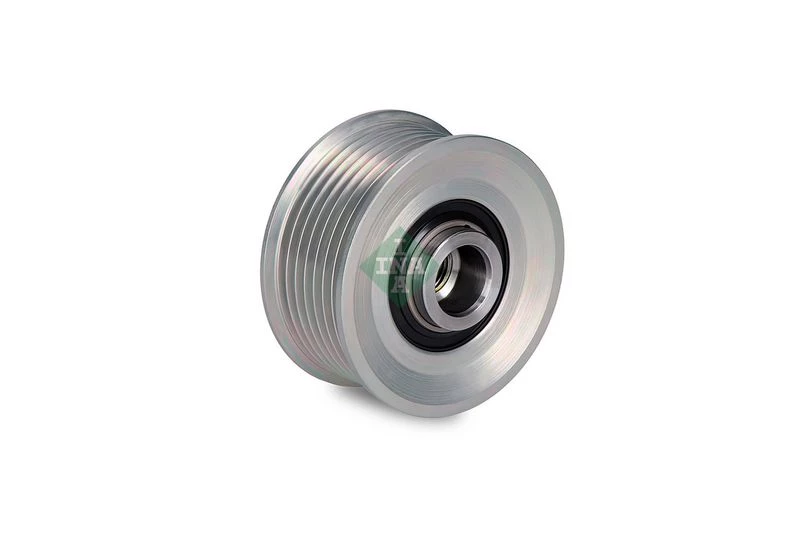

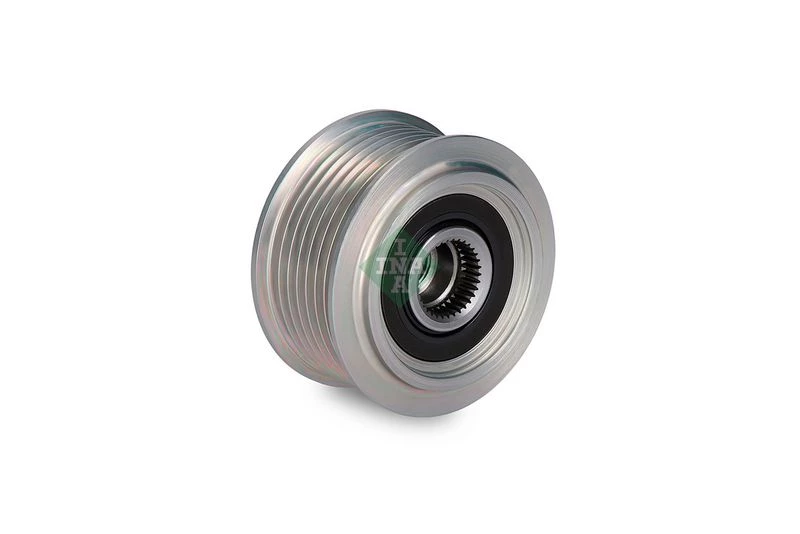

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.
Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.
| Manufacturer | Productnumber |
| honda | 31100-59N-G01 , 3110059NG01 |
| honda | 31100-R3L-G01 , 31100R3LG01 |
| honda | 31100-RFW-G01 , 31100RFWG01 |
| honda | 31100-RFW-G51 , 31100RFWG51 |
| honda | 31100-RL0-G01 , 31100RL0G01 |
| honda | 31100-RL0-G51 , 31100RL0G51 |
| honda | 31100-RSX-G01 , 31100RSXG01 |
| honda | 31100-RZ0-G01 , 31100RZ0G01 |
| honda | 3110059NG01 |
| honda | 31100R3LG01 |
| honda | 31100RFWG01 |
| honda | 31100RFWG51 |
| honda | 31100RL0G01 |
| honda | 31100RL0G51 |
| honda | 31100RSXG01 |
| honda | 31100RZ0G01 |
| honda | 31141-RL0-G01 , 31141RL0G01 |
| honda | 31141RL0G01 |
| Usage numbers |
| AS-PL AFP6039 |
| BREDA LORETT CR 5318 |
| BREDA LORETT CR5318 |
| CONTINENTAL CTAM AP9086 |
| DAYCO ALP2444 |
| DENSO 104210-1140 |
| DENSO 104210-1150 |
| DENSO 1042101140 |
| DENSO 1042101150 |
| DENSO 104211-8040 |
| DENSO 1042118040 |
| FEBI BILSTEIN 34277 |
| GATES 7789-10184 |
| GATES 778910184 |
| GATES OAP7184 |
| IPD 15-3789 |
| IPD 153789 |
| NSK-RHP 4DFB503238 |
| RUVILLE 57441 |
| SCHAEFFLER GRUPPE 535 0229 10 |
| SCHAEFFLER GRUPPE 535022910 |
| Schaeffler INA F-563515 |
| Schaeffler INA F563515 |
| SKF VKM 06300 |
| SKF VKM06300 |
| TRIPLE FIVE 3 5470 0 |
| TRIPLE FIVE 3 5470 1 |
| TRIPLE FIVE 354700 |
| TRIPLE FIVE 354701 |
| ZEN 5598 |
| Manufacturer | Model | Version | Engine code | Construction type | Construction start | Construction end | Pk | Power kw |
 honda |
