Supplementary article/info 2	requires special tools for mounting

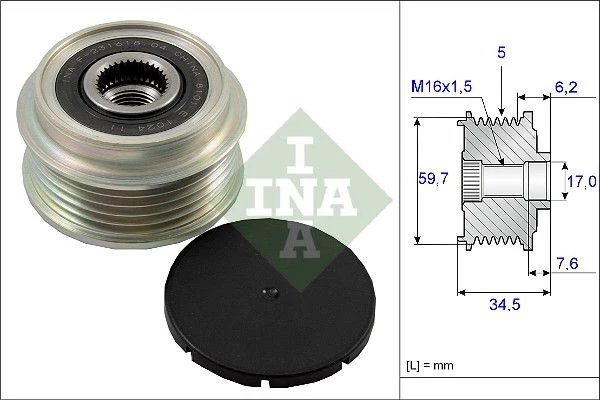

Width (mm)	34.5
Ø1/ Ø2 (mm)	59,7/17,0
For manufacturer number	f-231618.01/.02/.04 f-231618 f-231618.05
Number of grooves	5
Svhc	no svhc present!
Distance to first groove (mm)	6.2

Product number: 535 0034 10

Ina Overrunning Alternator Clutch Pulley For Hyundai Kia Carnival Carnival / Grand Carniv

In stock

Shipping method	Delivery time	Stock
Shipping	18-8-2025	3

Price excl. vat.

£ 22,98

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

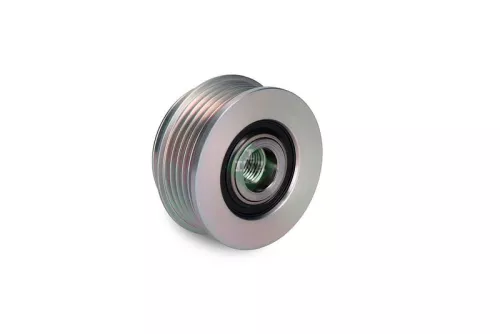

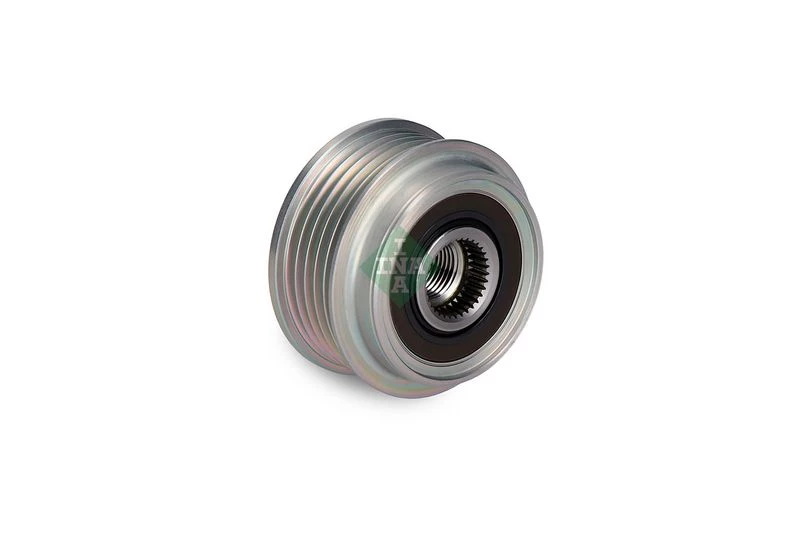

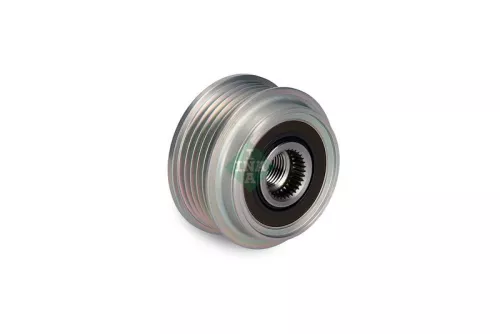

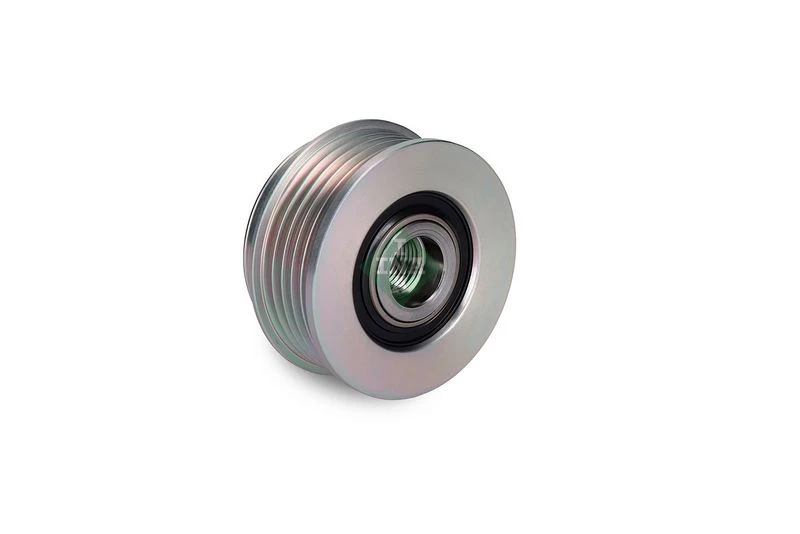

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
hyundai	0K554-18W11 , 0K55418W11
hyundai	0K55418W11
hyundai	0K588-18W11 , 0K58818W11
hyundai	0K58818W11
hyundai	37300-4X000 , 373004X000
hyundai	37300-4X001 , 373004X001
hyundai	37300-4X002 , 373004X002
hyundai	37300-4X003 , 373004X003
hyundai	37300-4X220 , 373004X220
hyundai	37300-4X500 , 373004X500
hyundai	37300-4X501 , 373004X501
hyundai	37300-4X502 , 373004X502
hyundai	37300-4X503 , 373004X503
hyundai	373004X000
hyundai	373004X001
hyundai	373004X002
hyundai	373004X003
hyundai	373004X220
hyundai	373004X500
hyundai	373004X501
hyundai	373004X502
hyundai	373004X503
hyundai	37321-4X210 , 373214X210
hyundai	37321-4X300 , 373214X300
hyundai	37321-4X301 , 373214X301
hyundai	373214X210
hyundai	373214X300
hyundai	373214X301
hyundai	37322-4X000 , 373224X000
hyundai	373224X000
kia	0K554-18W11 , 0K55418W11
kia	0K55418W11
kia	0K588-18W11 , 0K58818W11
kia	0K58818W11
kia	37300-4X-000 , 373004X000
kia	37300-4X-001 , 373004X001
kia	37300-4X-002 , 373004X002
kia	37300-4X-003 , 373004X003
kia	37300-4X000 , 373004X000
kia	37300-4X001 , 373004X001
kia	37300-4X002 , 373004X002
kia	37300-4X003 , 373004X003
kia	37300-4X220 , 373004X220
kia	37300-4X500 , 373004X500
kia	37300-4X501 , 373004X501
kia	37300-4X502 , 373004X502
kia	37300-4X503 , 373004X503
kia	373004X000
kia	373004X001
kia	373004X002
kia	373004X003
kia	373004X220
kia	373004X500
kia	373004X501
kia	373004X502
kia	373004X503
kia	37321-4X210 , 373214X210
kia	37321-4X300 , 373214X300
kia	37321-4X301 , 373214X301
kia	373214X210
kia	373214X300
kia	373214X301
kia	37322-4X000 , 373224X000
kia	373224X000

Usage numbers
AS-PL AFP1001
BREDA LORETT CR 3617
BREDA LORETT CR3617
CONTINENTAL CTAM AP9061
DAYCO ALP2428
DENSO 02131-9070
DENSO 021319070
FEBI BILSTEIN 10192
GATES 7789-10022
GATES 778910022
GATES OAP7093
LUCAS ELECTRICAL LOPA0032
RUVILLE 57063
SCHAEFFLER GRUPPE 535 0034 10
SCHAEFFLER GRUPPE 535003410
Schaeffler INA F-231618
Schaeffler INA F-231618.01
Schaeffler INA F-231618.02
Schaeffler INA F-231618.04
Schaeffler INA F-231618.05
Schaeffler INA F-231618.07
Schaeffler INA F-231618.1
Schaeffler INA F231618
Schaeffler INA F23161801
Schaeffler INA F23161802
Schaeffler INA F23161804
Schaeffler INA F23161805
Schaeffler INA F23161807
Schaeffler INA F2316181
SKF VKM 06400
SKF VKM06400
TRIPLE FIVE 230527
TRIPLE FIVE 3 3556 1
TRIPLE FIVE 333335
TRIPLE FIVE 335560
TRIPLE FIVE 335561
TRIPLE FIVE 72011-0740
TRIPLE FIVE 720110740
TRIPLE FIVE GA784.01
TRIPLE FIVE GA78401
TRIPLE FIVE Y2038
VALEO 588073
VALEO AF111225
VALEO AF111390
VALEO TA000A56901
VALEO TA000A61201
ZEN 5466
