    Schaeffler INA
    Supplementary article/info 2 requires special tools for mounting
    For manufacturer number
    • 357v1-1
    • 361v1-1
    • f-585322.xx
    • 328v2-2
    Svhc no svhc present!
    Product number: 535 0232 10

    Ina Overrunning Alternator Clutch Pulley For Lexus Toyota Auris Avensis Corolla Dyna Fort

    Price excl. vat.
    £ 32,66

    Description


    INA Belt Drive Technology

    Overrunning Alternator Pulley (OAP)

    The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

    Lower NVH Stabilised FEAD OE-grade reliability

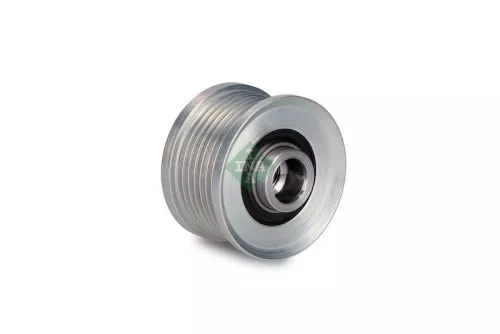

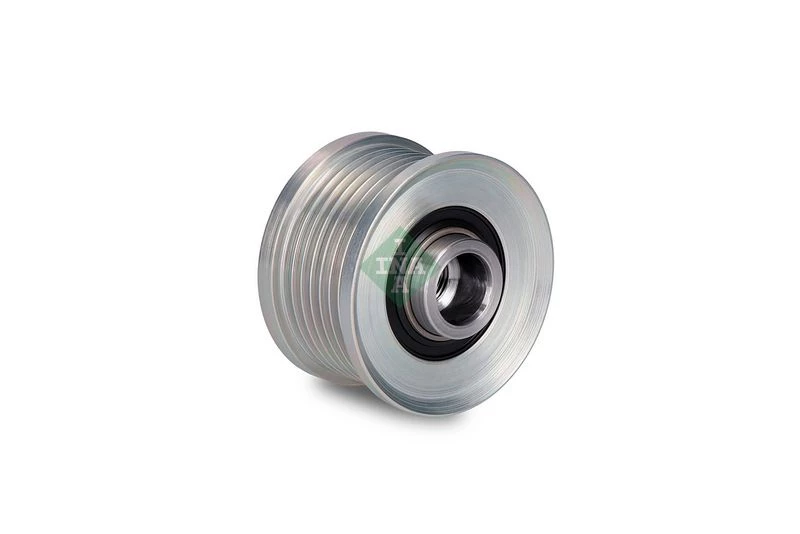

    INA Overrunning Alternator Pulley main view

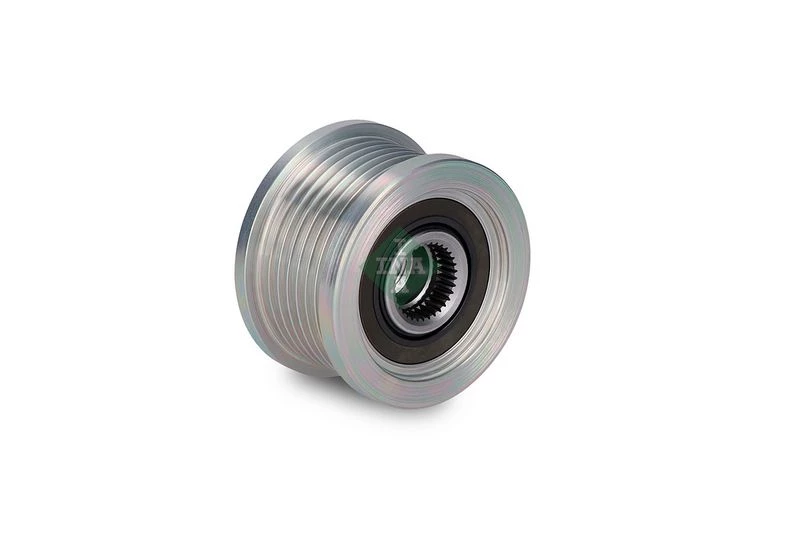

    INA OAP packaging view INA OAP close-up view INA OAP installed view

    What It Does

    • One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
    • Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
    • Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

    When to Replace

    • Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
    • Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
    • Alternator charging faults due to belt slip or pulley clutch seizure.
    • Excessive play/roughness when the pulley is checked off-vehicle.
    Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

    How to Fit (Universal Guide)

    1. Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
    2. Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
    3. Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
    4. Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
    5. Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
    6. Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

    Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

    Quick Function Check (Off-Vehicle)

    • Pulley should rotate freely in the overrun direction and lock in the drive direction.
    • Any grinding, binding, or free-wheeling both ways = replace.
    Manufacturer Productnumber
    lexus 27060-0G011 , 270600G011
    lexus 27060-0G021 , 270600G021
    lexus 27060-0L110 , 270600L110
    lexus 27060-0L120 , 270600L120
    lexus 27060-0L130 , 270600L130
    lexus 27060-0L140 , 270600L140
    lexus 27060-0L160 , 270600L160
    lexus 27060-0L190 , 270600L190
    lexus 27060-0L200 , 270600L200
    lexus 27060-0L210 , 270600L210
    lexus 27060-0L220 , 270600L220
    lexus 27060-0L260 , 270600L260
    lexus 27060-0L270 , 270600L270
    lexus 27060-0L280 , 270600L280
    lexus 27060-0L290 , 270600L290
    lexus 27060-0R011 , 270600R011
    lexus 27060-0R040 , 270600R040
    lexus 27060-0R050 , 270600R050
    lexus 27060-0R060 , 270600R060
    lexus 27060-0R070 , 270600R070
    lexus 27060-0R080 , 270600R080
    lexus 27060-0R090 , 270600R090
    lexus 27060-11180 , 2706011180
    lexus 27060-11350 , 2706011350
    lexus 27060-26030 , 2706026030
    lexus 27060-26041 , 2706026041
    lexus 27060-26051 , 2706026051
    lexus 27060-26060 , 2706026060
    lexus 27060-26070 , 2706026070
    lexus 27060-26081 , 2706026081
    lexus 27060-30010 , 2706030010
    lexus 27060-30030 , 2706030030
    lexus 27060-30040 , 2706030040
    lexus 27060-30050 , 2706030050
    lexus 27060-30060 , 2706030060
    lexus 27060-30070 , 2706030070
    lexus 27060-30090 , 2706030090
    lexus 27060-30100 , 2706030100
    lexus 27060-30110 , 2706030110
    lexus 27060-30120 , 2706030120
    lexus 27060-30121 , 2706030121
    lexus 27060-30123 , 2706030123
    lexus 27060-30130 , 2706030130
    lexus 27060-30140 , 2706030140
    lexus 27060-30150 , 2706030150
    lexus 27060-30151 , 2706030151
    lexus 27060-30152 , 2706030152
    lexus 27060-30154 , 2706030154
    lexus 27060-30160 , 2706030160
    lexus 27060-30190 , 2706030190
    lexus 27060-30210 , 2706030210
    lexus 27060-30220 , 2706030220
    lexus 27060-30230 , 2706030230
    lexus 270600G011
    lexus 270600G021
    lexus 270600L110
    lexus 270600L120
    lexus 270600L130
    lexus 270600L140
    lexus 270600L160
    lexus 270600L190
    lexus 270600L200
    lexus 270600L210
    lexus 270600L220
    lexus 270600L260
    lexus 270600L270
    lexus 270600L280
    lexus 270600L290
    lexus 270600R011
    lexus 270600R040
    lexus 270600R050
    lexus 270600R060
    lexus 270600R070
    lexus 270600R080
    lexus 270600R090
    lexus 2706011180
    lexus 2706011350
    lexus 2706026030
    lexus 2706026041
    lexus 2706026051
    lexus 2706026060
    lexus 2706026070
    lexus 2706026081
    lexus 2706030010
    lexus 2706030030
    lexus 2706030040
    lexus 2706030050
    lexus 2706030060
    lexus 2706030070
    lexus 2706030090
    lexus 2706030100
    lexus 2706030110
    lexus 2706030120
    lexus 2706030121
    lexus 2706030123
    lexus 2706030130
    lexus 2706030140
    lexus 2706030150
    lexus 2706030151
    lexus 2706030152
    lexus 2706030154
    lexus 2706030160
    lexus 2706030190
    lexus 2706030210
    lexus 2706030220
    lexus 2706030230
    lexus 27415-0L050 , 274150L050
    lexus 27415-26010 , 2741526010
    lexus 27415-30010 , 2741530010
    lexus 27415-30011 , 2741530011
    lexus 274150L050
    lexus 2741526010
    lexus 2741530010
    lexus 2741530011
    toyota 27060-0G011 , 270600G011
    toyota 27060-0G021 , 270600G021
    toyota 27060-0L110 , 270600L110
    toyota 27060-0L120 , 270600L120
    toyota 27060-0L130 , 270600L130
    toyota 27060-0L140 , 270600L140
    toyota 27060-0L160 , 270600L160
    toyota 27060-0L190 , 270600L190
    toyota 27060-0L200 , 270600L200
    toyota 27060-0L210 , 270600L210
    toyota 27060-0L220 , 270600L220
    toyota 27060-0L260 , 270600L260
    toyota 27060-0L270 , 270600L270
    toyota 27060-0L280 , 270600L280
    toyota 27060-0L290 , 270600L290
    toyota 27060-0R011 , 270600R011
    toyota 27060-0R040 , 270600R040
    toyota 27060-0R050 , 270600R050
    toyota 27060-0R060 , 270600R060
    toyota 27060-0R070 , 270600R070
    toyota 27060-0R080 , 270600R080
    toyota 27060-0R090 , 270600R090
    toyota 27060-11180 , 2706011180
    toyota 27060-11350 , 2706011350
    toyota 27060-26030 , 2706026030
    toyota 27060-26041 , 2706026041
    toyota 27060-26051 , 2706026051
    toyota 27060-26060 , 2706026060
    toyota 27060-26070 , 2706026070
    toyota 27060-26081 , 2706026081
    toyota 27060-30010 , 2706030010
    toyota 27060-30030 , 2706030030
    toyota 27060-30040 , 2706030040
    toyota 27060-30050 , 2706030050
    toyota 27060-30060 , 2706030060
    toyota 27060-30070 , 2706030070
    toyota 27060-30090 , 2706030090
    toyota 27060-30100 , 2706030100
    toyota 27060-30110 , 2706030110
    toyota 27060-30120 , 2706030120
    toyota 27060-30121 , 2706030121
    toyota 27060-30123 , 2706030123
    toyota 27060-30130 , 2706030130
    toyota 27060-30140 , 2706030140
    toyota 27060-30150 , 2706030150
    toyota 27060-30151 , 2706030151
    toyota 27060-30152 , 2706030152
    toyota 27060-30154 , 2706030154
    toyota 27060-30160 , 2706030160
    toyota 27060-30190 , 2706030190
    toyota 27060-30210 , 2706030210
    toyota 27060-30220 , 2706030220
    toyota 27060-30230 , 2706030230
    toyota 270600G011
    toyota 270600G021
    toyota 270600L110
    toyota 270600L120
    toyota 270600L130
    toyota 270600L140
    toyota 270600L160
    toyota 270600L190
    toyota 270600L200
    toyota 270600L210
    toyota 270600L220
    toyota 270600L260
    toyota 270600L270
    toyota 270600L280
    toyota 270600L290
    toyota 270600R011
    toyota 270600R040
    toyota 270600R050
    toyota 270600R060
    toyota 270600R070
    toyota 270600R080
    toyota 270600R090
    toyota 2706011180
    toyota 2706011350
    toyota 2706026030
    toyota 2706026041
    toyota 2706026051
    toyota 2706026060
    toyota 2706026070
    toyota 2706026081
    toyota 2706030010
    toyota 2706030030
    toyota 2706030040
    toyota 2706030050
    toyota 2706030060
    toyota 2706030070
    toyota 2706030090
    toyota 2706030100
    toyota 2706030110
    toyota 2706030120
    toyota 2706030121
    toyota 2706030123
    toyota 2706030130
    toyota 2706030140
    toyota 2706030150
    toyota 2706030151
    toyota 2706030152
    toyota 2706030154
    toyota 2706030160
    toyota 2706030190
    toyota 2706030210
    toyota 2706030220
    toyota 2706030230
    toyota 27415-0L050 , 274150L050
    toyota 27415-26010 , 2741526010
    toyota 27415-30010 , 2741530010
    toyota 27415-30011 , 2741530011
    toyota 274150L050
    toyota 2741526010
    toyota 2741530010
    toyota 2741530011
    Usage numbers
    AS-PL AFP6026
    BOSCH 1 987 945 416
    BOSCH 1987945416
    BREDA LORETT CR 5559
    BREDA LORETT CR5559
    CONTINENTAL CTAM AP9076
    DAYCO ALP2471
    DENSO 102211-2310
    DENSO 102211-2810
    DENSO 1022112310
    DENSO 1022112810
    DENSO 104210-1870
    DENSO 104210-1880
    DENSO 104210-2370
    DENSO 104210-3410
    DENSO 104210-3411
    DENSO 104210-4440
    DENSO 104210-4451
    DENSO 104210-4520
    DENSO 104210-4521
    DENSO 104210-4591
    DENSO 104210-4771
    DENSO 104210-5140
    DENSO 104210-5610
    DENSO 104210-8020
    DENSO 104210-8240
    DENSO 104210-8241
    DENSO 104210-8370
    DENSO 1042101870
    DENSO 1042101880
    DENSO 1042102370
    DENSO 1042103410
    DENSO 1042103411
    DENSO 1042104440
    DENSO 1042104451
    DENSO 1042104520
    DENSO 1042104521
    DENSO 1042104591
    DENSO 1042104771
    DENSO 1042105140
    DENSO 1042105610
    DENSO 1042108020
    DENSO 1042108240
    DENSO 1042108241
    DENSO 1042108370
    DENSO 104211-3140
    DENSO 104211-8111
    DENSO 1042113140
    DENSO 1042118111
    GATES 7789-10183
    GATES 778910183
    GATES OAP7183
    NTN 328V2-2
    NTN 328V22
    NTN 357V1-1
    NTN 357V11
    NTN 361V1-1
    NTN 361V11
    RUVILLE 56991
    SCHAEFFLER GRUPPE 535 0232 10
    SCHAEFFLER GRUPPE 535023210
    Schaeffler INA F-585322
    Schaeffler INA F-585322.01
    Schaeffler INA F-585322.01-CO3
    Schaeffler INA F585322
    Schaeffler INA F58532201
    Schaeffler INA F58532201CO3
    SNR GA769.03
    SNR GA76903
    TRIPLE FIVE 3 5473 1
    TRIPLE FIVE 330527
    TRIPLE FIVE 354731
    ZEN 5609
