Supplementary article/info 2	requires special tools for mounting

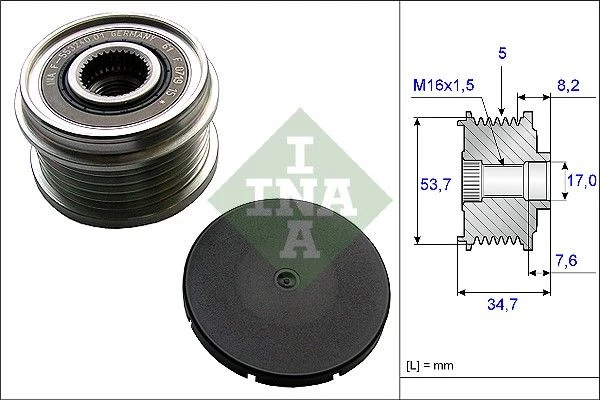

Width (mm)	34.7
Ø1/ Ø2 (mm)	53,7/17,0
For manufacturer number	f-553240.xx
Number of grooves	5
Svhc	no svhc present!
Distance to first groove (mm)	8.2

Product number: 535 0211 10

Ina Overrunning Alternator Clutch Pulley For Opel Vauxhall Corsa Corsavan Meriva

In stock

Shipping method	Delivery time	Stock
Shipping	19-8-2025	2

Price excl. vat.

£ 30,19

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

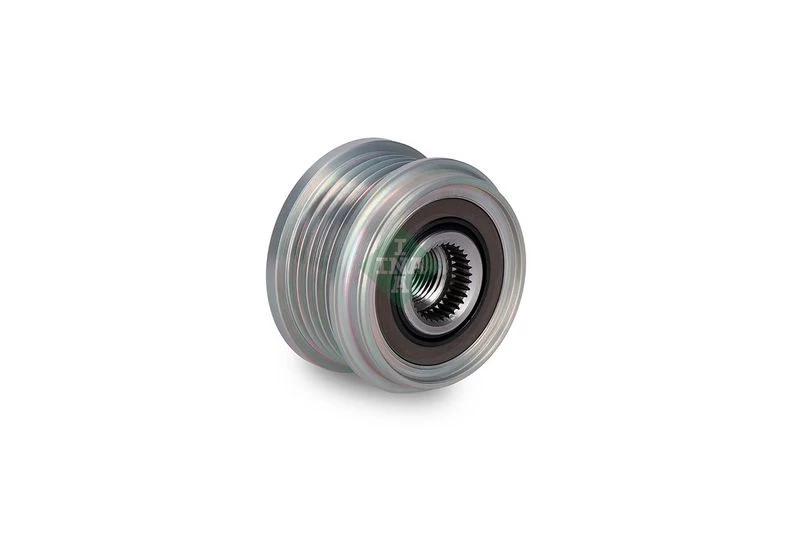

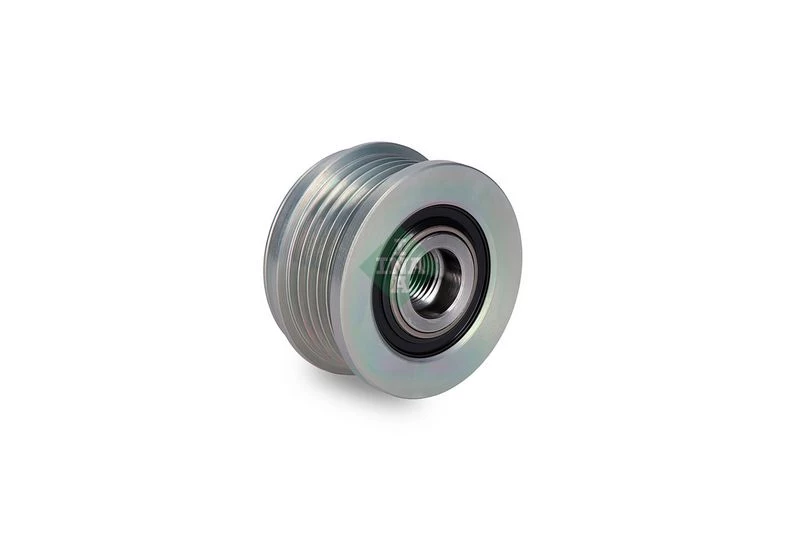

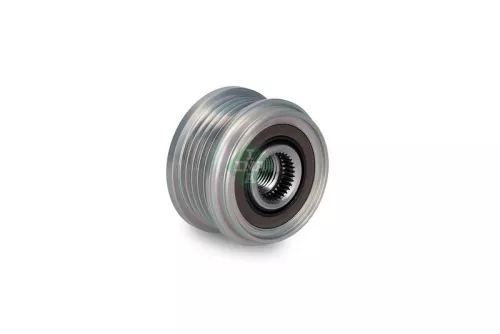

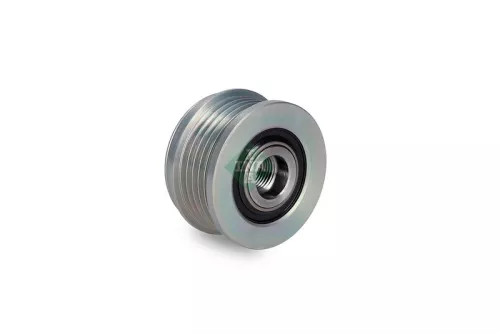

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
opel	12 02 194 , 1202194
opel	12 02 195 , 1202195
opel	12 04 184 , 1204184
opel	1202194
opel	1202195
opel	1204184
opel	13266809
opel	13266810
vauxhall	12 02 194 , 1202194
vauxhall	12 02 195 , 1202195
vauxhall	12 04 184 , 1204184
vauxhall	1202194
vauxhall	1202195
vauxhall	1204184
vauxhall	13266809
vauxhall	13266810
general motors	13266809
general motors	13266810
general motors	13266813
general motors	93185744

Usage numbers
BOSCH 0 124 425 085
BOSCH 0 124 425 087
BOSCH 0124425085
BOSCH 0124425087
BOSCH F 00M 992 718
BOSCH F00M992718
BREDA LORETT CR 4082
BREDA LORETT CR4082
FEBI BILSTEIN 38263
GATES 7789-10220
GATES 778910220
GATES OAP7220
RUVILLE 59973
SCHAEFFLER GRUPPE 535 0211 10
SCHAEFFLER GRUPPE 535021110
Schaeffler INA F-553240
Schaeffler INA F-553240.01
Schaeffler INA F-553240.02
Schaeffler INA F-553240.03
Schaeffler INA F553240
Schaeffler INA F55324001
Schaeffler INA F55324002
Schaeffler INA F55324003
TRIPLE FIVE 3 5438 1
TRIPLE FIVE 333073
TRIPLE FIVE 354380
TRIPLE FIVE 354381
ZEN 5590

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
