Supplementary article/info 2	requires special tools for mounting

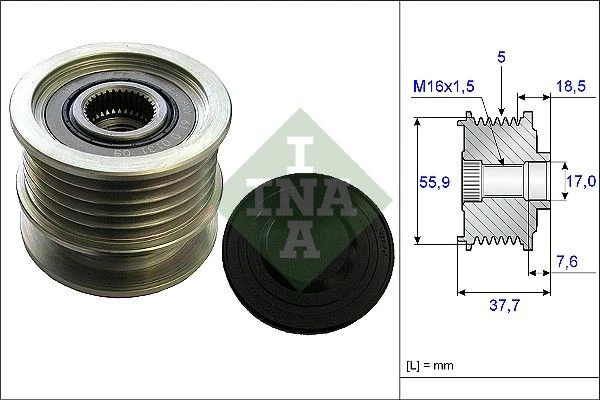

Width (mm)	37.7
Ø1/ Ø2 (mm)	55,9/17,0
For manufacturer number	f-552861.xx
Number of grooves	5
Svhc	no svhc present!
Distance to first groove (mm)	18.5

Product number: 535 0169 10

Ina Overrunning Alternator Clutch Pulley For Opel Vauxhall Signum Vectra

In stock

Shipping method	Delivery time	Stock
Shipping	18-8-2025	1

Price excl. vat.

£ 32,61

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

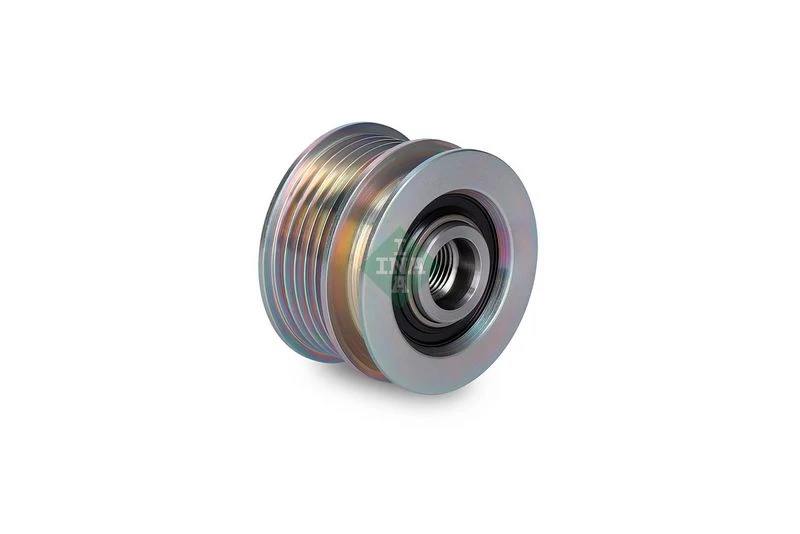

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
opel	12 04 419 , 1204419
opel	1204419
opel	555559583
opel	93176035
opel	93186763
opel	93190894
vauxhall	12 04 419 , 1204419
vauxhall	1204419
vauxhall	555559583
vauxhall	93176035
vauxhall	93186763
vauxhall	93190894
general motors	55558734

Usage numbers
AUTEX 654592
BOSCH 0 124 425 048
BOSCH 0 124 425 061
BOSCH 0124425048
BOSCH 0124425061
BOSCH F00M147875
BOSCH F00M991246
BREDA LORETT RLA4034
DAYCO ALP 2453
DAYCO ALP2453
GATES 7789-10034
GATES 778910034
GATES OAP7062
IPD 15-3587
IPD 153587
OPTIMAL F5-1155
OPTIMAL F51155
RUVILLE 55378
SCHAEFFLER GRUPPE 535 0169 10
SCHAEFFLER GRUPPE 535016910
Schaeffler INA F-552861
Schaeffler INA F-552861.01
Schaeffler INA F552861
Schaeffler INA F55286101
SKF VKM 03510
SKF VKM03510
SNR GA753.05
SNR GA75305
TRIPLE FIVE 03.81458
TRIPLE FIVE 0381458
TRIPLE FIVE 3 5380 1
TRIPLE FIVE 333383
TRIPLE FIVE 353800
TRIPLE FIVE 353801

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
