Supplementary article/info 2	requires special tools for mounting

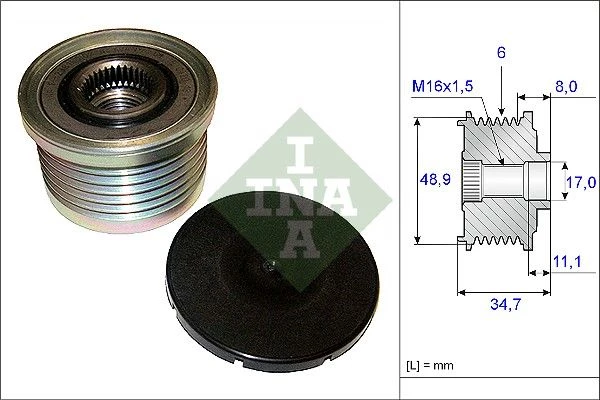

Width (mm)	34.7
Ø1/ Ø2 (mm)	48,9/17,0
For manufacturer number	f-238120.xx
Number of grooves	6
Svhc	no svhc present!
Distance to first groove (mm)	8

Product number: 535 0088 10

Ina Overrunning Alternator Clutch Pulley For Renault Laguna

Out of stock

Price incl. vat.

£ 30,24

Notify me when back in stock

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

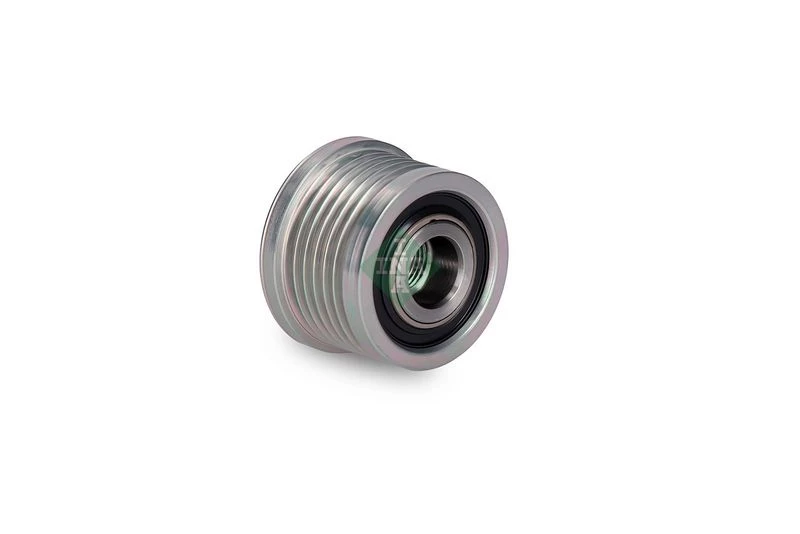

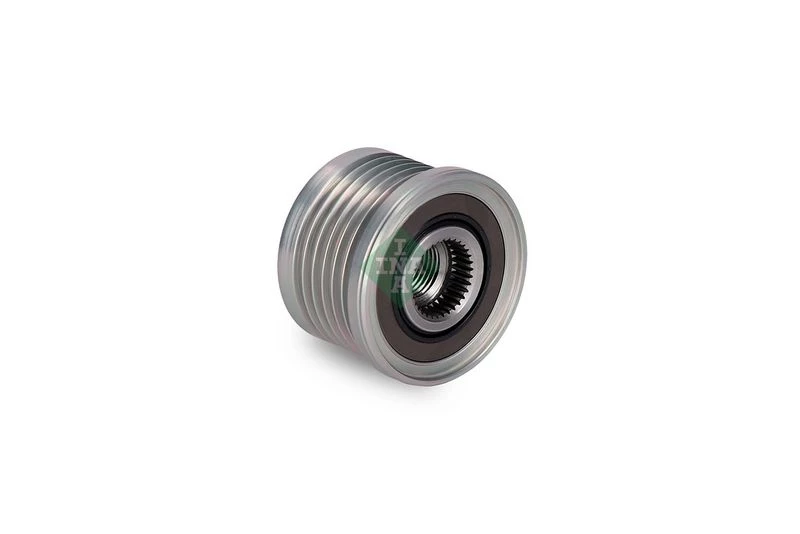

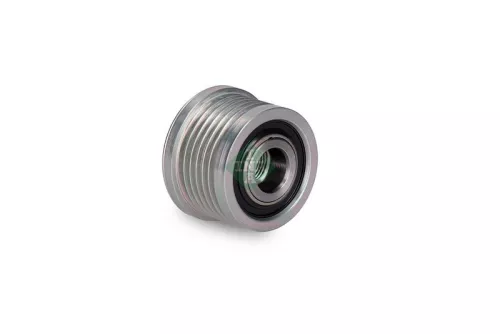

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
dacia	82 00 229 907 , 8200229907
dacia	8200229907
renault	82 00 229 907 , 8200229907
renault	8200229907

Usage numbers
AS-PL AFP0055
BOSCH 0 124 525 047
BOSCH 0 986 046 280
BOSCH 0124525047
BOSCH 0986046280
BOSCH F00M 147 957
BOSCH F00M 991 178
BOSCH F00M 991 314
BOSCH F00M147957
BOSCH F00M991178
BOSCH F00M991314
BREDA LORETT CR 3844
BREDA LORETT CR3844
GATES 7789-10083
GATES 778910083
GATES OAP7109
LUCAS ELECTRICAL LOPA0074
RUVILLE 55625
SCHAEFFLER GRUPPE 535 0088 10
SCHAEFFLER GRUPPE 535008810
Schaeffler INA F-238120
Schaeffler INA F-238120.01
Schaeffler INA F-238120.02
Schaeffler INA F238120
Schaeffler INA F23812001
Schaeffler INA F23812002
SKF VKM 03611
SKF VKM03611
TRIPLE FIVE 237355
TRIPLE FIVE 3 5309 1
TRIPLE FIVE 353090
TRIPLE FIVE 353091
VALEO 588067
ZEN 5523
