Supplementary article/info 2	requires special tools for mounting

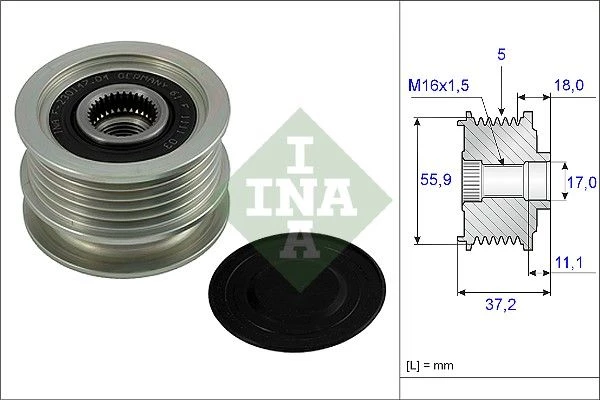

For manufacturer number	f-230147/.01/.02/.03 f-230147.04/.05
Number of grooves	5
Svhc	no svhc present!
Distance to first groove (mm)	18

Product number: 535 0018 10

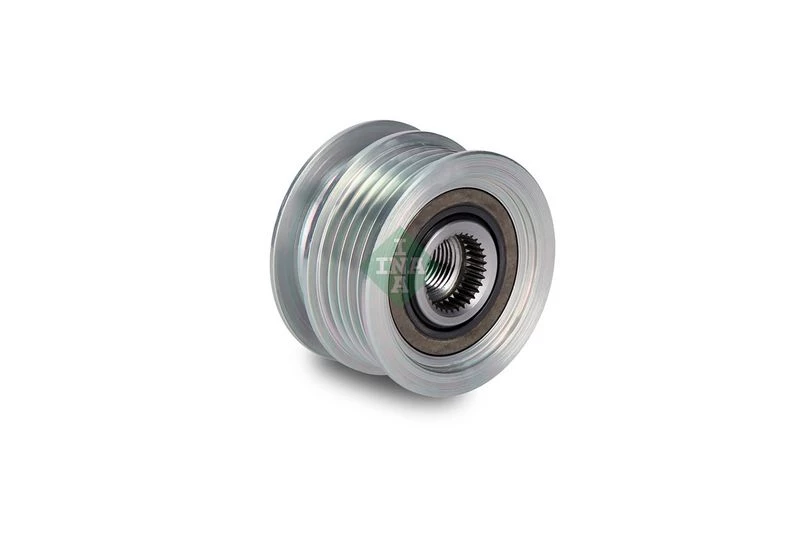

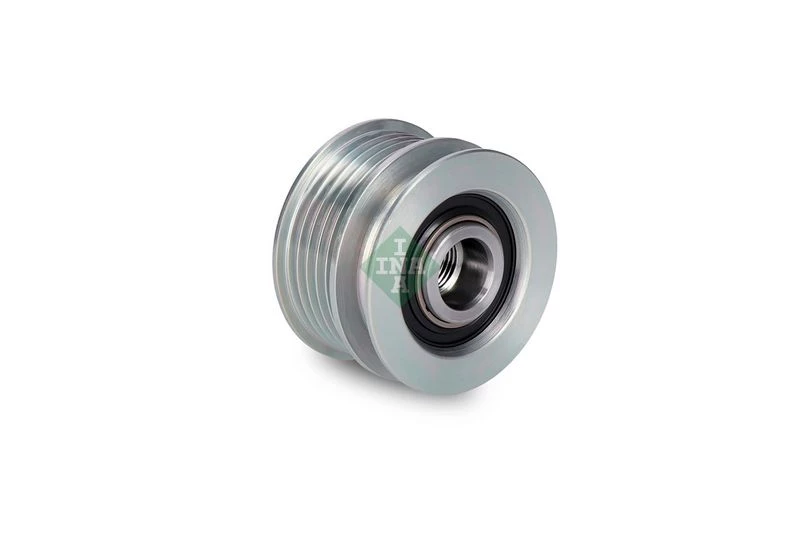

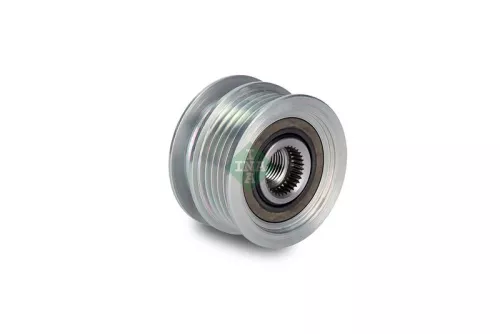

Ina Overrunning Alternator Clutch Pulley For Seat Vw Arosa Lupo Polo

Out of stock

Price incl. vat.

£ 21,72

Notify me when back in stock

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
audi	038 903 023 P , 038903023P
audi	038 903 023 T , 038903023T
audi	038 903 025 , 038903025
audi	038 903 025 A , 038903025A
audi	038 903 119 Q , 038903119Q
audi	038903023P
audi	038903023T
audi	038903025
audi	038903025A
audi	038903119Q
seat	038 903 023 P , 038903023P
seat	038 903 023 T , 038903023T
seat	038 903 025 , 038903025
seat	038 903 025 A , 038903025A
seat	038 903 119 Q , 038903119Q
seat	038903023P
seat	038903023T
seat	038903025
seat	038903025A
seat	038903119Q
skoda	038 903 023 P , 038903023P
skoda	038 903 023 T , 038903023T
skoda	038 903 025 , 038903025
skoda	038 903 025 A , 038903025A
skoda	038 903 119 Q , 038903119Q
skoda	038903023P
skoda	038903023T
skoda	038903025
skoda	038903025A
skoda	038903119Q
vw	038 903 023 P , 038903023P
vw	038 903 023 T , 038903023T
vw	038 903 025 , 038903025
vw	038 903 025 A , 038903025A
vw	038 903 119 Q , 038903119Q
vw	038903023P
vw	038903023T
vw	038903025
vw	038903025A
vw	038903119Q

Usage numbers
AS-PL AFP0014
BOSCH 0 124 315 006
BOSCH 0 124 315 012
BOSCH 0 124 325 014
BOSCH 0 124 325 021
BOSCH 0124315006
BOSCH 0124315012
BOSCH 0124325014
BOSCH 0124325021
BOSCH F 00M 147 721
BOSCH F 00M 991 039
BOSCH F 00M 991 375
BOSCH F00M147721
BOSCH F00M991039
BOSCH F00M991375
BREDA LORETT CR 3262
BREDA LORETT CR3262
CONTINENTAL CTAM AP9057
DAYCO ALP2340
FEBI BILSTEIN 15264
GATES 7789-10015
GATES 778910015
GATES OAP7102
HK G228
HUTCHINSON DB0254
IPD 12-0228
IPD 120228
LUCAS ELECTRICAL LOPA0018
QUINTON HAZELL 1010097
RUVILLE 55718
SCHAEFFLER GRUPPE 535 0018 10
SCHAEFFLER GRUPPE 535001810
Schaeffler INA F-230147
Schaeffler INA F-230147.01
Schaeffler INA F-230147.02
Schaeffler INA F-230147.03
Schaeffler INA F-230147.04
Schaeffler INA F-230147.05
Schaeffler INA F-230147.1
Schaeffler INA F-230147.2
Schaeffler INA F-230147.3
Schaeffler INA F230147
Schaeffler INA F23014701
Schaeffler INA F23014702
Schaeffler INA F23014703
Schaeffler INA F23014704
Schaeffler INA F23014705
Schaeffler INA F2301471
Schaeffler INA F2301472
Schaeffler INA F2301473
SKF VKM 03103
SKF VKM03103
SNR GA754.10
SNR GA75410
SWAG 301400014
SWAG 30140004
TRIPLE FIVE 230309
TRIPLE FIVE 3 3548 1
TRIPLE FIVE 322 0052
TRIPLE FIVE 3220052
TRIPLE FIVE 333026
TRIPLE FIVE 335480
TRIPLE FIVE 335481
TRIPLE FIVE MBI-28670
TRIPLE FIVE MBI28670
TRIPLE FIVE PBT8641
TRIPLE FIVE TA20502
TRIPLE FIVE Y2047
VALEO 588035
ZEN 5385
