Width 1 (mm)	19
Number of teeth 1	142
Svhc	no svhc present!

Product number: 530 0156 10

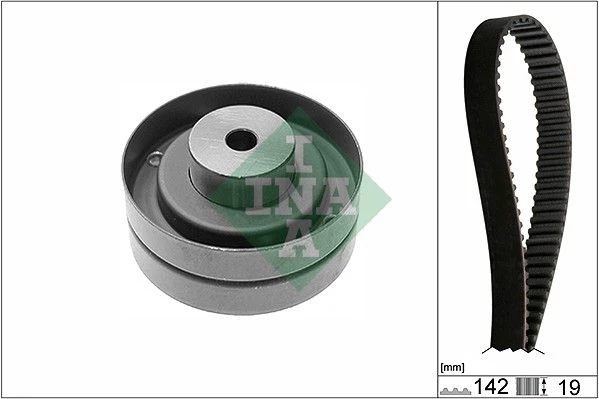

Ina Timing Belt Kit For Audi 100 200 80 90 Cabriolet Coupe Quattro

Out of stock

Price incl. vat.

£ 35,08

Notify me when back in stock

Description

INA Engine Drive Solutions

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	074 109 119 , 074109119
audi	074 109 243 , 074109243
audi	074 109 243 K , 074109243K
audi	074109119
audi	074109243
audi	074109243K
seat	074 109 119 , 074109119
seat	074 109 243 , 074109243
seat	074 109 243 K , 074109243K
seat	074109119
seat	074109243
seat	074109243K
skoda	074 109 119 , 074109119
skoda	074 109 243 , 074109243
skoda	074 109 243 K , 074109243K
skoda	074109119
skoda	074109243
skoda	074109243K
vw	074 109 119 , 074109119
vw	074 109 243 , 074109243
vw	074 109 243 K , 074109243K
vw	074109119
vw	074109243
vw	074109243K

Usage numbers
BOSCH 1 987 948 645
BOSCH 1987948645
CONTINENTAL CTAM CT539K1
DAYCO KTB 203
DAYCO KTB203
GATES K 015245
GATES K015245
HK RS1055
IPD 20-1055
IPD 201055
QUINTON HAZELL QBK286
RUVILLE 5540370
SCHAEFFLER GRUPPE 530 0156 10
SCHAEFFLER GRUPPE 530015610
SKF VKMA 01032
SKF VKMA01032
SNR KD457.40
SNR KD45740

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
