    Schaeffler INA
    Width 1 (mm) 15
    Number of teeth 1 138
    Svhc no svhc present!
    Product number: 530 0203 10

    Ina Timing Belt Kit For Citroën Fiat Lancia Peugeot Yugo Dedra Delta Elba Expert

    Price excl. vat.
    £ 16,93

    Description


    INA Engine Drive Solutions

    Timing Belt Kit

    The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

    OE-grade quality Complete solution Long service life

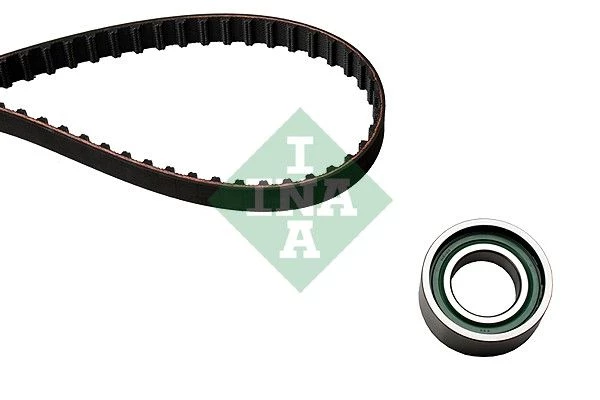

    INA Timing Belt Kit main view
    INA Timing Belt Kit beauty shot INA timing belt close-up INA timing belt kit with water pump

    Kit Features

    • Complete package: includes timing belt, tensioner, idlers, and all required hardware.
    • OE specification: precise tooth profile and belt length for correct timing.
    • High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
    • Optional water pump kits: available for full cooling system refresh during belt replacement.

    When to Replace

    • Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
    • Signs of belt wear such as cracks, fraying, or missing teeth.
    • Noise from tensioner or idlers.
    • Coolant leak from the water pump if integrated.
    Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

    How to Fit (Universal Guide)

    1. Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
    2. Remove covers & drain coolant (if water pump is included).
    3. Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
    4. Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
    5. Fit new belt: Align all timing marks exactly before tensioning.
    6. Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

    Always follow the exact procedure and torque values in your vehicle’s workshop manual.

    Manufacturer Productnumber
    citroËn 0816.79 , 081679
    citroËn 081679
    citroËn 0818.21 , 081821
    citroËn 081821
    citroËn 0829.17 , 082917
    citroËn 082917
    citroËn 26 207 509 , 26207509
    citroËn 26207509
    citroËn 95 619 217 , 95619217
    citroËn 95619217
    fiat 46408751
    fiat 46417967
    fiat 561 9217 , 5619217
    fiat 5619217
    fiat 597 2277 , 5972277
    fiat 5972277
    fiat 71719005
    fiat 71740977
    fiat 757 6135 , 7576135
    fiat 7576135
    fiat 774 3081 , 7743081
    fiat 7743081
    lancia 46408751
    lancia 597 2277 , 5972277
    lancia 5972277
    lancia 71740977
    lancia 757 6135 , 7576135
    lancia 7576135
    lancia 758 2144 , 7582144
    lancia 7582144
    lancia 774 3081 , 7743081
    lancia 7743081
    peugeot 0816.79 , 081679
    peugeot 081679
    peugeot 0818.21 , 081821
    peugeot 081821
    peugeot 0829.17 , 082917
    peugeot 082917
    peugeot 26 207 509 , 26207509
    peugeot 26207509
    peugeot 95 619 217 , 95619217
    peugeot 95619217
    zastava 95619217
    Usage numbers
    BOSCH 1 987 948 616
    BOSCH 1 987 948 928
    BOSCH 1987948616
    BOSCH 1987948928
    CONTINENTAL CTAM CT605K1
    DAYCO KTB 135
    DAYCO KTB135
    FEBI BILSTEIN 11072
    GATES K 015177
    GATES K015177
    HK RS1093
    HUTCHINSON KH16
    IPD 20-1093
    IPD 201093
    QUINTON HAZELL QBK136
    RUVILLE 5580171
    SCHAEFFLER GRUPPE 530 0203 10
    SCHAEFFLER GRUPPE 530020310
    SKF VKMA 02410
    SKF VKMA02410
    SNR KD458.13
    SNR KD45813
    TRIPLE FIVE 300 3626
    TRIPLE FIVE 3003626
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    citroËn citroËn
    fiat fiat
    lancia lancia
    peugeot peugeot
