Width 1 (mm)	19
Number of teeth 1	137
Svhc	no svhc present!

Product number: 530 0167 10

Ina Timing Belt Kit For Seat Skoda Vw Caddy Cordoba Felicia Golf Ibiza Inca Octa

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 29,03

Add to cart

Description

INA Engine Drive Solutions

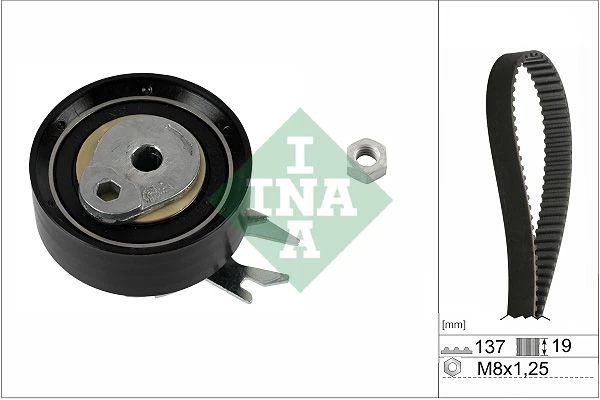

Timing Belt Kit

The INA Timing Belt Kit contains all the components needed for a precise, reliable camshaft drive. Each kit is engineered to OE specifications for maximum durability, performance, and peace of mind.

OE-grade quality Complete solution Long service life

Kit Features

Complete package: includes timing belt, tensioner, idlers, and all required hardware.
OE specification: precise tooth profile and belt length for correct timing.
High durability: reinforced belt fibres, premium bearings, and wear-resistant pulleys.
Optional water pump kits: available for full cooling system refresh during belt replacement.

When to Replace

Follow manufacturer’s schedule (commonly 60,000–100,000 miles or 5–7 years).
Signs of belt wear such as cracks, fraying, or missing teeth.
Noise from tensioner or idlers.
Coolant leak from the water pump if integrated.

Tip: Replace the belt, tensioner, idlers, and water pump together to avoid repeat labour and ensure reliability.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the service manual for timing marks and torque specs.
Remove covers & drain coolant (if water pump is included).
Release belt tension and remove the old belt, tensioner, idlers, and pump if fitted.
Install new components: Fit tensioner/idlers and water pump (if applicable) using new bolts/gaskets, torque to spec.
Fit new belt: Align all timing marks exactly before tensioning.
Reassemble & test: Rotate engine by hand two turns, check marks, start engine, and inspect for leaks/noise.

Always follow the exact procedure and torque values in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	030 109 243 D , 030109243D
audi	030 109 243 F , 030109243F
audi	030 109 243 J , 030109243J
audi	030 109 243 K , 030109243K
audi	030109243D
audi	030109243F
audi	030109243J
audi	030109243K
audi	032 109 119 F , 032109119F
audi	032 109 119 G , 032109119G
audi	032 109 119 J , 032109119J
audi	032 198 119 , 032198119
audi	032109119F
audi	032109119G
audi	032109119J
audi	032198119
audi	6K0 198 001 D , 6K0198001D
audi	6K0198001D
seat	030 109 243 D , 030109243D
seat	030 109 243 F , 030109243F
seat	030 109 243 J , 030109243J
seat	030 109 243 K , 030109243K
seat	030109243D
seat	030109243F
seat	030109243J
seat	030109243K
seat	032 109 119 F , 032109119F
seat	032 109 119 G , 032109119G
seat	032 109 119 J , 032109119J
seat	032 198 119 , 032198119
seat	032109119F
seat	032109119G
seat	032109119J
seat	032198119
seat	6K0 198 001 D , 6K0198001D
seat	6K0198001D
skoda	030 109 243 D , 030109243D
skoda	030 109 243 F , 030109243F
skoda	030 109 243 J , 030109243J
skoda	030 109 243 K , 030109243K
skoda	030109243D
skoda	030109243F
skoda	030109243J
skoda	030109243K
skoda	032 109 119 F , 032109119F
skoda	032 109 119 G , 032109119G
skoda	032 109 119 J , 032109119J
skoda	032 198 119 , 032198119
skoda	032109119F
skoda	032109119G
skoda	032109119J
skoda	032198119
skoda	6K0 198 001 D , 6K0198001D
skoda	6K0198001D
vw	030 109 243 D , 030109243D
vw	030 109 243 F , 030109243F
vw	030 109 243 J , 030109243J
vw	030 109 243 K , 030109243K
vw	030109243D
vw	030109243F
vw	030109243J
vw	030109243K
vw	032 109 119 F , 032109119F
vw	032 109 119 G , 032109119G
vw	032 109 119 J , 032109119J
vw	032 198 119 , 032198119
vw	032109119F
vw	032109119G
vw	032109119J
vw	032198119
vw	6K0 198 001 D , 6K0198001D
vw	6K0198001D

Usage numbers
BOSCH 1 987 948 046
BOSCH 1 987 948 659
BOSCH 1987948046
BOSCH 1987948659
CONTINENTAL CTAM CT847K1
DAYCO KTB 256
DAYCO KTB256
GATES K015428XS
HK RS1064
HUTCHINSON KH88
IPD 20-1064
IPD 201064
QUINTON HAZELL QBK229
RUVILLE 5542872
SCHAEFFLER GRUPPE 530 0167 10
SCHAEFFLER GRUPPE 530016710
SKF VKMA 01110
SKF VKMA01110
SNR KD457.36
SNR KD45736
TRIPLE FIVE 323 1395
TRIPLE FIVE 3231395
VAICO V10-4165
VAICO V104165

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
seat
skoda
vw

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
