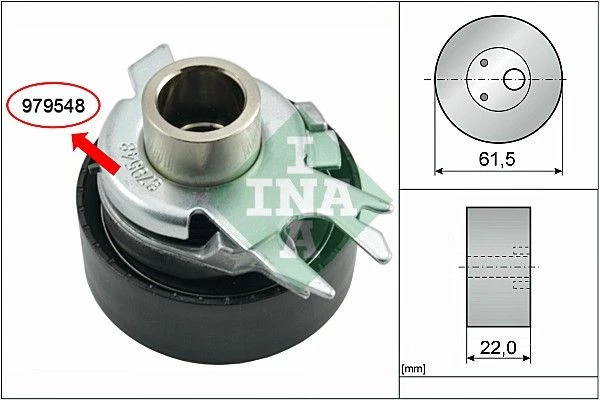

Outer diameter (mm)	61.5
Width (mm)	22
Svhc	no svhc present!

Product number: 531 0525 30

Ina Timing Belt Tensioner Pulley For Seat Vw Arosa Caddy Cordoba Fox Gol Golf Ib

Out of stock

Price incl. vat.

£ 29,03

Notify me when back in stock

Description

INA Engine Drive Components

Timing Belt Tensioner Pulley

The INA Timing Belt Tensioner Pulley ensures correct belt tension and alignment in the timing drive system. Precision bearings and OE-spec construction provide quiet operation, accurate timing, and long service life — preventing costly engine damage caused by belt failure.

OE-grade accuracy Quiet operation Long-lasting bearings

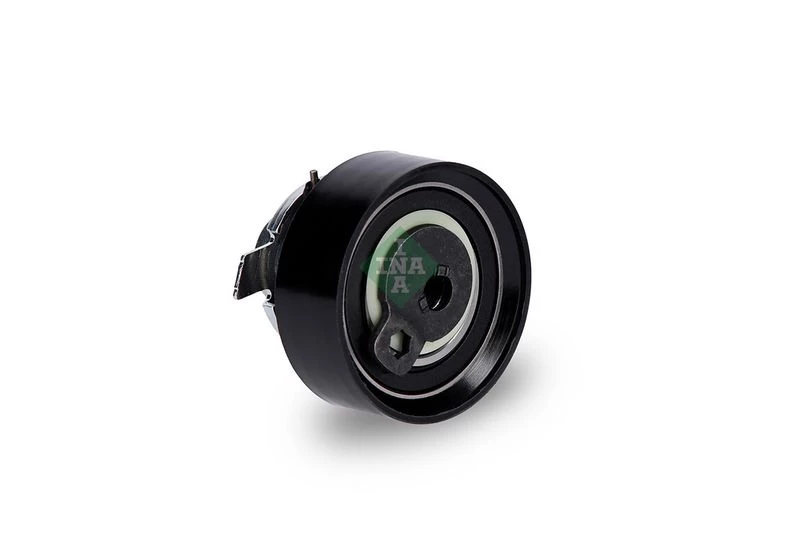

INA Timing Belt Tensioner Pulley main view

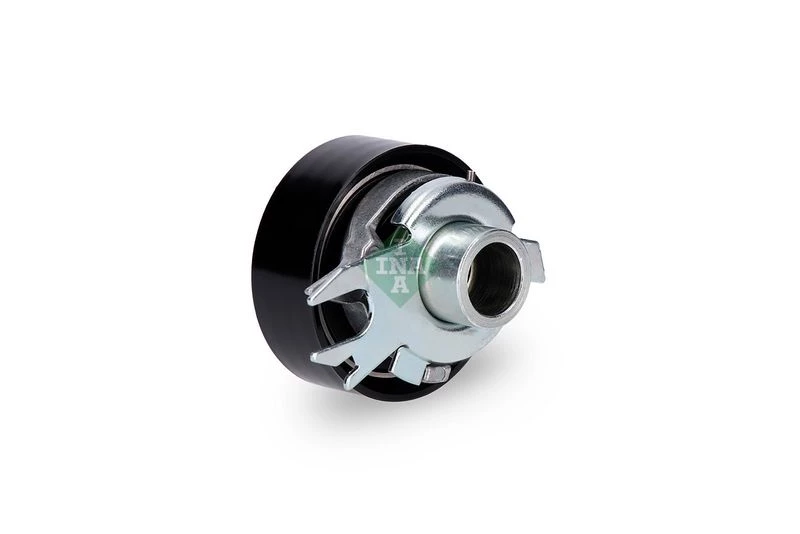

INA Timing Belt Tensioner Pulley alternative view 1

INA Timing Belt Tensioner Pulley alternative view 2

Key Features

Consistent tension: Maintains optimal belt tension for precise valve timing.
Premium bearings: Sealed to resist dirt, heat, and moisture.
OE fitment: Direct replacement with exact dimensions and mounting points.

When to Replace

At manufacturer’s timing belt change interval (often 60,000–100,000 miles or 5–7 years).
Noisy or rough pulley bearing.
Visible damage or misalignment.
Whenever replacing the timing belt for preventative maintenance.

Tip: Always replace the tensioner pulley along with the belt and idlers to avoid premature failure.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the timing diagram.
Remove covers & belt: Release tension and remove the timing belt.
Unbolt old pulley: Remove mounting bolt(s) and pulley.
Inspect mount: Clean surface and check for wear.
Install new INA pulley: Torque bolt to manufacturer’s specification.
Reinstall belt: Align timing marks and set tension according to service manual.
Test run: Rotate engine by hand, then start and check for correct operation.

Always follow the workshop manual for torque values and procedures to avoid engine damage.

Manufacturer	Productnumber
audi	030 109 243 L , 030109243L
audi	030 109 243 M , 030109243M
audi	030 109 243 N , 030109243N
audi	030 109 243 P , 030109243P
audi	030 109 243 R , 030109243R
audi	030109243L
audi	030109243M
audi	030109243N
audi	030109243P
audi	030109243R
seat	030 109 243 L , 030109243L
seat	030 109 243 M , 030109243M
seat	030 109 243 N , 030109243N
seat	030 109 243 P , 030109243P
seat	030 109 243 R , 030109243R
seat	030109243L
seat	030109243M
seat	030109243N
seat	030109243P
seat	030109243R
skoda	030 109 243 L , 030109243L
skoda	030 109 243 M , 030109243M
skoda	030 109 243 N , 030109243N
skoda	030 109 243 P , 030109243P
skoda	030 109 243 R , 030109243R
skoda	030109243L
skoda	030109243M
skoda	030109243N
skoda	030109243P
skoda	030109243R
vw	030 109 243 L , 030109243L
vw	030 109 243 M , 030109243M
vw	030 109 243 N , 030109243N
vw	030 109 243 P , 030109243P
vw	030 109 243 R , 030109243R
vw	030109243L
vw	030109243M
vw	030109243N
vw	030109243P
vw	030109243R

Usage numbers
BOSCH 1 987 949 362
BOSCH 1987949362
CONTINENTAL CTAM V55719
DAYCO ATB2248
FEBI BILSTEIN 19730
FEBI BILSTEIN 30220
GATES 7784-21054
GATES 778421054
GATES T43061
GK 641659
GMB GTB1190
HK S654
HK S654-U
HK S654U
HUTCHINSON HTG 281
HUTCHINSON HTG281
IPD 14-0654
IPD 140654
QUINTON HAZELL QTT1038
RUVILLE 55719
SCHAEFFLER GRUPPE 531 0525 30
SCHAEFFLER GRUPPE 531052530
Schaeffler INA F-550812
Schaeffler INA F-555448.06
Schaeffler INA F-570471
Schaeffler INA F550812
Schaeffler INA F55544806
Schaeffler INA F570471
SKF VKM 11107
SKF VKM11107
SNR GT357.49
SNR GT35749
SWAG 30919730
TRIPLE FIVE 321 3746
TRIPLE FIVE 3213746
TRIPLE FIVE 979548
TRIPLE FIVE Y3606
VAICO V10-2948
VAICO V102948
ZEN 12773

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
seat
vw

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
