    Schaeffler INA
    Width 1 (mm) 22
    Number of teeth 1 129
    Svhc no svhc present!
    Product number: 530 0462 30

    Ina Water Pump & Timing Belt Kit For Alfa Romeo Chrysler Fiat Ford Lancia Tata Z

    Price excl. vat.
    £ 60,49

    Description


    INA Engine Drive Solutions

    Timing Belt Kit with Water Pump

    The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

    OE-grade quality Complete solution Long service life

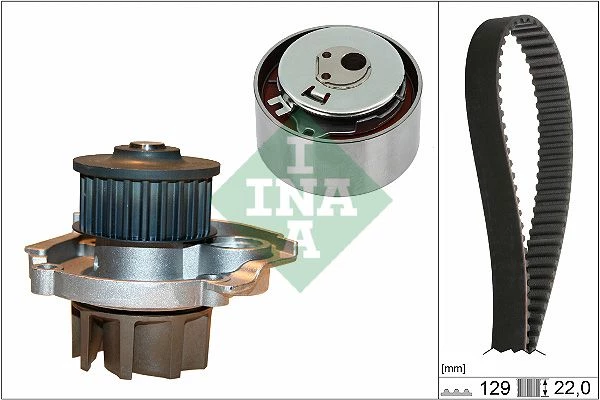

    INA timing belt kit with water pump main view
    INA timing belt kit with water pump alternative view Water pump kit view INA water pump 360° view

    Kit Features

    • Complete package: timing belt, tensioner, idlers, and high-quality water pump.
    • Perfect fit: engineered to match OE dimensions and specifications.
    • Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
    • Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

    When to Replace

    • As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
    • Signs of belt wear: cracks, fraying, missing teeth.
    • Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
    • Overheating or loss of coolant circulation efficiency.
    Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

    How to Fit (Universal Guide)

    1. Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
    2. Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
    3. Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
    4. Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
    5. Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
    6. Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
    7. Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

    Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

    Manufacturer Productnumber
    alfa romeo 55184081
    alfa romeo 55204538
    alfa romeo 55221397
    alfa romeo 55268277
    alfa romeo 55271994
    alfa romeo 71777350
    chrysler 04893386AA
    chrysler 68291856AA
    fiat 46520401
    fiat 55183497
    fiat 55204538
    fiat 55221397
    fiat 55233759
    fiat 55259635
    fiat 55268277
    fiat 55271994
    fiat 55284051
    fiat 6000100153
    fiat 71753156
    fiat 71771599
    fiat 71777350
    ford 1535439
    ford 1535462
    ford 1535466
    ford 1581511
    ford 2006487
    ford 9S51 8501 CA , 9S518501CA
    ford 9S51 8501 CB , 9S518501CB
    ford 9S51-6K255-AA , 9S516K255AA
    ford 9S51-8501-A2A , 9S518501A2A
    ford 9S516K255AA
    ford 9S518501A2A
    ford 9S518501CA
    ford 9S518501CB
    lancia 55204538
    lancia 55221397
    lancia 55268277
    lancia 55271994
    Usage numbers
    AIRTEX WPK-185202
    AIRTEX WPK185202
    BOSCH 1 987 946 467
    BOSCH 1987946467
    CONTINENTAL CTAM 1CT1115WP1
    CONTINENTAL CTAM CT1115WP1
    DAYCO KTBWP4662
    FEBI BILSTEIN 32745
    GATES KP15627XS
    GK K981201B
    GK K985258B
    HEPU PK10581
    METELLI 30-1030-2
    METELLI 3010302
    OPTIBELT KT 1447 W1
    OPTIBELT KT1447W1
    QUINTON HAZELL QBPK7170
    RUVILLE 56015701
    SCHAEFFLER GRUPPE 530 0462 30
    SCHAEFFLER GRUPPE 530046230
    Schaeffler INA 530046230
    SKF VKMC 02206
    SKF VKMC 02206-2
    SKF VKMC02206
    SKF VKMC022062
    SNR KDP458.540
    SNR KDP458540
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    alfa romeo alfa romeo
    fiat fiat
    ford ford
    lancia lancia
