Width 1 (mm)	24
Number of teeth 1	166
Svhc	no svhc present!

Product number: 530 0226 30

Ina Water Pump & Timing Belt Kit For Alfa Romeo Fiat 145 146 155 156 Barchetta L

Out of stock

Price incl. vat.

£ 141,56

Notify me when back in stock

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

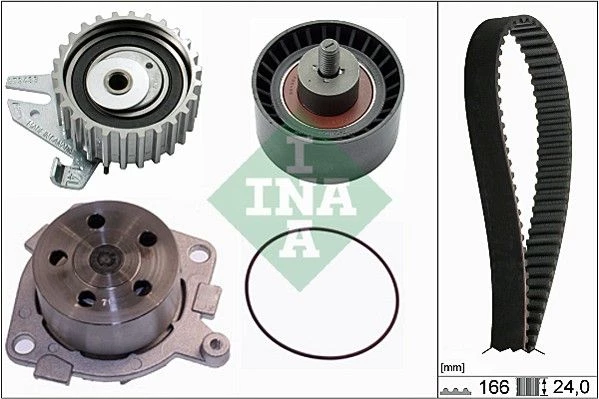

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
alfa romeo	55192240
alfa romeo	55210626
alfa romeo	60607965
alfa romeo	60607967
alfa romeo	60608898
alfa romeo	60621380
alfa romeo	60625129
alfa romeo	60652129
alfa romeo	60652477
alfa romeo	60656341
alfa romeo	60664403
alfa romeo	60671573
alfa romeo	60812624
alfa romeo	60812718
alfa romeo	60813415
alfa romeo	60814462
alfa romeo	60816231
alfa romeo	60816232
alfa romeo	71719650
fiat	55192240
fiat	55210626
fiat	60607965
fiat	60608898
fiat	60652129
fiat	60652477
fiat	60656341
fiat	60664403
fiat	60671573
fiat	60672889
fiat	60812624
fiat	60812718
fiat	60813415
fiat	60814462
fiat	60816231
fiat	60816232
fiat	71719650
fiat	71771589
fiat	71779650

Usage numbers
AIRTEX WPK-155801
AIRTEX WPK155801
BREDA LORETT KPA0589A
DAYCO KTBWP3150
GK K985287A
HEPU PK10870
HUTCHINSON KH 274WP76
HUTCHINSON KH274WP76
RUVILLE 55850711
SCHAEFFLER GRUPPE 530 0226 30
SCHAEFFLER GRUPPE 530022630

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
alfa romeo
fiat

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.

EAN code	5908281413395
Productnumber	CPW-AR-018
Brand	NTY

EAN code	5902048232168
Productnumber	RNK-AR-010
Brand	NTY

EAN code	5038206135320
Productnumber	CP3116
Brand	BGA

EAN code	4005108198037
Productnumber	531 0411 30
Brand	Schaeffler INA

EAN code	4005108307262
Productnumber	530 0223 10
Brand	Schaeffler INA

£ 19,19

£ 9,59

£ 31,19

£ 37,50

£ 67,75

£ 62,91

£ 67,75

£ 58,07

£ 50,81

Find correct parts for your car.

OR

Select Car Make Model

Ina Water Pump & Timing Belt Kit For Alfa Romeo Fiat 145 146 155 156 Barchetta L

Description

Timing Belt Kit with Water Pump

Kit Features

When to Replace

How to Fit (Universal Guide)

FAQ

Alternative products (9)

Last viewed

EAN code	4005108307286
Productnumber	530 0225 10
Brand	Schaeffler INA

EAN code	4005108307293
Productnumber	530 0226 10
Brand	Schaeffler INA

EAN code	4005108307309
Productnumber	530 0227 10
Brand	Schaeffler INA

EAN code	4005108996282
Productnumber	538 0106 10
Brand	Schaeffler INA

EAN code	4040074322710
Productnumber	100 498 0780
Brand	90

EAN code	4040074218242
Productnumber	014 139 1000
Brand	90

Monday	09:00 - 05:30
Tuesday	09:00 - 05:30
Wednesday	09:00 - 05:30
Thursday	09:00 - 05:30
Friday	09:00 - 05:30
Saturday	09:00 - 04:00
Sunday	10:00 - 04:00

Find correct parts for your car.

OR

Select Car Make Model

Ina Water Pump & Timing Belt Kit For Alfa Romeo Fiat 145 146 155 156 Barchetta L

Description

Timing Belt Kit with Water Pump

Kit Features

When to Replace

How to Fit (Universal Guide)

FAQ

Alternative products (9)

Water Pump, engine cooling

£ 19,19

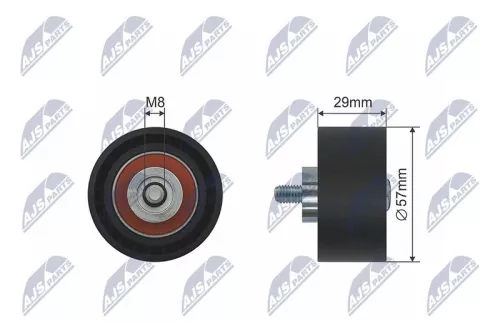

Deflection Pulley/Guide Pulley, timing belt

£ 9,59

Water Pump, engine cooling

£ 31,19

Ina Timing Belt Tensioner Pulley For Alfa Romeo Fiat Lancia 145 146 147 155 156

£ 37,50

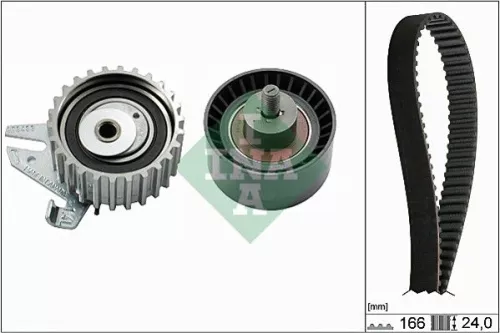

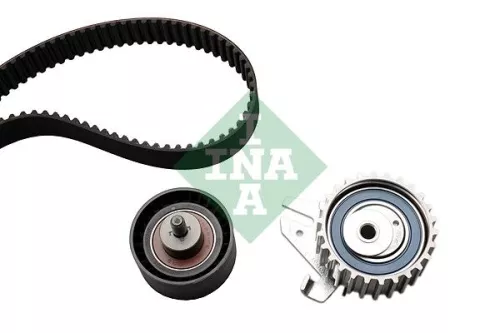

Ina Timing Belt Kit For Alfa Romeo Fiat Lancia 145 146 147 155 156 166 Barchetta
