    Schaeffler INA
    Width 1 (mm) 30
    Number of teeth 1 141
    Svhc no svhc present!
    Product number: 530 0405 30

    Ina Water Pump & Timing Belt Kit For Audi Chrysler Dodge Jeep Mitsubishi Seat Sk

    Price excl. vat.
    £ 163,34

    Description


    INA Engine Drive Solutions

    Timing Belt Kit with Water Pump

    The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

    OE-grade quality Complete solution Long service life

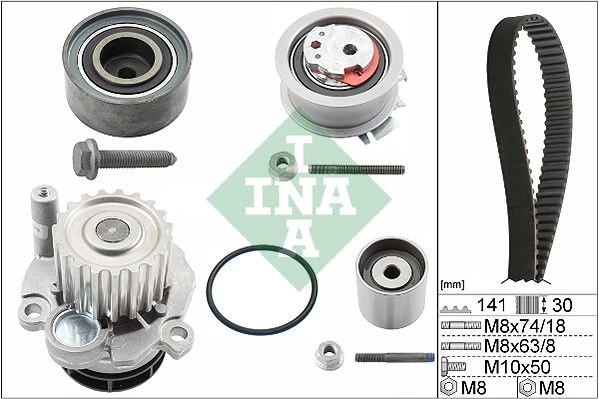

    INA timing belt kit with water pump main view
    INA timing belt kit with water pump alternative view Water pump kit view INA water pump 360° view

    Kit Features

    • Complete package: timing belt, tensioner, idlers, and high-quality water pump.
    • Perfect fit: engineered to match OE dimensions and specifications.
    • Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
    • Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

    When to Replace

    • As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
    • Signs of belt wear: cracks, fraying, missing teeth.
    • Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
    • Overheating or loss of coolant circulation efficiency.
    Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

    How to Fit (Universal Guide)

    1. Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
    2. Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
    3. Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
    4. Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
    5. Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
    6. Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
    7. Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

    Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

    Manufacturer Productnumber
    audi 038 109 244 J , 038109244J
    audi 038 109 244 N , 038109244N
    audi 038 121 011 C , 038121011C
    audi 038 121 011 CX , 038121011CX
    audi 038 121 011 D , 038121011D
    audi 038 121 011 G , 038121011G
    audi 038 121 011 H , 038121011H
    audi 038 121 011 J , 038121011J
    audi 038 121 011 JX , 038121011JX
    audi 038 121 011 K , 038121011K
    audi 038109244J
    audi 038109244N
    audi 038121011C
    audi 038121011CX
    audi 038121011D
    audi 038121011G
    audi 038121011H
    audi 038121011J
    audi 038121011JX
    audi 038121011K
    audi 03G 109 119 , 03G109119
    audi 03G 109 243 , 03G109243
    audi 03G 109 244 , 03G109244
    audi 03G 109 244 B , 03G109244B
    audi 03G 121 011 , 03G121011
    audi 03G109119
    audi 03G109243
    audi 03G109244
    audi 03G109244B
    audi 03G121011
    audi 03L 121 011 B , 03L121011B
    audi 03L 121 011 BX , 03L121011BX
    audi 03L 121 011 G , 03L121011G
    audi 03L121011B
    audi 03L121011BX
    audi 03L121011G
    chrysler 68000678AA
    chrysler 68000693AA
    chrysler 68000693AB
    chrysler 68000816AA
    chrysler 68000817AA
    dodge 6 8000 678AA , 68000678AA
    dodge 6 8000 693AA , 68000693AA
    dodge 6 8000 693AB , 68000693AB
    dodge 6 8000 816AA , 68000816AA
    dodge 6 8000 817AA , 68000817AA
    dodge 68000678AA
    dodge 68000693AA
    dodge 68000693AB
    dodge 68000816AA
    dodge 68000817AA
    jeep 6 8000 678AA , 68000678AA
    jeep 6 8000 693AA , 68000693AA
    jeep 6 8000 693AB , 68000693AB
    jeep 6 8000 816AA , 68000816AA
    jeep 6 8000 817AA , 68000817AA
    jeep 68000678AA
    jeep 68000693AA
    jeep 68000693AB
    jeep 68000816AA
    jeep 68000817AA
    mitsubishi MN980100
    mitsubishi MN980101
    mitsubishi MN980104
    mitsubishi MN980107
    mitsubishi MN980134
    mitsubishi MN980266
    seat 038 109 244 J , 038109244J
    seat 038 109 244 N , 038109244N
    seat 038 121 011 C , 038121011C
    seat 038 121 011 CX , 038121011CX
    seat 038 121 011 D , 038121011D
    seat 038 121 011 G , 038121011G
    seat 038 121 011 H , 038121011H
    seat 038 121 011 J , 038121011J
    seat 038 121 011 JX , 038121011JX
    seat 038 121 011 K , 038121011K
    seat 038109244J
    seat 038109244N
    seat 038121011C
    seat 038121011CX
    seat 038121011D
    seat 038121011G
    seat 038121011H
    seat 038121011J
    seat 038121011JX
    seat 038121011K
    seat 03G 109 119 , 03G109119
    seat 03G 109 243 , 03G109243
    seat 03G 109 244 , 03G109244
    seat 03G 109 244 B , 03G109244B
    seat 03G 121 011 , 03G121011
    seat 03G109119
    seat 03G109243
    seat 03G109244
    seat 03G109244B
    seat 03G121011
    seat 03L 121 011 B , 03L121011B
    seat 03L 121 011 BX , 03L121011BX
    seat 03L 121 011 G , 03L121011G
    seat 03L121011B
    seat 03L121011BX
    seat 03L121011G
    skoda 038 109 244 J , 038109244J
    skoda 038 109 244 N , 038109244N
    skoda 038 121 011 C , 038121011C
    skoda 038 121 011 CX , 038121011CX
    skoda 038 121 011 D , 038121011D
    skoda 038 121 011 G , 038121011G
    skoda 038 121 011 H , 038121011H
    skoda 038 121 011 J , 038121011J
    skoda 038 121 011 JX , 038121011JX
    skoda 038 121 011 K , 038121011K
    skoda 038109244J
    skoda 038109244N
    skoda 038121011C
    skoda 038121011CX
    skoda 038121011D
    skoda 038121011G
    skoda 038121011H
    skoda 038121011J
    skoda 038121011JX
    skoda 038121011K
    skoda 03G 109 119 , 03G109119
    skoda 03G 109 243 , 03G109243
    skoda 03G 109 244 , 03G109244
    skoda 03G 109 244 B , 03G109244B
    skoda 03G 121 011 , 03G121011
    skoda 03G109119
    skoda 03G109243
    skoda 03G109244
    skoda 03G109244B
    skoda 03G121011
    skoda 03L 121 011 B , 03L121011B
    skoda 03L 121 011 BX , 03L121011BX
    skoda 03L 121 011 G , 03L121011G
    skoda 03L121011B
    skoda 03L121011BX
    skoda 03L121011G
    vw 038 109 244 J , 038109244J
    vw 038 109 244 N , 038109244N
    vw 038 121 011 C , 038121011C
    vw 038 121 011 CX , 038121011CX
    vw 038 121 011 D , 038121011D
    vw 038 121 011 G , 038121011G
    vw 038 121 011 H , 038121011H
    vw 038 121 011 J , 038121011J
    vw 038 121 011 JX , 038121011JX
    vw 038 121 011 K , 038121011K
    vw 038109244J
    vw 038109244N
    vw 038121011C
    vw 038121011CX
    vw 038121011D
    vw 038121011G
    vw 038121011H
    vw 038121011J
    vw 038121011JX
    vw 038121011K
    vw 03G 109 119 , 03G109119
    vw 03G 109 243 , 03G109243
    vw 03G 109 244 , 03G109244
    vw 03G 109 244 B , 03G109244B
    vw 03G 121 011 , 03G121011
    vw 03G109119
    vw 03G109243
    vw 03G109244
    vw 03G109244B
    vw 03G121011
    vw 03L 121 011 B , 03L121011B
    vw 03L 121 011 BX , 03L121011BX
    vw 03L 121 011 G , 03L121011G
    vw 03L121011B
    vw 03L121011BX
    vw 03L121011G
    Usage numbers
    AIRTEX WPK-199803
    AIRTEX WPK199803
    BOSCH 1 987 946 418
    BOSCH 1 987 946 471
    BOSCH 1987946418
    BOSCH 1987946471
    CONTINENTAL CTAM CT1051WP1
    CONTINENTAL CTAM CT1051WP3
    DAYCO KTBWP4410
    GATES KP15607XS-1
    GATES KP15607XS-2
    GATES KP15607XS1
    GATES KP15607XS2
    GK K980251B
    HEPU PK05511
    HEPU PK05696
    HEPU PK06541
    METELLI 30-1355-3
    METELLI 3013553
    RUVILLE 55766701
    Saleri SIL K1PA1048A
    SCHAEFFLER GRUPPE 530 0405 30
    SCHAEFFLER GRUPPE 530040530
    Schaeffler INA 530040530
    SKF VKMC01255-1
    SKF VKMC012551
    SNR KDP457.500
    SNR KDP457500
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
