Width 1 (mm)	23
Number of teeth 1	150
Svhc	no svhc present!

Product number: 530 0344 30

Ina Water Pump & Timing Belt Kit For Audi Seat Skoda Vw A3 Alhambra Bora Golf Le

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 113,73

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

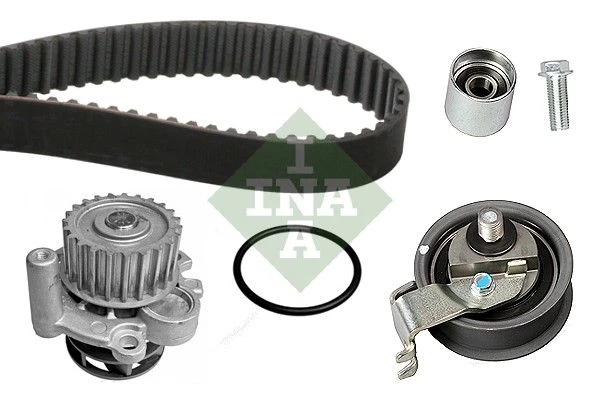

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	068 121 011 E , 068121011E
audi	068121011E
audi	06A 121 011 C , 06A121011C
audi	06A 121 011 E , 06A121011E
audi	06A 121 011 F , 06A121011F
audi	06A 121 011 G , 06A121011G
audi	06A 121 011 H , 06A121011H
audi	06A 121 011 HV , 06A121011HV
audi	06A 121 011 HX , 06A121011HX
audi	06A 121 011 L , 06A121011L
audi	06A 121 011 LV , 06A121011LV
audi	06A 121 011 LX , 06A121011LX
audi	06A 121 011 Q , 06A121011Q
audi	06A 121 011 T , 06A121011T
audi	06A 121 011 TX , 06A121011TX
audi	06A 121 012 , 06A121012
audi	06A 121 012 B , 06A121012B
audi	06A 121 012 D , 06A121012D
audi	06A 121 012 E , 06A121012E
audi	06A 121 012 G , 06A121012G
audi	06A 121 012 GX , 06A121012GX
audi	06A 121 012 X , 06A121012X
audi	06A121011C
audi	06A121011E
audi	06A121011F
audi	06A121011G
audi	06A121011H
audi	06A121011HV
audi	06A121011HX
audi	06A121011L
audi	06A121011LV
audi	06A121011LX
audi	06A121011Q
audi	06A121011T
audi	06A121011TX
audi	06A121012
audi	06A121012B
audi	06A121012D
audi	06A121012E
audi	06A121012G
audi	06A121012GX
audi	06A121012X
audi	06B 109 119 A , 06B109119A
audi	06B 109 119 B , 06B109119B
audi	06B 109 119 F , 06B109119F
audi	06B 109 119 M , 06B109119M
audi	06B 109 119 N , 06B109119N
audi	06B 109 243 , 06B109243
audi	06B 109 244 , 06B109244
audi	06B109119A
audi	06B109119B
audi	06B109119F
audi	06B109119M
audi	06B109119N
audi	06B109243
audi	06B109244
seat	068 121 011 E , 068121011E
seat	068121011E
seat	06A 121 011 C , 06A121011C
seat	06A 121 011 E , 06A121011E
seat	06A 121 011 F , 06A121011F
seat	06A 121 011 G , 06A121011G
seat	06A 121 011 H , 06A121011H
seat	06A 121 011 HV , 06A121011HV
seat	06A 121 011 HX , 06A121011HX
seat	06A 121 011 L , 06A121011L
seat	06A 121 011 LV , 06A121011LV
seat	06A 121 011 LX , 06A121011LX
seat	06A 121 011 Q , 06A121011Q
seat	06A 121 011 T , 06A121011T
seat	06A 121 011 TX , 06A121011TX
seat	06A 121 012 , 06A121012
seat	06A 121 012 B , 06A121012B
seat	06A 121 012 D , 06A121012D
seat	06A 121 012 E , 06A121012E
seat	06A 121 012 G , 06A121012G
seat	06A 121 012 GX , 06A121012GX
seat	06A 121 012 X , 06A121012X
seat	06A121011C
seat	06A121011E
seat	06A121011F
seat	06A121011G
seat	06A121011H
seat	06A121011HV
seat	06A121011HX
seat	06A121011L
seat	06A121011LV
seat	06A121011LX
seat	06A121011Q
seat	06A121011T
seat	06A121011TX
seat	06A121012
seat	06A121012B
seat	06A121012D
seat	06A121012E
seat	06A121012G
seat	06A121012GX
seat	06A121012X
seat	06B 109 119 A , 06B109119A
seat	06B 109 119 B , 06B109119B
seat	06B 109 119 F , 06B109119F
seat	06B 109 119 M , 06B109119M
seat	06B 109 119 N , 06B109119N
seat	06B 109 243 , 06B109243
seat	06B 109 244 , 06B109244
seat	06B109119A
seat	06B109119B
seat	06B109119F
seat	06B109119M
seat	06B109119N
seat	06B109243
seat	06B109244
skoda	068 121 011 E , 068121011E
skoda	068121011E
skoda	06A 121 011 C , 06A121011C
skoda	06A 121 011 E , 06A121011E
skoda	06A 121 011 F , 06A121011F
skoda	06A 121 011 G , 06A121011G
skoda	06A 121 011 H , 06A121011H
skoda	06A 121 011 HV , 06A121011HV
skoda	06A 121 011 HX , 06A121011HX
skoda	06A 121 011 L , 06A121011L
skoda	06A 121 011 LV , 06A121011LV
skoda	06A 121 011 LX , 06A121011LX
skoda	06A 121 011 Q , 06A121011Q
skoda	06A 121 011 T , 06A121011T
skoda	06A 121 011 TX , 06A121011TX
skoda	06A 121 012 , 06A121012
skoda	06A 121 012 B , 06A121012B
skoda	06A 121 012 D , 06A121012D
skoda	06A 121 012 E , 06A121012E
skoda	06A 121 012 G , 06A121012G
skoda	06A 121 012 GX , 06A121012GX
skoda	06A 121 012 X , 06A121012X
skoda	06A121011C
skoda	06A121011E
skoda	06A121011F
skoda	06A121011G
skoda	06A121011H
skoda	06A121011HV
skoda	06A121011HX
skoda	06A121011L
skoda	06A121011LV
skoda	06A121011LX
skoda	06A121011Q
skoda	06A121011T
skoda	06A121011TX
skoda	06A121012
skoda	06A121012B
skoda	06A121012D
skoda	06A121012E
skoda	06A121012G
skoda	06A121012GX
skoda	06A121012X
skoda	06B 109 119 A , 06B109119A
skoda	06B 109 119 B , 06B109119B
skoda	06B 109 119 F , 06B109119F
skoda	06B 109 119 M , 06B109119M
skoda	06B 109 119 N , 06B109119N
skoda	06B 109 243 , 06B109243
skoda	06B 109 244 , 06B109244
skoda	06B109119A
skoda	06B109119B
skoda	06B109119F
skoda	06B109119M
skoda	06B109119N
skoda	06B109243
skoda	06B109244
vw	068 121 011 E , 068121011E
vw	068121011E
vw	06A 121 011 C , 06A121011C
vw	06A 121 011 E , 06A121011E
vw	06A 121 011 F , 06A121011F
vw	06A 121 011 G , 06A121011G
vw	06A 121 011 H , 06A121011H
vw	06A 121 011 HV , 06A121011HV
vw	06A 121 011 HX , 06A121011HX
vw	06A 121 011 L , 06A121011L
vw	06A 121 011 LV , 06A121011LV
vw	06A 121 011 LX , 06A121011LX
vw	06A 121 011 Q , 06A121011Q
vw	06A 121 011 T , 06A121011T
vw	06A 121 011 TX , 06A121011TX
vw	06A 121 012 , 06A121012
vw	06A 121 012 B , 06A121012B
vw	06A 121 012 D , 06A121012D
vw	06A 121 012 E , 06A121012E
vw	06A 121 012 G , 06A121012G
vw	06A 121 012 GX , 06A121012GX
vw	06A 121 012 X , 06A121012X
vw	06A121011C
vw	06A121011E
vw	06A121011F
vw	06A121011G
vw	06A121011H
vw	06A121011HV
vw	06A121011HX
vw	06A121011L
vw	06A121011LV
vw	06A121011LX
vw	06A121011Q
vw	06A121011T
vw	06A121011TX
vw	06A121012
vw	06A121012B
vw	06A121012D
vw	06A121012E
vw	06A121012G
vw	06A121012GX
vw	06A121012X
vw	06B 109 119 A , 06B109119A
vw	06B 109 119 B , 06B109119B
vw	06B 109 119 F , 06B109119F
vw	06B 109 119 M , 06B109119M
vw	06B 109 119 N , 06B109119N
vw	06B 109 243 , 06B109243
vw	06B 109 244 , 06B109244
vw	06B109119A
vw	06B109119B
vw	06B109119F
vw	06B109119M
vw	06B109119N
vw	06B109243
vw	06B109244

Usage numbers
AIRTEX WPK-937703
AIRTEX WPK937703
BOSCH 1 987 946 498
BOSCH 1987946498
CONTINENTAL CTAM CT909WP4
DAYCO KTBWP4831
GATES KP15491XS
HEPU PK05471
RUVILLE 55765701
SCHAEFFLER GRUPPE 530 0344 30
SCHAEFFLER GRUPPE 530034430
Schaeffler INA 530034430
SKF VKMC 01935
SKF VKMC01935
