    Schaeffler INA
    Width 1 (mm) 25.4
    Number of teeth 1 134
    Svhc no svhc present!
    Product number: 530 0379 30

    Ina Water Pump & Timing Belt Kit For Citroën Citroën (Df-psa) Peugeot Peugeot (D

    Price excl. vat.
    £ 78,64

    Description


    INA Engine Drive Solutions

    Timing Belt Kit with Water Pump

    The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

    OE-grade quality Complete solution Long service life

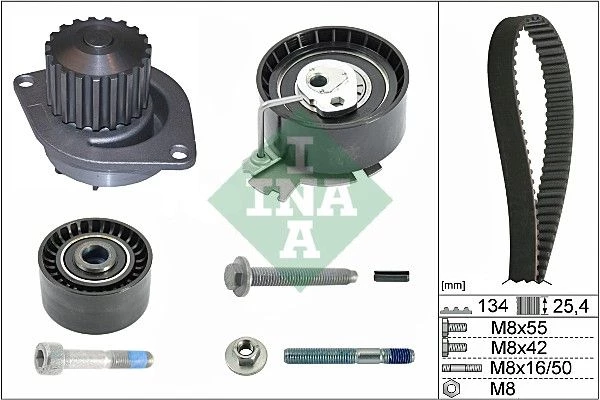

    INA timing belt kit with water pump main view
    INA timing belt kit with water pump alternative view Water pump kit view INA water pump 360° view

    Kit Features

    • Complete package: timing belt, tensioner, idlers, and high-quality water pump.
    • Perfect fit: engineered to match OE dimensions and specifications.
    • Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
    • Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

    When to Replace

    • As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
    • Signs of belt wear: cracks, fraying, missing teeth.
    • Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
    • Overheating or loss of coolant circulation efficiency.
    Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

    How to Fit (Universal Guide)

    1. Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
    2. Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
    3. Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
    4. Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
    5. Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
    6. Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
    7. Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

    Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

    Manufacturer Productnumber
    citroËn 0816.E0
    citroËn 0816.H6 , 0816H6
    citroËn 0816E0
    citroËn 0816H6
    citroËn 0829.A0 , 0829A0
    citroËn 0829.A1 , 0829A1
    citroËn 0829.C8 , 0829C8
    citroËn 0829.F6 , 0829F6
    citroËn 0829A0
    citroËn 0829A1
    citroËn 0829C8
    citroËn 0829F6
    citroËn 0830.62 , 083062
    citroËn 083062
    citroËn 1201.A2 , 1201A2
    citroËn 1201.E5
    citroËn 1201.H4 , 1201H4
    citroËn 1201A2
    citroËn 1201E5
    citroËn 1201H4
    citroËn 16 094 172 80 , 1609417280
    citroËn 16 095 258 80 , 1609525880
    citroËn 16 107 934 80 , 1610793480
    citroËn 16 436 396 80 , 1643639680
    citroËn 1609417280
    citroËn 1609525880
    citroËn 1610793480
    citroËn 1643639680
    citroËn 96 379 143 80 , 9637914380
    citroËn 96 398 421 80 , 9639842180
    citroËn 96 434 143 , 96434143
    citroËn 96 434 147 80 , 9643414780
    citroËn 96 484 732 80 , 9648473280
    citroËn 96 487 043 80 , 9648704380
    citroËn 9637914380
    citroËn 9639842180
    citroËn 96434143
    citroËn 9643414780
    citroËn 9648473280
    citroËn 9648704380
    citroËn 98 293 047 80 , 9829304780
    citroËn 9829304780
    peugeot 0816.E0
    peugeot 0816.H6 , 0816H6
    peugeot 0816E0
    peugeot 0816H6
    peugeot 0829.A0 , 0829A0
    peugeot 0829.A1 , 0829A1
    peugeot 0829.C8 , 0829C8
    peugeot 0829.F6 , 0829F6
    peugeot 0829A0
    peugeot 0829A1
    peugeot 0829C8
    peugeot 0829F6
    peugeot 0830.62 , 083062
    peugeot 083062
    peugeot 1201.A2 , 1201A2
    peugeot 1201.E5
    peugeot 1201.H4 , 1201H4
    peugeot 1201A2
    peugeot 1201E5
    peugeot 1201H4
    peugeot 16 094 172 80 , 1609417280
    peugeot 16 095 258 80 , 1609525880
    peugeot 16 107 934 80 , 1610793480
    peugeot 16 436 396 80 , 1643639680
    peugeot 1609417280
    peugeot 1609525880
    peugeot 1610793480
    peugeot 1643639680
    peugeot 96 379 143 80 , 9637914380
    peugeot 96 398 421 80 , 9639842180
    peugeot 96 434 143 , 96434143
    peugeot 96 434 147 80 , 9643414780
    peugeot 96 484 732 80 , 9648473280
    peugeot 96 487 043 80 , 9648704380
    peugeot 9637914380
    peugeot 9639842180
    peugeot 96434143
    peugeot 9643414780
    peugeot 9648473280
    peugeot 9648704380
    peugeot 98 293 047 80 , 9829304780
    peugeot 9829304780
    citroËn (df-psa) 0816.H6 , 0816H6
    citroËn (df-psa) 0816H6
    citroËn (df-psa) 0829.C8 , 0829C8
    citroËn (df-psa) 0829C8
    citroËn (df-psa) 0830.62 , 083062
    citroËn (df-psa) 083062
    citroËn (df-psa) 1201.E5
    citroËn (df-psa) 1201E5
    peugeot (df-psa) 0816.H6 , 0816H6
    peugeot (df-psa) 0816H6
    peugeot (df-psa) 0829.C8 , 0829C8
    peugeot (df-psa) 0829C8
    peugeot (df-psa) 0830.62 , 083062
    peugeot (df-psa) 083062
    peugeot (df-psa) 1201.E5
    peugeot (df-psa) 1201E5
    peugeot (df-psa) ZQ00628780
    peugeot (df-psa) ZQ00628880
    Usage numbers
    AIRTEX WPK-160001
    AIRTEX WPK160001
    BOSCH 1987948711
    CONTINENTAL CTAM CT1065WP2
    GATES KP25581XS
    GK K986891B
    HEPU PK08911
    QUINTON HAZELL QBPK6800
    RUVILLE 56638701
    SKF VKMC03256
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    citroËn citroËn
    peugeot peugeot
