    Schaeffler INA
    Width 1 (mm) 25.4
    Number of teeth 1 136
    Svhc no svhc present!
    Product number: 530 0096 31

    Ina Water Pump & Timing Belt Kit For Citroën Fiat Peugeot 205 306 406 806 Berlin

    Out of stock

    Price incl. vat.
    £ 94,37

    Description


    INA Engine Drive Solutions

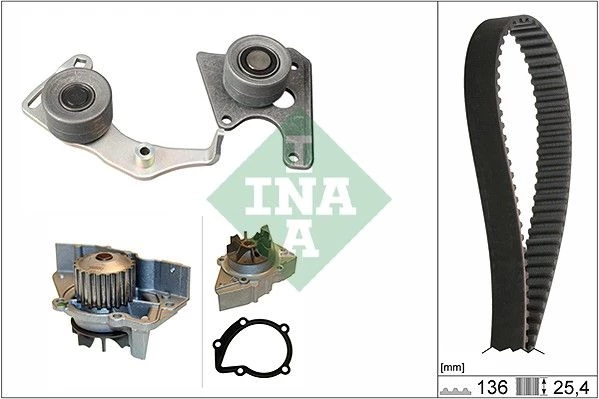

    Timing Belt Kit with Water Pump

    The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

    OE-grade quality Complete solution Long service life
    INA timing belt kit with water pump main view
    INA timing belt kit with water pump alternative view Water pump kit view INA water pump 360° view

    Kit Features

    • Complete package: timing belt, tensioner, idlers, and high-quality water pump.
    • Perfect fit: engineered to match OE dimensions and specifications.
    • Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
    • Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

    When to Replace

    • As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
    • Signs of belt wear: cracks, fraying, missing teeth.
    • Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
    • Overheating or loss of coolant circulation efficiency.
    Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

    How to Fit (Universal Guide)

    1. Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
    2. Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
    3. Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
    4. Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
    5. Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
    6. Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
    7. Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

    Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

    Manufacturer Productnumber
    citroËn 00 000 829 33 , 0000082933
    citroËn 0000082933
    citroËn 0816.22 , 081622
    citroËn 0816.46 , 081646
    citroËn 0816.58 , 081658
    citroËn 081622
    citroËn 081646
    citroËn 081658
    citroËn 0829.33 , 082933
    citroËn 082933
    citroËn 0830.13 , 083013
    citroËn 083013
    citroËn 1201.A8 , 1201A8
    citroËn 1201A8
    citroËn 93 010 362 , 93010362
    citroËn 93 010 364 , 93010364
    citroËn 93 510 091 , 93510091
    citroËn 93010362
    citroËn 93010364
    citroËn 93510091
    citroËn 95 159 233 , 95159233
    citroËn 95159233
    citroËn 96 142 525 , 96142525
    citroËn 96 142 597 , 96142597
    citroËn 96 159 233 , 96159233
    citroËn 96 171 886 , 96171886
    citroËn 96142525
    citroËn 96142597
    citroËn 96159233
    citroËn 96171886
    fiat 71739137
    fiat 71739919
    fiat 94008165
    fiat 9400816589
    fiat 9615923380
    fiat 9617188680
    fiat 9627667988
    peugeot 00 000 829 33 , 0000082933
    peugeot 0000082933
    peugeot 0816.22 , 081622
    peugeot 0816.46 , 081646
    peugeot 0816.58 , 081658
    peugeot 081622
    peugeot 081646
    peugeot 081658
    peugeot 0829.33 , 082933
    peugeot 082933
    peugeot 0830.13 , 083013
    peugeot 083013
    peugeot 1201.A8 , 1201A8
    peugeot 1201A8
    peugeot 93 010 362 , 93010362
    peugeot 93 010 364 , 93010364
    peugeot 93 510 091 , 93510091
    peugeot 93010362
    peugeot 93010364
    peugeot 93510091
    peugeot 95 159 233 , 95159233
    peugeot 95159233
    peugeot 96 142 525 , 96142525
    peugeot 96 142 597 , 96142597
    peugeot 96 159 233 , 96159233
    peugeot 96 171 886 , 96171886
    peugeot 96142525
    peugeot 96142597
    peugeot 96159233
    peugeot 96171886
    Usage numbers
    AIRTEX WPK-157901
    AIRTEX WPK157901
    BOSCH 1 987 946 436
    BOSCH 1987946436
    CONTINENTAL CTAM CT1061WP3
    DAYCO KTBWP1151
    FEBI BILSTEIN 34640
    GATES KP25049XS
    GRAF KP911-1
    GRAF KP9111
    HEPU PK09610
    METELLI 30-0911-1
    METELLI 3009111
    RUVILLE 56622704
    SCHAEFFLER GRUPPE 530 0096 31
    SCHAEFFLER GRUPPE 530009631
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    citroËn citroËn
    fiat fiat
    peugeot peugeot

    FAQ


    You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.


    Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.


    Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.


    Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.


    Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
    Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.


    The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
