Width 1 (mm)	25.4
Number of teeth 1	153
Svhc	no svhc present!

Product number: 530 0471 30

Ina Water Pump & Timing Belt Kit For Citroën Peugeot 307 308 308 Cc 308 Sw 407 4

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 157,29

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

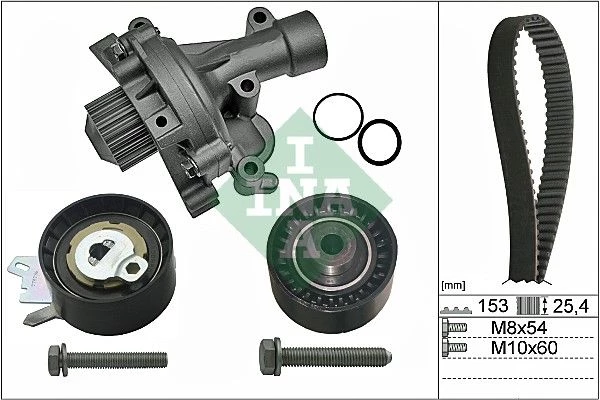

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
citroËn	0816.A1 , 0816A1
citroËn	0816.C2 , 0816C2
citroËn	0816.F4 , 0816F4
citroËn	0816.G4 , 0816G4
citroËn	0816A1
citroËn	0816C2
citroËn	0816F4
citroËn	0816G4
citroËn	0829.A9 , 0829A9
citroËn	0829A9
citroËn	0830.42 , 083042
citroËn	0830.73 , 083073
citroËn	083042
citroËn	083073
citroËn	1201.F5 , 1201F5
citroËn	1201.G4 , 1201G4
citroËn	1201.G5 , 1201G5
citroËn	1201.J1 , 1201J1
citroËn	1201.J2 , 1201J2
citroËn	1201.K1 , 1201K1
citroËn	1201.L2 , 1201L2
citroËn	1201F5
citroËn	1201G4
citroËn	1201G5
citroËn	1201J1
citroËn	1201J2
citroËn	1201K1
citroËn	1201L2
citroËn	16 069 319 80 , 1606931980
citroËn	16 094 174 80 , 1609417480
citroËn	16 095 255 80 , 1609525580
citroËn	1606931980
citroËn	1609417480
citroËn	1609525580
citroËn	96 327 221 , 96327221
citroËn	96 327 221 80 , 9632722180
citroËn	96 350 076 , 96350076
citroËn	96 350 076 80 , 9635007680
citroËn	96 350 077 80 , 9635007780
citroËn	96 372 405 80 , 9637240580
citroËn	96 476 100 80 , 9647610080
citroËn	96 531 371 80 , 9653137180
citroËn	96327221
citroËn	9632722180
citroËn	96350076
citroËn	9635007680
citroËn	9635007780
citroËn	9637240580
citroËn	9647610080
citroËn	9653137180
peugeot	0816.A1 , 0816A1
peugeot	0816.C2 , 0816C2
peugeot	0816.F4 , 0816F4
peugeot	0816.G4 , 0816G4
peugeot	0816A1
peugeot	0816C2
peugeot	0816F4
peugeot	0816G4
peugeot	0829.A9 , 0829A9
peugeot	0829A9
peugeot	0830.42 , 083042
peugeot	0830.73 , 083073
peugeot	083042
peugeot	083073
peugeot	1201.F5 , 1201F5
peugeot	1201.G4 , 1201G4
peugeot	1201.G5 , 1201G5
peugeot	1201.J1 , 1201J1
peugeot	1201.J2 , 1201J2
peugeot	1201.K1 , 1201K1
peugeot	1201.L2 , 1201L2
peugeot	1201F5
peugeot	1201G4
peugeot	1201G5
peugeot	1201J1
peugeot	1201J2
peugeot	1201K1
peugeot	1201L2
peugeot	16 069 319 80 , 1606931980
peugeot	16 094 174 80 , 1609417480
peugeot	16 095 255 80 , 1609525580
peugeot	1606931980
peugeot	1609417480
peugeot	1609525580
peugeot	96 327 221 , 96327221
peugeot	96 327 221 80 , 9632722180
peugeot	96 350 076 , 96350076
peugeot	96 350 076 80 , 9635007680
peugeot	96 350 077 80 , 9635007780
peugeot	96 372 405 80 , 9637240580
peugeot	96 476 100 80 , 9647610080
peugeot	96 531 371 80 , 9653137180
peugeot	96327221
peugeot	9632722180
peugeot	96350076
peugeot	9635007680
peugeot	9635007780
peugeot	9637240580
peugeot	9647610080
peugeot	9653137180

Usage numbers
BOSCH 1 987 946 442
BOSCH 1987946442
CONTINENTAL CTAM CT1110WP1
GATES KP25608XS
GK K986897A
HEPU PK08970
RUVILLE 55977701
SCHAEFFLER GRUPPE 530 0471 30
SCHAEFFLER GRUPPE 530047130
SKF VKMC 03263
SKF VKMC03263
SNR KDP459.560
SNR KDP459560

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
citroËn
peugeot
