Width 1 (mm)	19
Number of teeth 1	128
Svhc	no svhc present!

Product number: 530 0586 30

Ina Water Pump & Timing Belt Kit For Seat Vw Cordoba Golf Ibiza Jetta Polo Vento

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	3

Price excl. vat.

£ 48,39

Add to cart

Description

INA Engine Drive Solutions

Timing Belt Kit with Water Pump

The INA Timing Belt Kit with Water Pump provides a complete, OE-quality solution for precise camshaft timing and reliable engine cooling. All components are designed to work together for maximum service life and performance.

OE-grade quality Complete solution Long service life

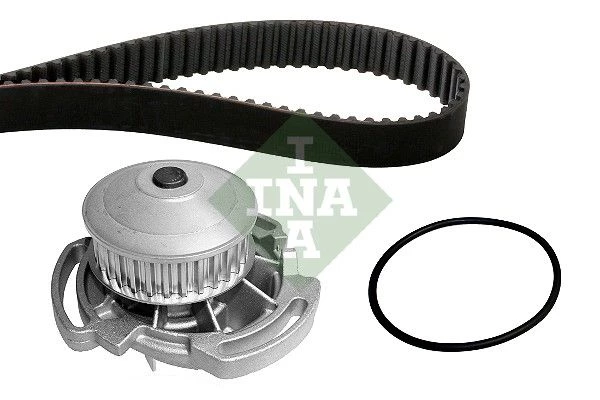

INA timing belt kit with water pump main view

INA timing belt kit with water pump alternative view

Kit Features

Complete package: timing belt, tensioner, idlers, and high-quality water pump.
Perfect fit: engineered to match OE dimensions and specifications.
Durable materials: high-strength belt fibers, precision bearings, and corrosion-resistant pump housing.
Optimised cooling: water pump designed for efficient coolant circulation and long bearing life.

When to Replace

As per manufacturer’s interval (commonly every 60,000–100,000 miles or 5–7 years).
Signs of belt wear: cracks, fraying, missing teeth.
Coolant leaks from the water pump or unusual noise from pump/tensioner bearings.
Overheating or loss of coolant circulation efficiency.

Tip: Always replace the timing belt and water pump together — this avoids duplicate labour and ensures system reliability.

How to Fit (Universal Guide)

Preparation: Park safely, engine cold, disconnect battery. Refer to the service manual for belt routing and timing marks.
Drain coolant: Drain system into a clean container for proper disposal or reuse if in good condition.
Remove covers & belt: Remove timing covers, release belt tension, and remove the old belt.
Remove old pump & components: Unbolt water pump, idlers, and tensioner. Clean all gasket surfaces.
Install new pump & components: Fit new pump with supplied gasket/sealant, torque bolts as per spec. Install new tensioner/idlers.
Fit new belt: Align timing marks, route belt, and tension correctly according to manual.
Reassemble & test: Refit covers, refill coolant, rotate engine by hand two revolutions, check marks. Start engine and check for leaks or noises.

Always follow the specific procedure, torque settings, and timing mark alignment in your vehicle’s workshop manual.

Manufacturer	Productnumber
audi	030 121 004 A , 030121004A
audi	030 121 004 B , 030121004B
audi	030 121 005 H , 030121005H
audi	030 121 005 L , 030121005L
audi	030 121 005 LV , 030121005LV
audi	030 121 005 LX , 030121005LX
audi	030121004A
audi	030121004B
audi	030121005H
audi	030121005L
audi	030121005LV
audi	030121005LX
seat	030 109 119 A , 030109119A
seat	030 109 119 B , 030109119B
seat	030 109 119 E , 030109119E
seat	030 121 004 A , 030121004A
seat	030 121 004 B , 030121004B
seat	030 121 005 H , 030121005H
seat	030 121 005 L , 030121005L
seat	030 121 005 LV , 030121005LV
seat	030 121 005 LX , 030121005LX
seat	030109119A
seat	030109119B
seat	030109119E
seat	030121004A
seat	030121004B
seat	030121005H
seat	030121005L
seat	030121005LV
seat	030121005LX
skoda	030 121 004 A , 030121004A
skoda	030 121 004 B , 030121004B
skoda	030 121 005 H , 030121005H
skoda	030 121 005 L , 030121005L
skoda	030 121 005 LV , 030121005LV
skoda	030 121 005 LX , 030121005LX
skoda	030121004A
skoda	030121004B
skoda	030121005H
skoda	030121005L
skoda	030121005LV
skoda	030121005LX
vw	030 109 119 A , 030109119A
vw	030 109 119 B , 030109119B
vw	030 109 119 E , 030109119E
vw	030 121 004 A , 030121004A
vw	030 121 004 B , 030121004B
vw	030 121 005 H , 030121005H
vw	030 121 005 L , 030121005L
vw	030 121 005 LV , 030121005LV
vw	030 121 005 LX , 030121005LX
vw	030109119A
vw	030109119B
vw	030109119E
vw	030121004A
vw	030121004B
vw	030121005H
vw	030121005L
vw	030121005LV
vw	030121005LX

Usage numbers
AIRTEX WPK-139701
AIRTEX WPK139701
BOSCH 1 987 948 500
BOSCH 1 987 948 802
BOSCH 1987948500
BOSCH 1987948802
CONTINENTAL CTAM CT629WP1
GATES KP15311
HEPU PK05330
RUVILLE 50000701
Saleri SIL K1PA846A
SCHAEFFLER GRUPPE 530 0586 30
SCHAEFFLER GRUPPE 530058630
Schaeffler INA 530058630
SKF VKMC 01103
SKF VKMC01103

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
seat
vw

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
