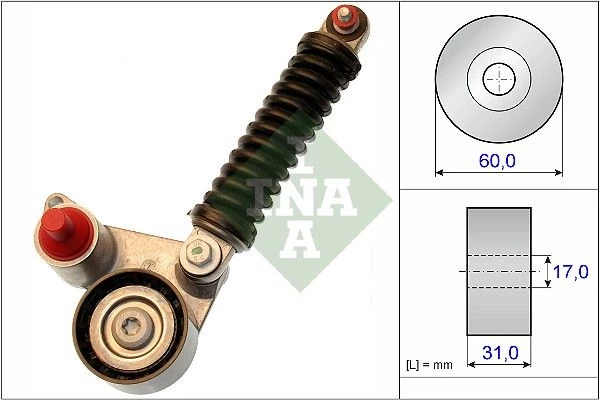

Outer diameter (mm)	60
Width (mm)	31
Svhc	no svhc present!

Product number: 533 0107 10

Ina Belt Tensioner V-ribbed Belt For Suzuki Grand Vitara

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	2

Price excl. vat.

£ 110,10

Add to cart

Description

INA Belt Drive Components

V‑Ribbed Belt Tensioner

For the front‑end auxiliary drive (FEAD). Maintains constant belt tension for quiet, efficient power to the alternator, A/C compressor and other accessories.

OE‑grade quality Low noise Long service life

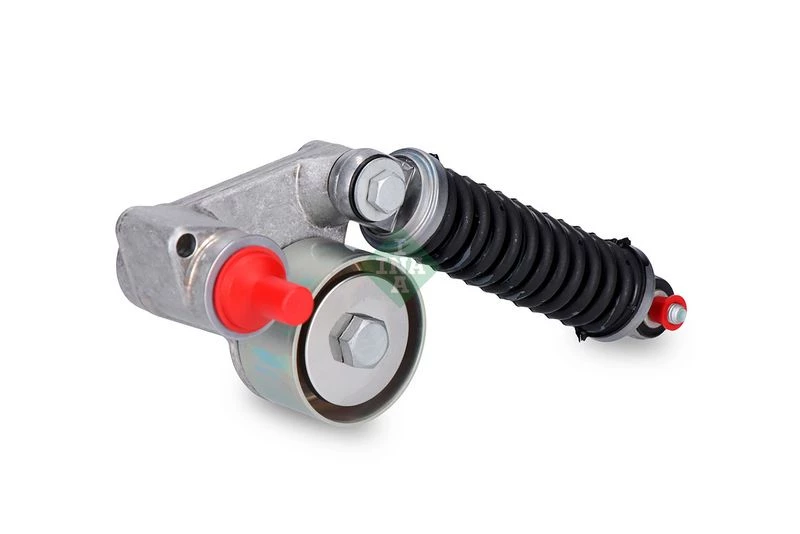

INA V‑ribbed belt tensioner 360 angle view

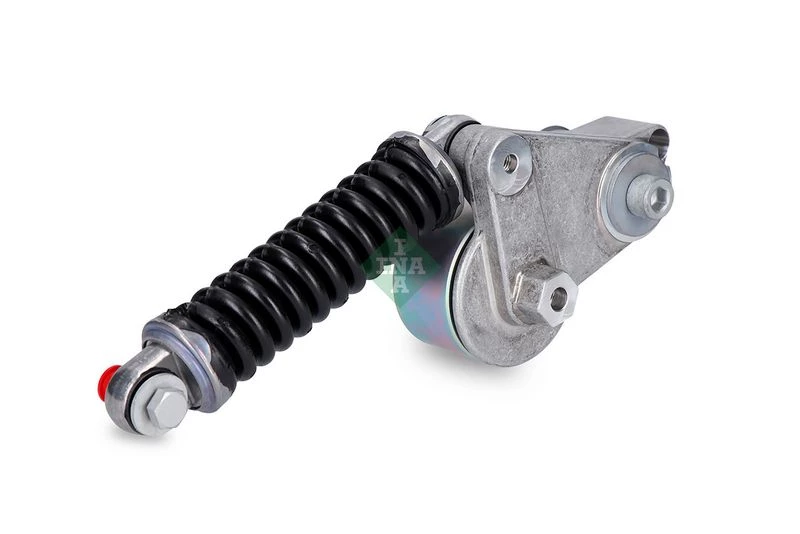

INA V‑ribbed belt tensioner additional view

When to Change

Noise: chirping/squeal at start‑up or with A/C load.
Visual wear: cracked or glazed belt, frayed ribs, rubber dust.
Arm movement: tensioner arm flutters or sits off‑center.
Bearing condition: pulley feels rough or has play when spun by hand (engine off).
Contamination: oil/coolant on belt or pulley surfaces.

Service tip: Replace the tensioner whenever fitting a new FEAD/serpentine belt to avoid repeat labour and early failures.

How to Fit (Universal Guide)

Preparation. Park safely, engine cold. Photograph the belt routing. Tools: serpentine belt tool/long ratchet, socket set, torque wrench.
Release tension & remove belt. Rotate the tensioner using its square hole or hex boss; slip the belt off a smooth pulley and release slowly. Remove the belt fully.
Remove old tensioner. Unbolt the unit. Keep any spacers/dowels. Spin other pulleys to check for noise or play.
Install new INA tensioner. Position, hand‑start bolts, then torque to the vehicle manufacturer’s spec. The pulley must spin freely and clear nearby parts.
Refit belt. Route per your photo/diagram, leave the easiest pulley for last. Pre‑load the tensioner, seat the belt on all ribs, release slowly.
Final checks. Turn the crankshaft by hand two full turns; re‑check tracking and alignment. Start engine; observe the tensioner arm and listen for noise.

Always follow the vehicle manufacturer’s procedures, torque values and safety guidance.

Manufacturer	Productnumber
suzuki	17540-67JA0 , 1754067JA0
suzuki	17540-67JA1 , 1754067JA1
suzuki	17540-67JA2 , 1754067JA2
suzuki	1754067JA0
suzuki	1754067JA1
suzuki	1754067JA2

Usage numbers
BREDA LORETT TOA5435
DAYCO APV3193
FEBI BILSTEIN 32400
GATES 7808-21664
GATES 780821664
GATES T39264
GMB GHAT-238
GMB GHAT238
HERTH+BUSS JAKOPARTS J1148022
HUTCHINSON T2056
JAPANPARTS TS-801
JAPANPARTS TS801
KAVO PARTS DTP-8518
KAVO PARTS DTP8518
OPTIMAL 0-N1804S
OPTIMAL 0N1804S
RUVILLE 57709
SCHAEFFLER GRUPPE 533 0107 10
SCHAEFFLER GRUPPE 533010710
SKF VKM66020
SNR GA355.22
SNR GA35522
SWAG 84 93 2400
SWAG 84932400
TRIPLE FIVE 03.81076
TRIPLE FIVE 0381076
TRISCAN 8641 693001
TRISCAN 8641693001

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
