Outer diameter (mm)	60
Width (mm)	24
Svhc	no svhc present!

Product number: 531 0317 10

Ina Timing Belt Tensioner Pulley For Audi Seat Skoda Vw Vw (Svw) A2 Altea Altea

In stock

Shipping method	Delivery time	Stock
Shipping	11-9-2025	2

Price excl. vat.

£ 26,61

Add to cart

Description

INA Engine Drive Components

Timing Belt Tensioner Pulley

The INA Timing Belt Tensioner Pulley ensures correct belt tension and alignment in the timing drive system. Precision bearings and OE-spec construction provide quiet operation, accurate timing, and long service life — preventing costly engine damage caused by belt failure.

OE-grade accuracy Quiet operation Long-lasting bearings

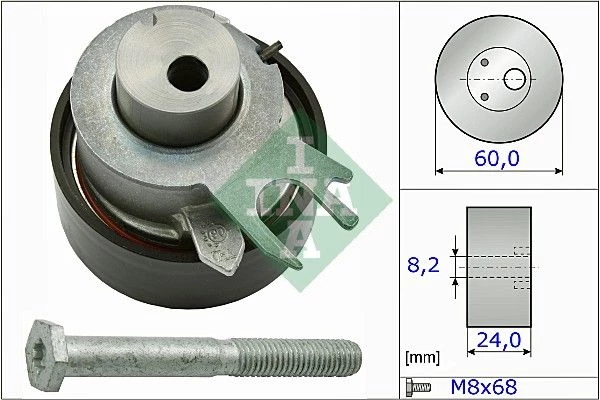

INA Timing Belt Tensioner Pulley main view

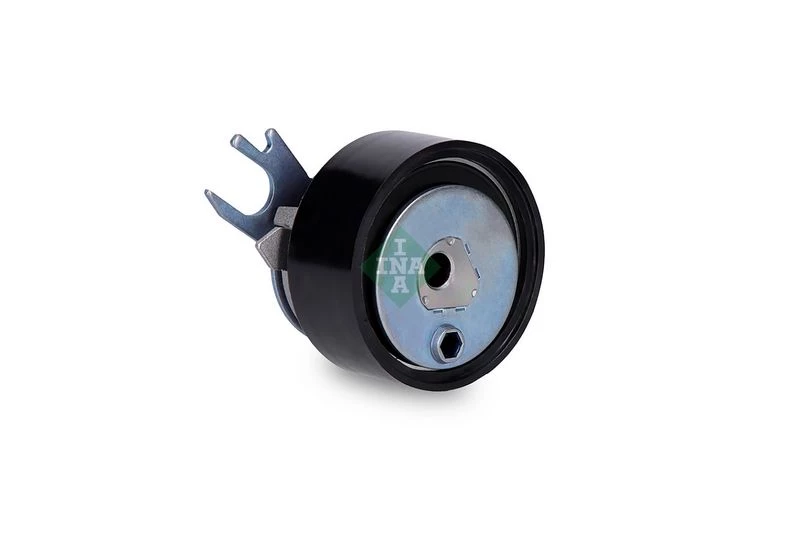

INA Timing Belt Tensioner Pulley alternative view 1

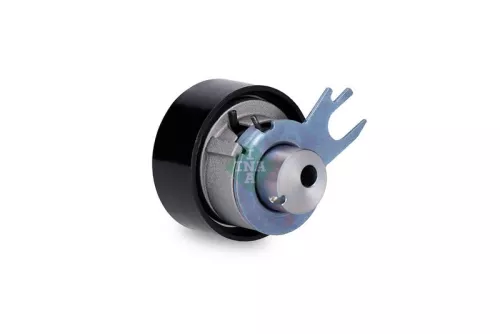

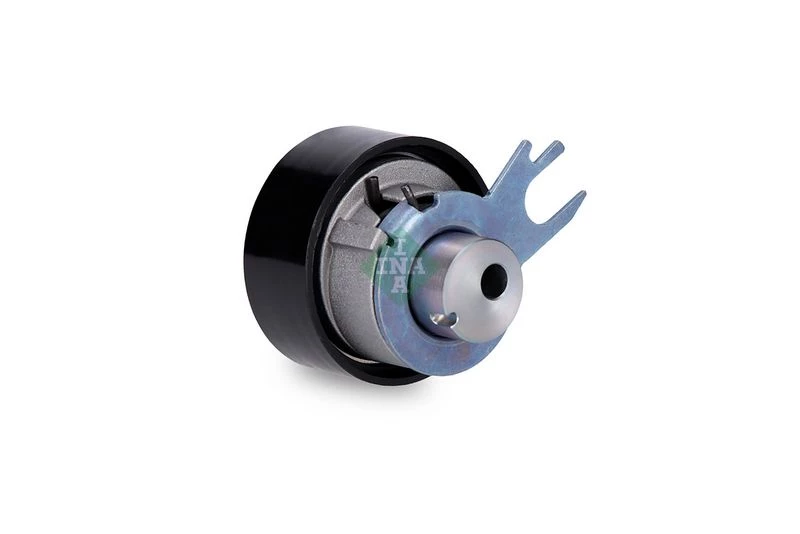

INA Timing Belt Tensioner Pulley alternative view 2

Key Features

Consistent tension: Maintains optimal belt tension for precise valve timing.
Premium bearings: Sealed to resist dirt, heat, and moisture.
OE fitment: Direct replacement with exact dimensions and mounting points.

When to Replace

At manufacturer’s timing belt change interval (often 60,000–100,000 miles or 5–7 years).
Noisy or rough pulley bearing.
Visible damage or misalignment.
Whenever replacing the timing belt for preventative maintenance.

Tip: Always replace the tensioner pulley along with the belt and idlers to avoid premature failure.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Refer to the timing diagram.
Remove covers & belt: Release tension and remove the timing belt.
Unbolt old pulley: Remove mounting bolt(s) and pulley.
Inspect mount: Clean surface and check for wear.
Install new INA pulley: Torque bolt to manufacturer’s specification.
Reinstall belt: Align timing marks and set tension according to service manual.
Test run: Rotate engine by hand, then start and check for correct operation.

Always follow the workshop manual for torque values and procedures to avoid engine damage.

Manufacturer	Productnumber
audi	036 109 243 AB , 036109243AB
audi	036 109 243 AD , 036109243AD
audi	036 109 243 AF , 036109243AF
audi	036 109 243 E , 036109243E
audi	036 109 243 L , 036109243L
audi	036 109 243 R , 036109243R
audi	036109243AB
audi	036109243AD
audi	036109243AF
audi	036109243E
audi	036109243L
audi	036109243R
seat	036 109 243 AB , 036109243AB
seat	036 109 243 AD , 036109243AD
seat	036 109 243 AF , 036109243AF
seat	036 109 243 E , 036109243E
seat	036 109 243 L , 036109243L
seat	036 109 243 R , 036109243R
seat	036109243AB
seat	036109243AD
seat	036109243AF
seat	036109243E
seat	036109243L
seat	036109243R
skoda	036 109 243 AB , 036109243AB
skoda	036 109 243 AD , 036109243AD
skoda	036 109 243 AF , 036109243AF
skoda	036 109 243 E , 036109243E
skoda	036 109 243 L , 036109243L
skoda	036 109 243 R , 036109243R
skoda	036109243AB
skoda	036109243AD
skoda	036109243AF
skoda	036109243E
skoda	036109243L
skoda	036109243R
vw	036 109 243 AB , 036109243AB
vw	036 109 243 AD , 036109243AD
vw	036 109 243 AF , 036109243AF
vw	036 109 243 E , 036109243E
vw	036 109 243 L , 036109243L
vw	036 109 243 R , 036109243R
vw	036109243AB
vw	036109243AD
vw	036109243AF
vw	036109243E
vw	036109243L
vw	036109243R
vw (svw)	036 109 243 AF , 036109243AF
vw (svw)	036109243AF

Usage numbers
AIRTEX TP-0049
AIRTEX TP0049
AUTEX 641147
BOSCH 1 987 949 850
BOSCH 1987949850
CONTINENTAL CTAM V55456
DAYCO ATB2194
FEBI BILSTEIN 11274
GATES 7784-21123
GATES 778421123
GATES T43149
GATES Z80013
GK 641147
GMB GTB0130
HK S142
HUTCHINSON HTG160
IPD 14-0142
IPD 140142
LEMFÖRDER 2505401
METELLI 28-0014
METELLI 280014
OPTIBELT 146ST
QUINTON HAZELL GT357.25
QUINTON HAZELL GT35725
QUINTON HAZELL QTT873
ROULUNDS RUBBER BT1173
RUVILLE 55456
SCHAEFFLER GRUPPE 531 0317 10
SCHAEFFLER GRUPPE 531031710
Schaeffler INA F-228059.01
Schaeffler INA F-228059.02
Schaeffler INA F-228059.03
Schaeffler INA F-228059.06
Schaeffler INA F-228059.1
Schaeffler INA F-228059.2
Schaeffler INA F-228059.3
Schaeffler INA F-231221
Schaeffler INA F-231221.01
Schaeffler INA F-231221.1
Schaeffler INA F-624873
Schaeffler INA F22805901
Schaeffler INA F22805902
Schaeffler INA F22805903
Schaeffler INA F22805906
Schaeffler INA F2280591
Schaeffler INA F2280592
Schaeffler INA F2280593
Schaeffler INA F231221
Schaeffler INA F23122101
Schaeffler INA F2312211
Schaeffler INA F624873
SKF ATB2194F
SKF VKM 11120
SKF VKM11120
SNR GT357.25
SNR GT35725
SPIDAN 0.066456
SPIDAN 0066456
SWAG 30030049
TRIPLE FIVE 0210-11-05456P
TRIPLE FIVE 02101105456P
TRIPLE FIVE 03.769
TRIPLE FIVE 03769
TRIPLE FIVE 320 3275
TRIPLE FIVE 3203275
TRIPLE FIVE MBI-22250
TRIPLE FIVE MBI22250
TRIPLE FIVE PBT8544
TRIPLE FIVE RKT1782
TRIPLE FIVE TD20143
TRIPLE FIVE Y3431
TRUCKTEC AUTOMOTIVE 07.12.110
TRUCKTEC AUTOMOTIVE 0712110
TRW KCG208
VAICO V10-0464
VAICO V100464

Manufacturer	Model	Version	Engine code	Construction type	Construction start	Construction end	Pk	Power kw
audi
seat
skoda
vw

FAQ

You can enter your Vehicle Registration Number on our homepage or manually select your vehicle details. We will then filter the parts that match your vehicle. Always double-check the Product Properties section to confirm correct fitment.

Yes! We’re constantly expanding our product range and catalog. If you can’t find the part you’re looking for, please contact us. We work with several manufacturers and may be able to source the part for you.

Many product pages include a Fitment Details tab with additional information. If you still have questions, feel free to use our message service — we’re happy to help.

Parts do not come with additional items like fitting kits or gaskets unless it is clearly specified in the Part Details section of the product page.

Brake Discs: Most standard brake discs are priced individually, but for safety reasons, they must be purchased in pairs. When required, we will automatically set the quantity to 2 in your basket.
Brake Pads: These are sold as a set (either front or rear), so one box is enough for two discs.

The Compatibility Table can be found on each product page, usually below the main product description. Look for a tab or heading labeled Compatibility.
