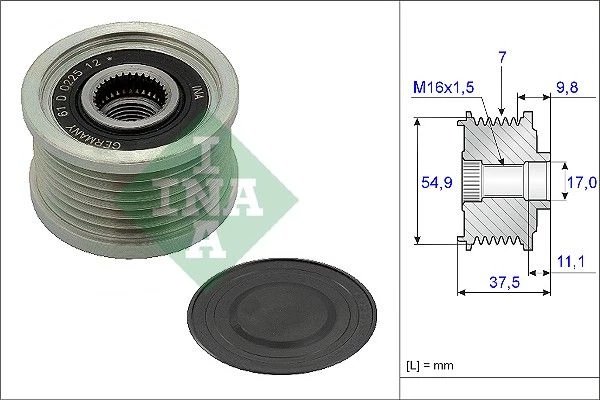

Supplementary article/info 2	requires special tools for mounting
Width (mm)	37.5
Ø1/ Ø2 (mm)	54,9/17,0
For manufacturer number	f-560671.xx
Number of grooves	7
Svhc	no svhc present!
Distance to first groove (mm)	9.9

Product number: 535 0235 10

Ina Overrunning Alternator Clutch Pulley For Fiat Fuso (Mitsubishi) Iveco Mitsubishi Tems

In stock

Shipping method	Delivery time	Stock
Shipping	19-8-2025	3

Price excl. vat.

£ 27,77

Add to cart

Description

INA Belt Drive Technology

Overrunning Alternator Pulley (OAP)

The INA OAP uses a one-way clutch so the alternator can “free-wheel” during sudden belt deceleration. This calms belt vibration, reduces noise at shut-down/gear changes, and protects the tensioner and belt for longer life.

Lower NVH Stabilised FEAD OE-grade reliability

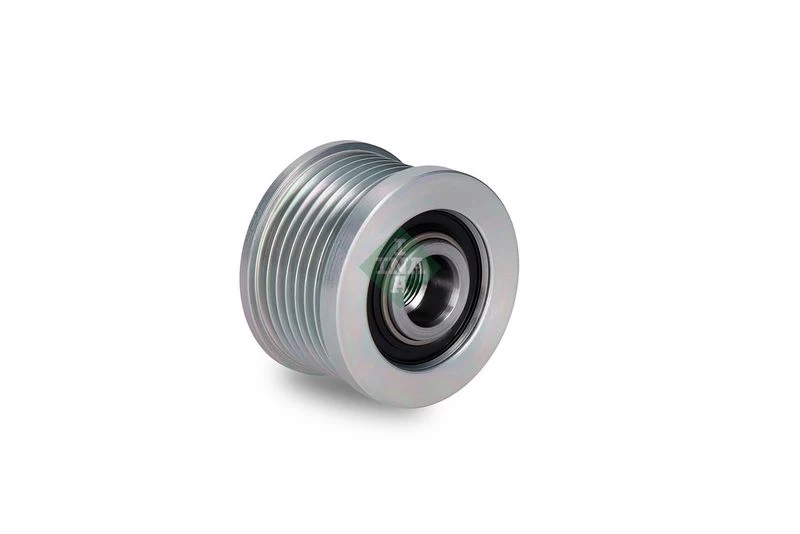

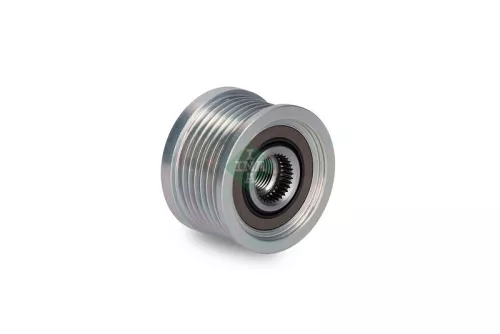

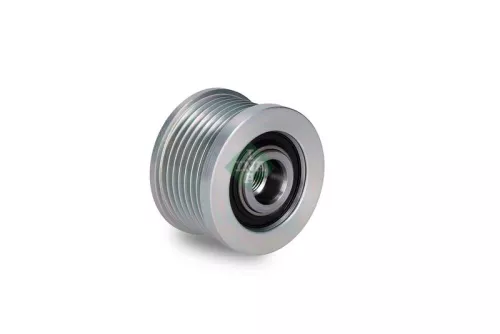

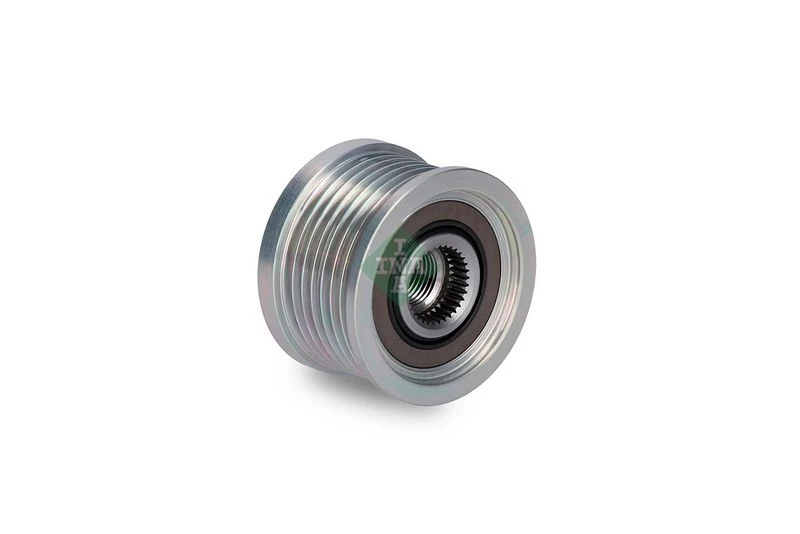

INA Overrunning Alternator Pulley main view

What It Does

One-way clutch: allows the alternator rotor to coast when the belt slows suddenly (overrun), reducing belt snap and chirp.
Smoother accessory drive: helps the tensioner work within its normal range and limits oscillation.
Longer component life: less stress on belt, tensioner, alternator bearings, and other FEAD parts.

When to Replace

Chirping at engine shut-down or during shifts; rumble/squeal from alternator area.
Tensioner arm “flutters” or sits off-center at idle; belt tracking issues.
Alternator charging faults due to belt slip or pulley clutch seizure.
Excessive play/roughness when the pulley is checked off-vehicle.

Important: Fit the same type the vehicle was built with. Don’t swap an OAP for an OAD (decoupler) or a solid pulley — they are not interchangeable.

How to Fit (Universal Guide)

Preparation: Engine cold, battery disconnected. Photograph belt routing. Remove the FEAD belt.
Lock the rotor: Use the correct alternator holding tool (insert in the rotor shaft) and a matching OAP removal socket for the pulley splines/hex.
Remove old pulley: Hold the rotor steady; loosen the pulley in the correct direction (usually standard thread, but verify OE info). Remove any dust cap/shroud.
Check & clean: Inspect alternator shaft and threads; clean and lightly degrease. Do not grease the belt or pulley grooves.
Install new INA OAP: Thread on by hand to avoid cross-threading. Hold rotor and torque the pulley to the manufacturer’s spec. Refit the protective cap.
Refit belt & test: Route belt, ensure all ribs seat. Start engine, watch tensioner movement, listen for noise, and confirm charging performance.

Always follow the exact torque values and procedures in the workshop manual. Use the proper INA/REPXPERT special tools to avoid alternator damage.

Quick Function Check (Off-Vehicle)

Pulley should rotate freely in the overrun direction and lock in the drive direction.
Any grinding, binding, or free-wheeling both ways = replace.

Manufacturer	Productnumber
fiat	5801580938
fiat	5802170709
fiat	5802170711
fiat	5802217842
fiat	5802407293
fiat	77368246
iveco	42579335
iveco	5801580938
iveco	5802170709
iveco	5802170711
iveco	5802217842
nissan	23100-HJ00A , 23100HJ00A
nissan	23100-HJ00B , 23100HJ00B
nissan	23100-HJ00C , 23100HJ00C
nissan	23100-HJ00D , 23100HJ00D
nissan	23100-HJ00E , 23100HJ00E
nissan	23100-HJ00F , 23100HJ00F
nissan	23100-HJ00G , 23100HJ00G
nissan	23100-HJ00I , 23100HJ00I
nissan	23100-HJ00J , 23100HJ00J
nissan	23100-HJ00K , 23100HJ00K
nissan	23100HJ00A
nissan	23100HJ00B
nissan	23100HJ00C
nissan	23100HJ00D
nissan	23100HJ00E
nissan	23100HJ00F
nissan	23100HJ00G
nissan	23100HJ00I
nissan	23100HJ00J
nissan	23100HJ00K
nissan	23151-HJ00A , 23151HJ00A
nissan	23151-HJ00B , 23151HJ00B
nissan	23151-HJ00C , 23151HJ00C
nissan	23151HJ00A
nissan	23151HJ00B
nissan	23151HJ00C
fuso (mitsubishi)	ME230740
fuso (mitsubishi)	ME230741
fuso (mitsubishi)	ME230742
fuso (mitsubishi)	ME230743
fuso (mitsubishi)	ME230746
fuso (mitsubishi)	MK667722
fuso (mitsubishi)	MK667723
fuso (mitsubishi)	MK667724
fuso (mitsubishi)	MK667725
fuso (mitsubishi)	QC000244
case ih	5802 266 117 , 5802266117
case ih	5802266117

Usage numbers
AS-PL AFP0085
BOSCH 0 124 525 216
BOSCH 0 124 525 565
BOSCH 0 124 525 566
BOSCH 0 124 555 063
BOSCH 0 124 555 107
BOSCH 0 124 555 602
BOSCH 0 124 555 603
BOSCH 0 124 655 091
BOSCH 0 124 655 511
BOSCH 0 124 655 512
BOSCH 0 125 811 043
BOSCH 0 125 811 044
BOSCH 0 125 811 137
BOSCH 0 125 811 138
BOSCH 0124525216
BOSCH 0124525565
BOSCH 0124525566
BOSCH 0124555063
BOSCH 0124555107
BOSCH 0124555602
BOSCH 0124555603
BOSCH 0124655091
BOSCH 0124655511
BOSCH 0124655512
BOSCH 0125811043
BOSCH 0125811044
BOSCH 0125811137
BOSCH 0125811138
BOSCH F 000 BL0 622
BOSCH F 000 BL0 6D0
BOSCH F 000 BL0 6M5
BOSCH F 000 BL0 6M6
BOSCH F 000 BL0 7 CA
BOSCH F 000 BL0 7 CB
BOSCH F 000 BL0 7 CC
BOSCH F 000 BL0 7 CD
BOSCH F 000 BL0 7 CE
BOSCH F 000 BL0 7 CF
BOSCH F 000 BL0 7CV
BOSCH F 00M 599 502
BOSCH F 00M 599 822
BOSCH F 00M 992 740
BOSCH F 00M 992 774
BOSCH F000BL0622
BOSCH F000BL06D0
BOSCH F000BL06M5
BOSCH F000BL06M6
BOSCH F000BL07CA
BOSCH F000BL07CB
BOSCH F000BL07CC
BOSCH F000BL07CD
BOSCH F000BL07CE
BOSCH F000BL07CF
BOSCH F000BL07CV
BOSCH F00M599502
BOSCH F00M599822
BOSCH F00M992740
BOSCH F00M992774
DAYCO ALP2472
DAYCO TL439AA
GATES OAP7264
IPD 15-3799
IPD 153799
REMY 10536363
RUVILLE 59994
SCHAEFFLER GRUPPE 535 0235 10
SCHAEFFLER GRUPPE 535023510
Schaeffler INA F-560671
Schaeffler INA F-560671.02
Schaeffler INA F560671
Schaeffler INA F56067102
TRIPLE FIVE 3 5477 0
TRIPLE FIVE 3 5477 1
TRIPLE FIVE 333701
TRIPLE FIVE 354770
TRIPLE FIVE 354771
ZEN 5599
